Test Description

The number below refers to the step number on the diagnostic table. See Fig 1.

1. 4

   If the battery positive voltage and ground circuits of the DLC are functioning properly. The malfunction must be due to the scan tool.

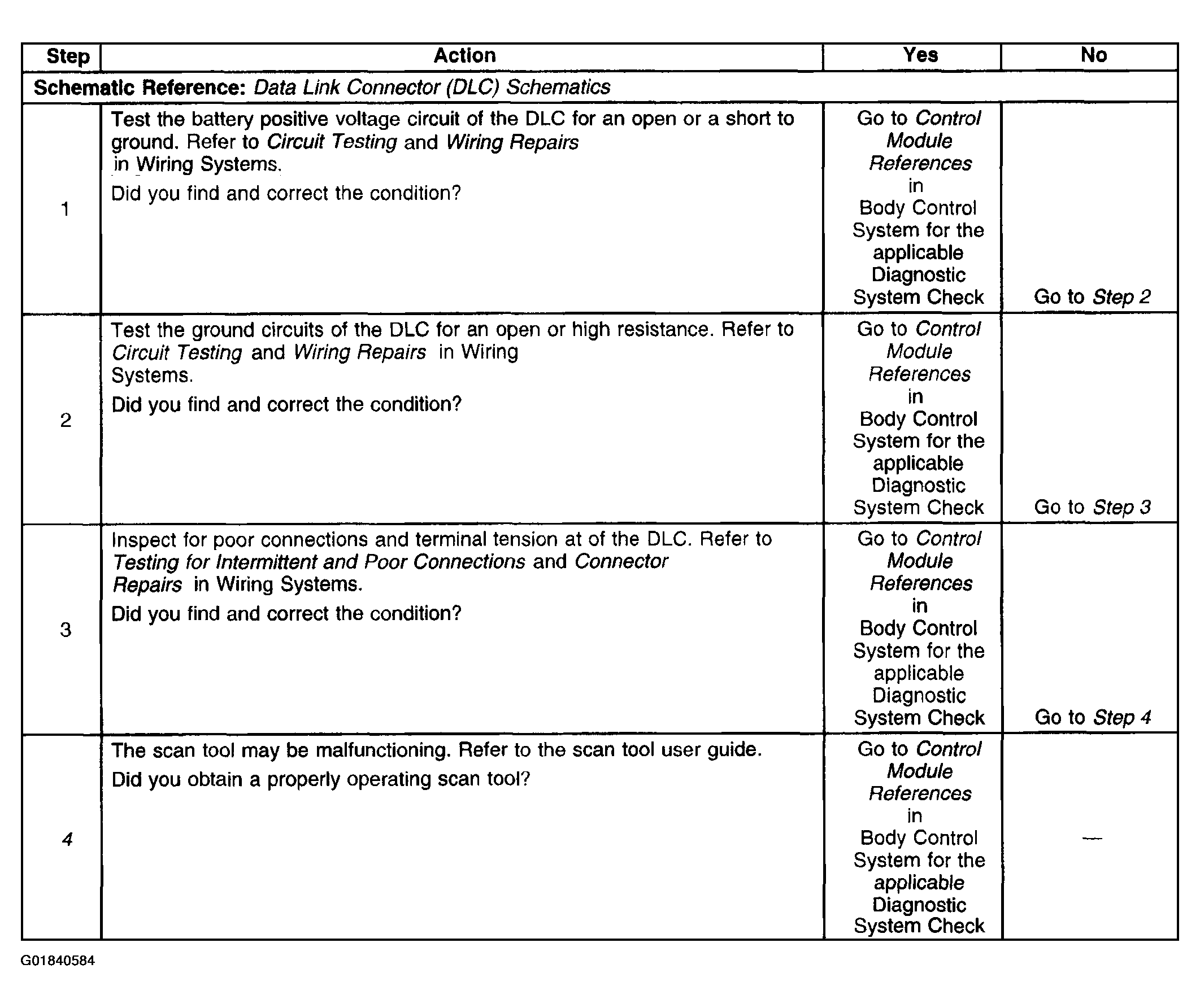

Fig 1: Scan Tool Does Not Power Up Diagnostic Table (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.
