Driver Information Center (DIC) Connector End View C2, w/ Short Console

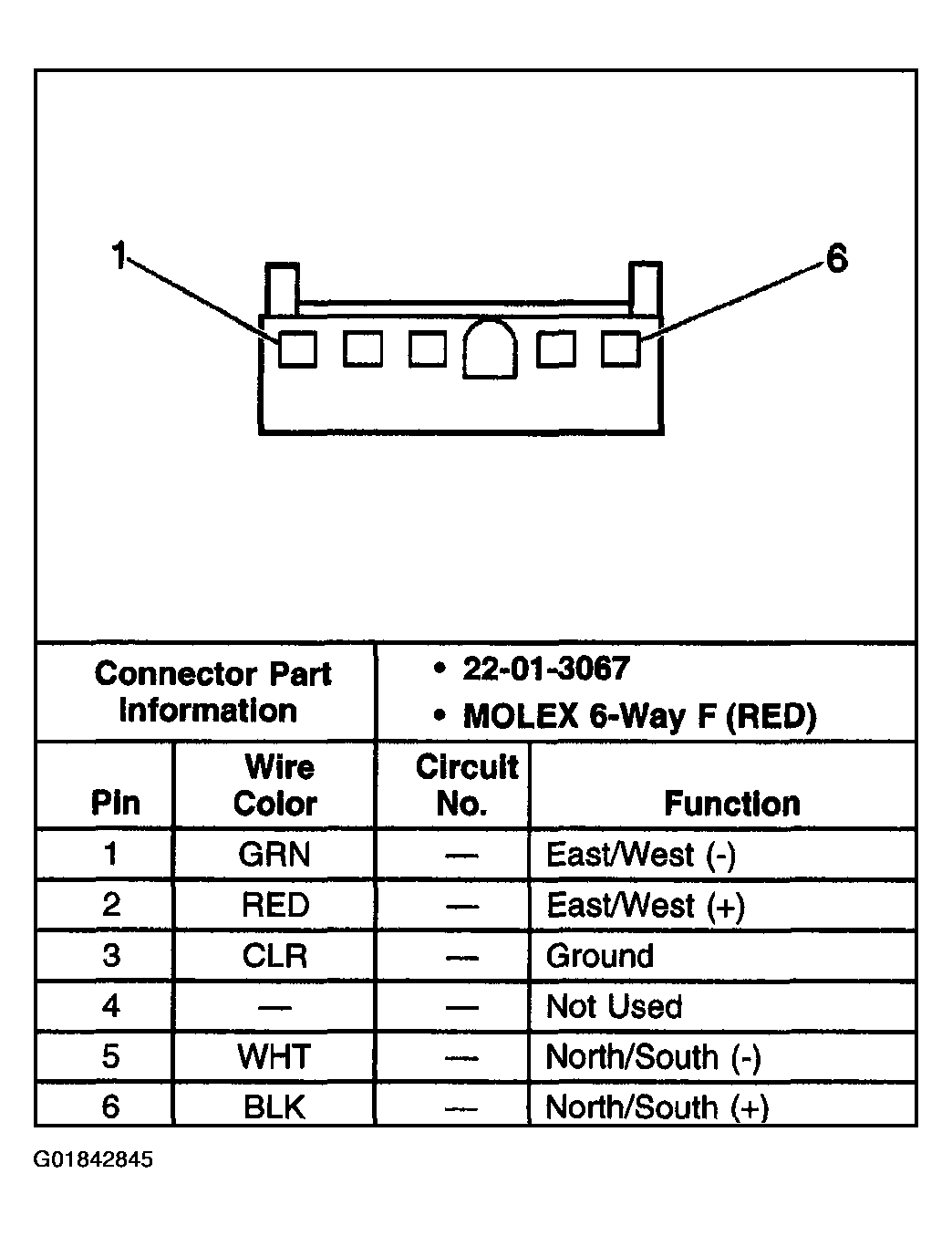

Fig 1: Driver Information Center (DIC) Connector End View C2, w/ Short Console
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
