Test Description
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

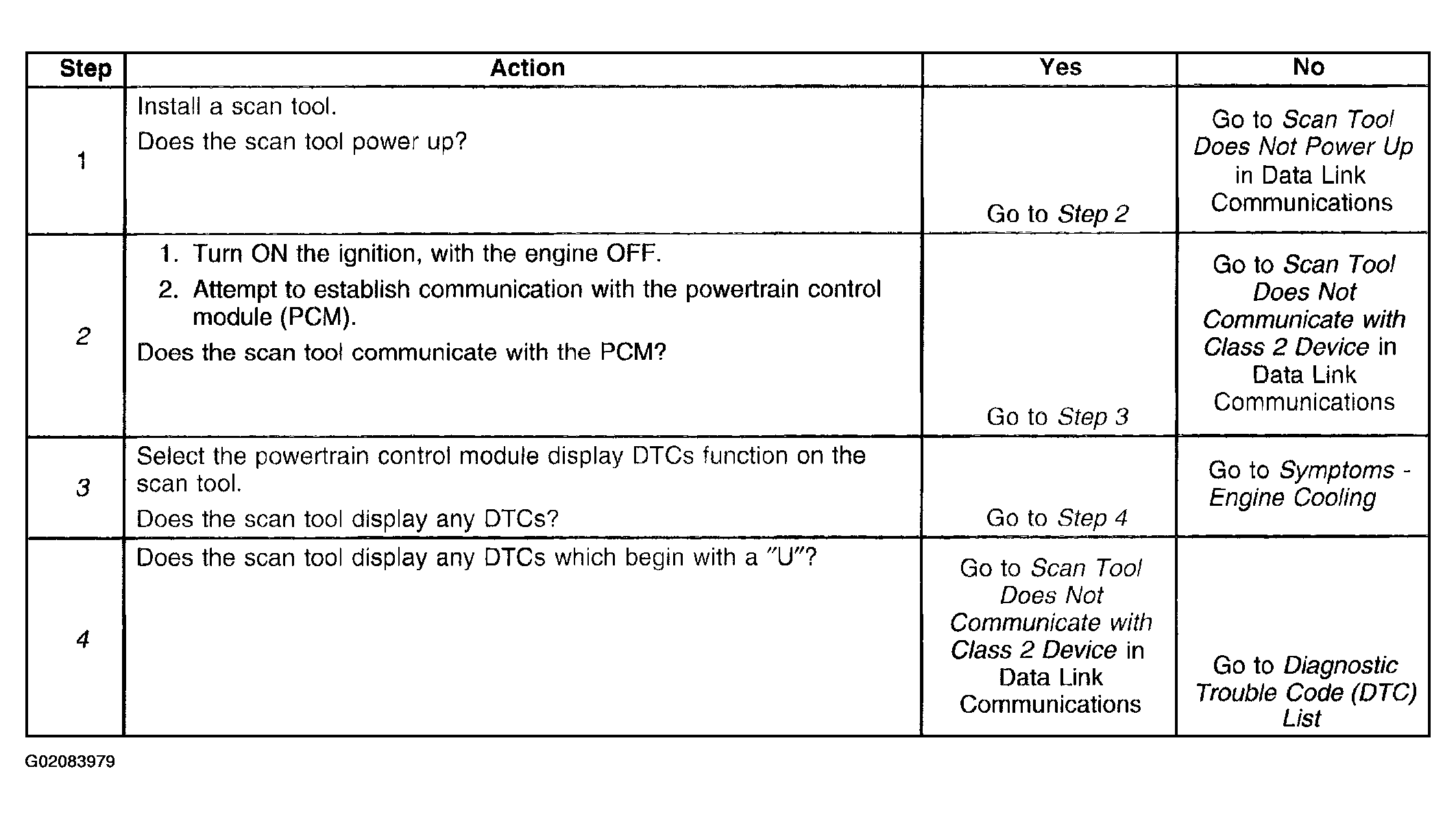

The numbers below refer to the step numbers on the diagnostic table.
- 2. Lack of communication may be due to a partial malfunction of the Class 2 serial data circuit or due to a total malfunction of the Class 2 serial data circuit. The specified procedure will determine the particular condition.
- 3. Determine if the Instrument Cluster or Powertrain Control Modules have set DTCs which may affect Engine Cooling operation are present.
- 4. The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed.
