Navigation System Schematics (Navigation Radio - U1A)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

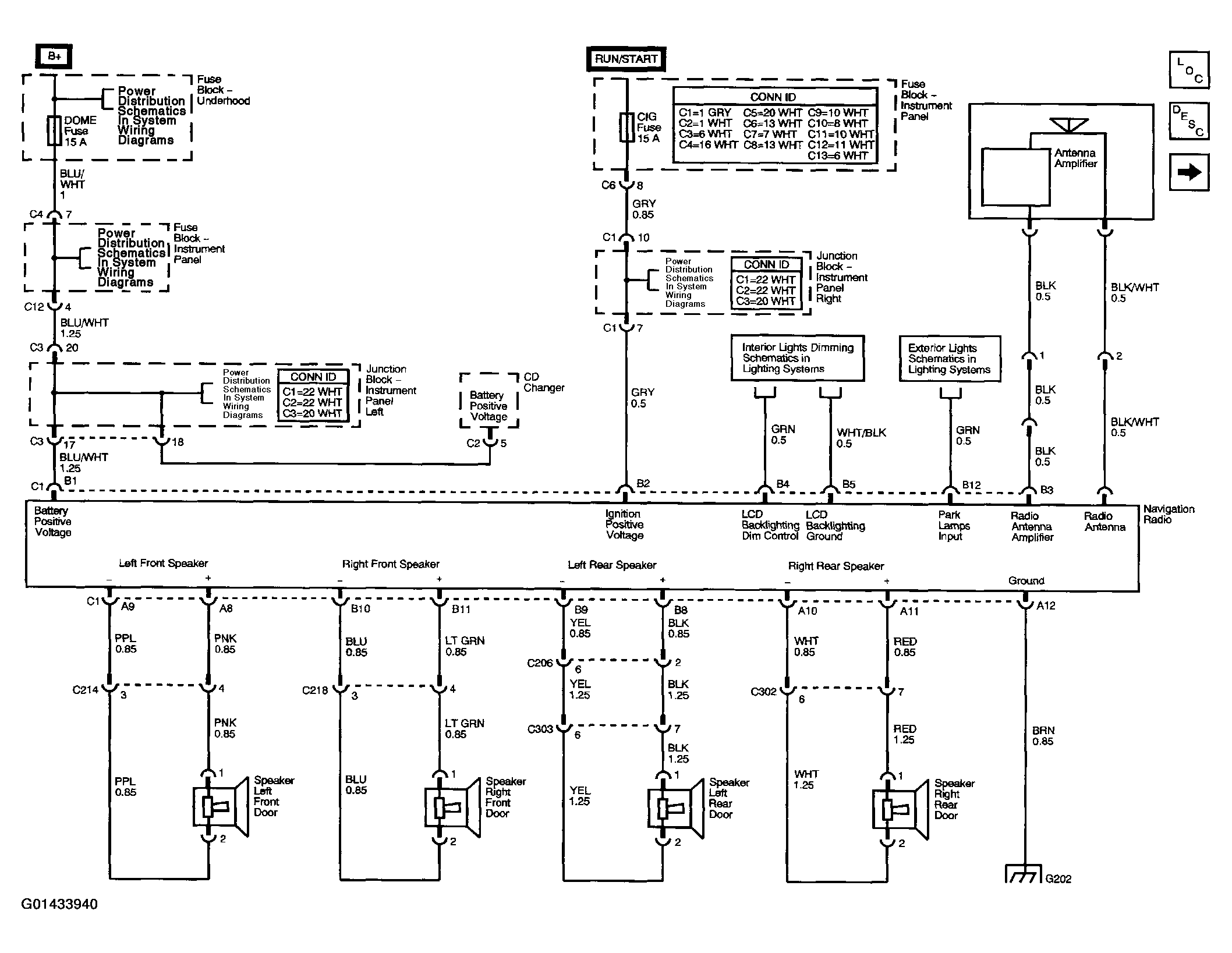

Fig 1: Navigation System Schematic Diagram (Navigation Radio - U1A)
G01433940Courtesy of GENERAL MOTORS CORP.
