Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

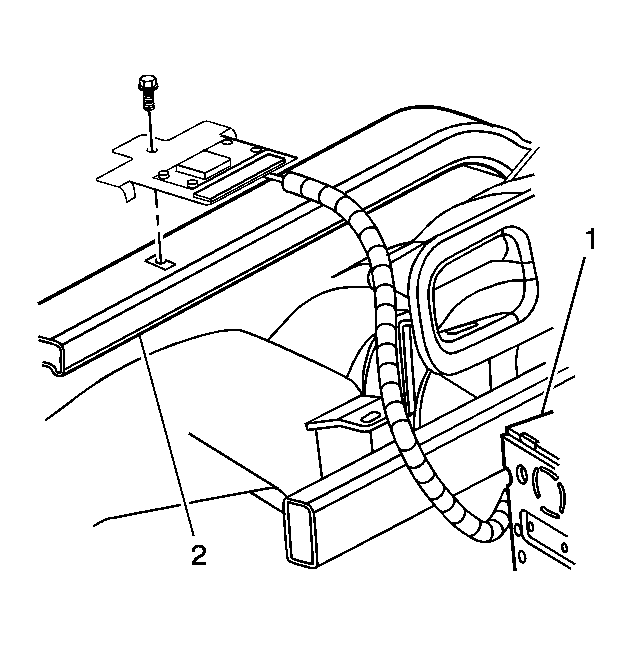

    Fig 1: Connecting Navigational Radio Electrical Connector
    GM1226967Courtesy of GENERAL MOTORS CORP.
  1. Install the antenna module to the vehicle.
  2. Install the screw retaining the antenna module to the cross-car beam (2).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the screw.

    Tighten:  Tighten the screw to 2.5 N.m (22 lb in).

  4. Install the I/P assembly. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel Gages and Console.
  5. Connect the electrical connector to the navigational radio (1).
  6. Install the navigational radio. Refer to Radio Replacement .
