Removal Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Turn OFF the headlamp switch.

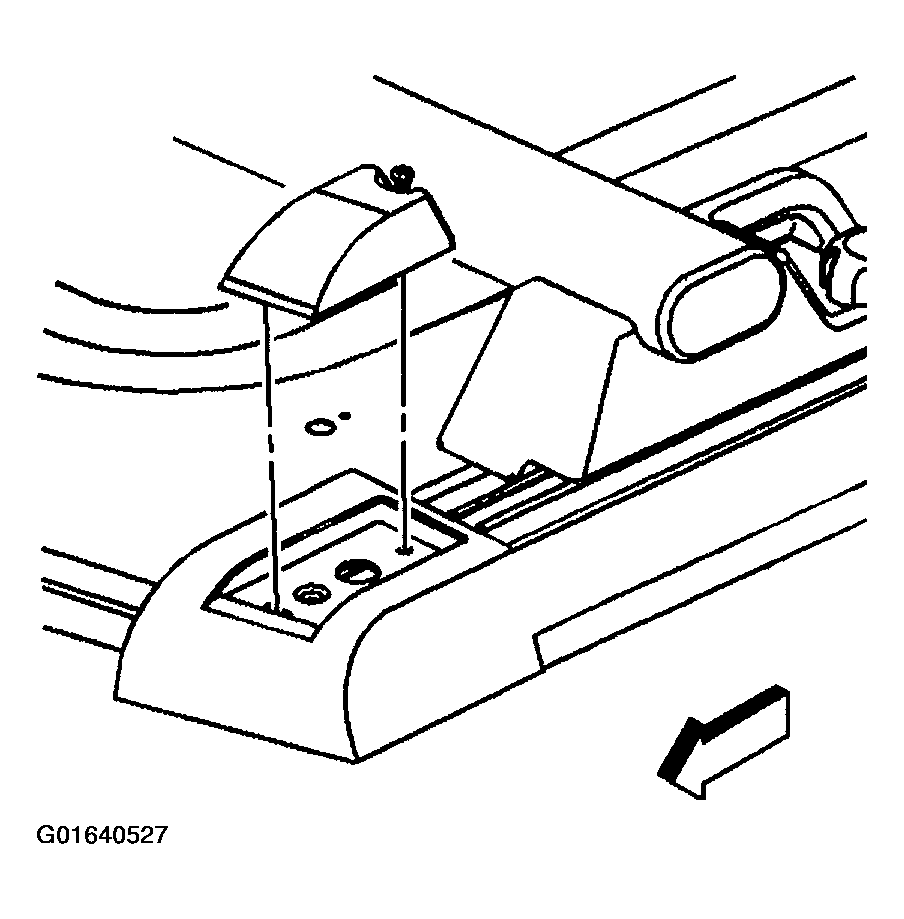

- Insert a small flat bladed tool under the rear edge of the lens and pry upward.
- Remove the lens.
- Twist the bulb counterclockwise to remove.
Courtesy of GENERAL MOTORS CORP.
