Data Link Connector (DLC) Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

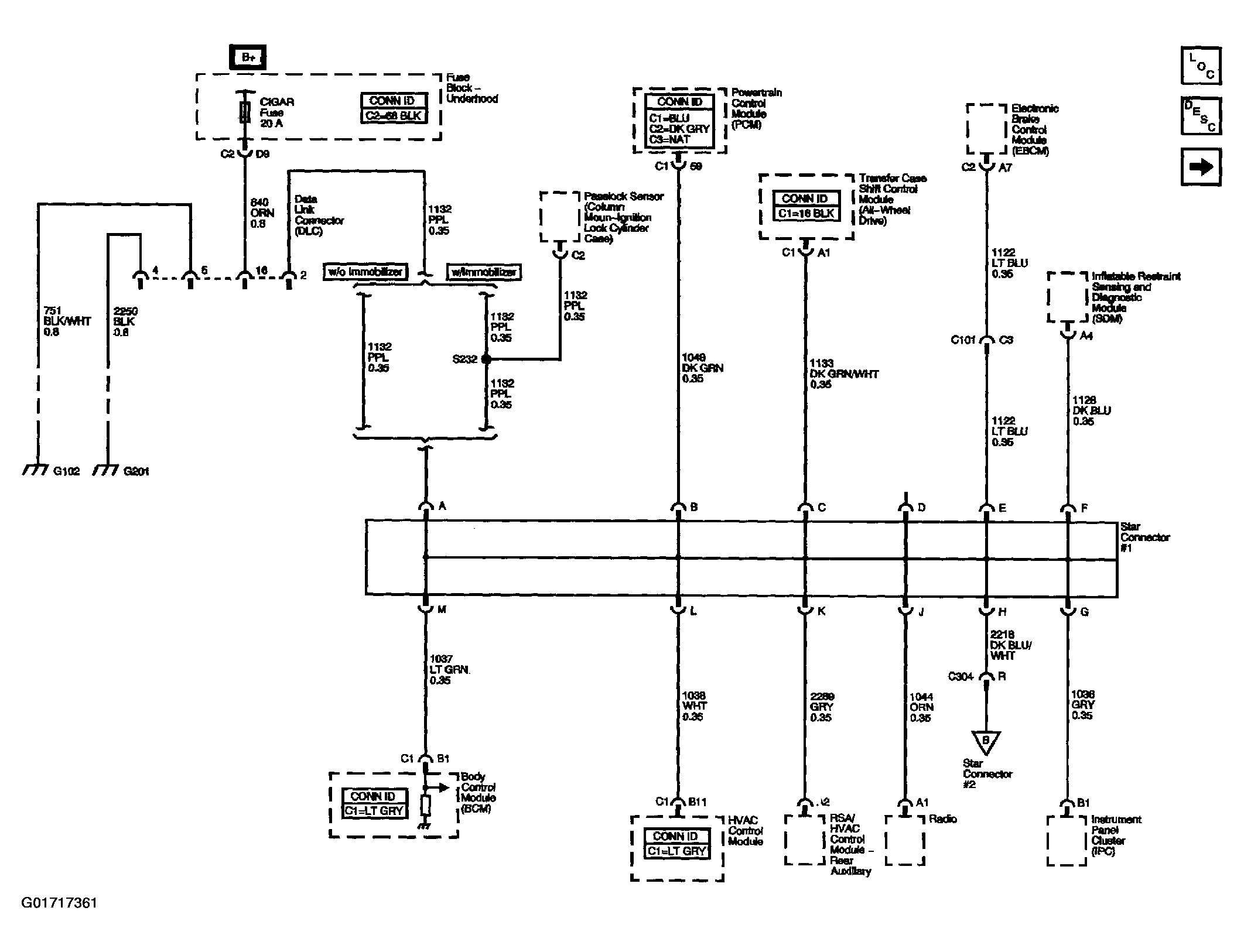

Fig 1: Data Link Connector (DLC) Schematics (Star Connector No.1)
G01717361Courtesy of GENERAL MOTORS CORP.

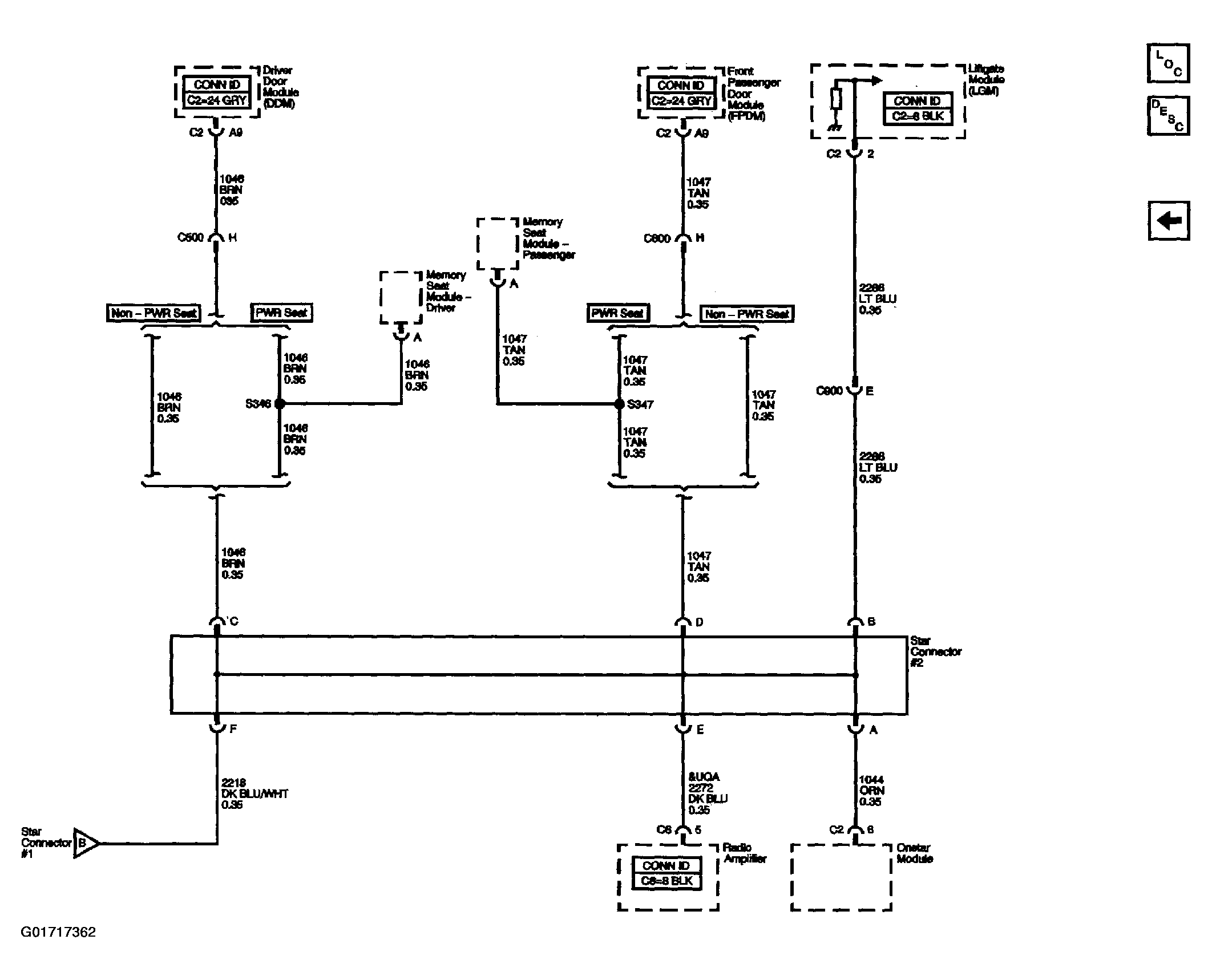

Fig 2: Data Link Connector (DLC) Schematics (Star Connector No.2)
G01717362Courtesy of GENERAL MOTORS CORP.
