Test Description
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

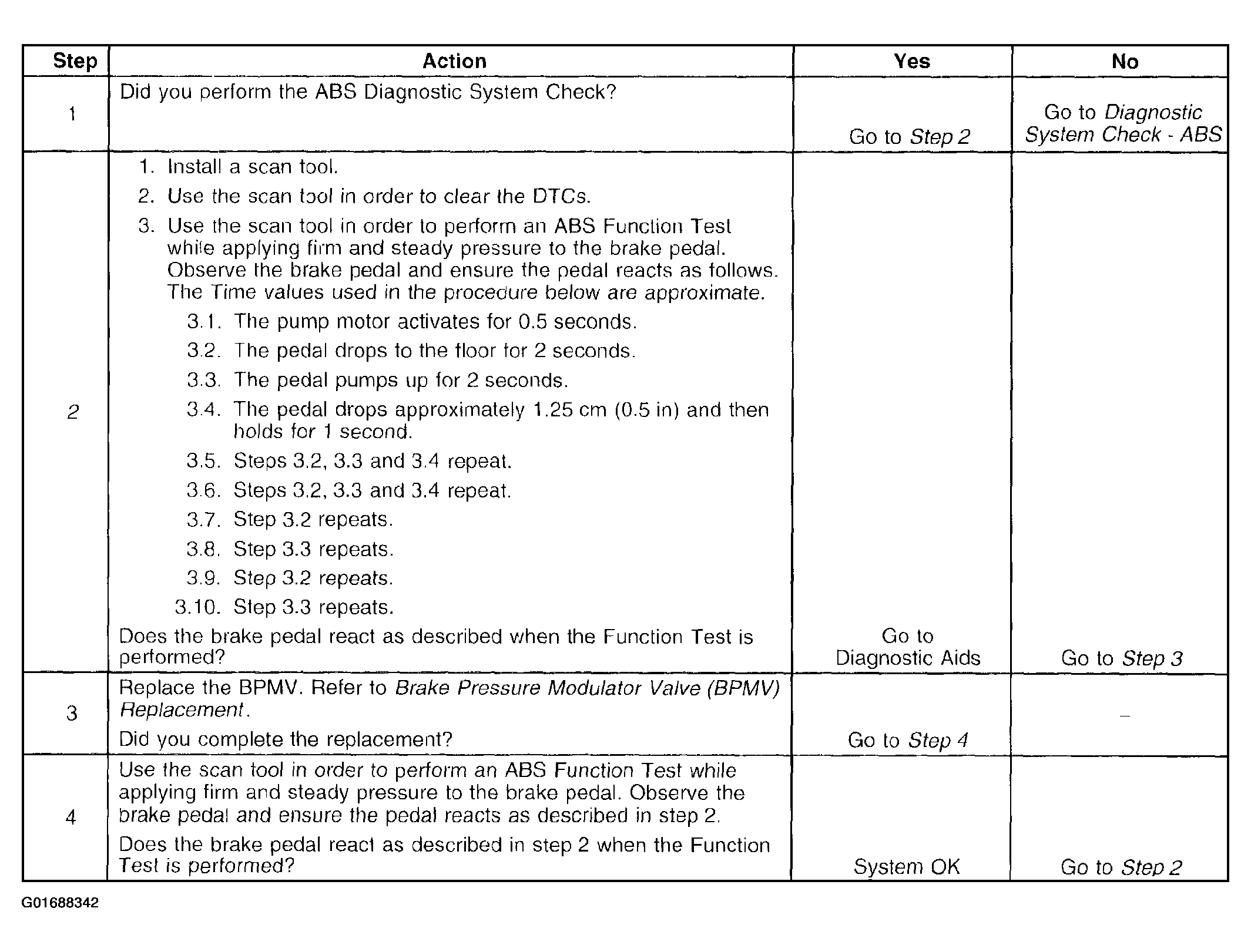

The number below refers to the step number on the diagnostic table:
- 2. Using the scan tool in order to perform an ABS Function Test while applying firm and steady pressure to the brake pedal and observing how the pedal reacts determines if there is a mechanical malfunction inside the BPMV (i.e.; a dump valve stuck closed or an isolation valve stuck open).
