Test Description
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

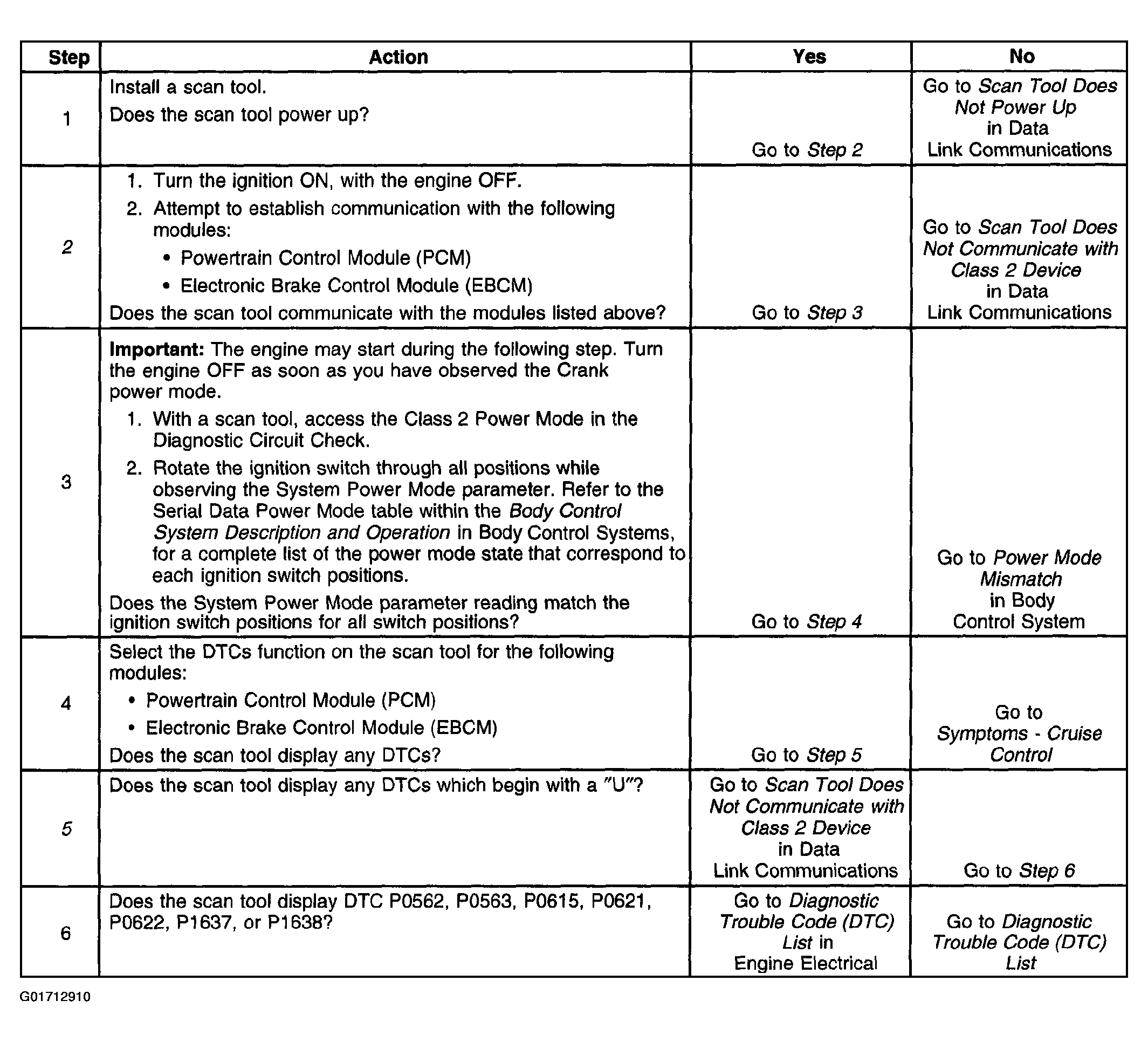

The numbers below refer to the step numbers on the diagnostic table.
- 2) - Lack of communication may be due to a malfunction in the class 2 serial data circuit. The specified procedure will determine the particular condition.
- 5) - The presence of DTCs which begin with "U" indicates that some other module is not communicating. The specified procedure will compile all the available information before tests are performed.
