Test Description

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

The numbers listed below refer to the numbers on the diagnostic table.

4. This step determines if ignition 0 is shorted to ground.
5. This step determines if the body control module BCM is internally shorted.
6. This step determines if the instrument panel cluster IPC is internally shorted.
7. This step determines if voltage a voltage supply is present, from the battery to the fuse.

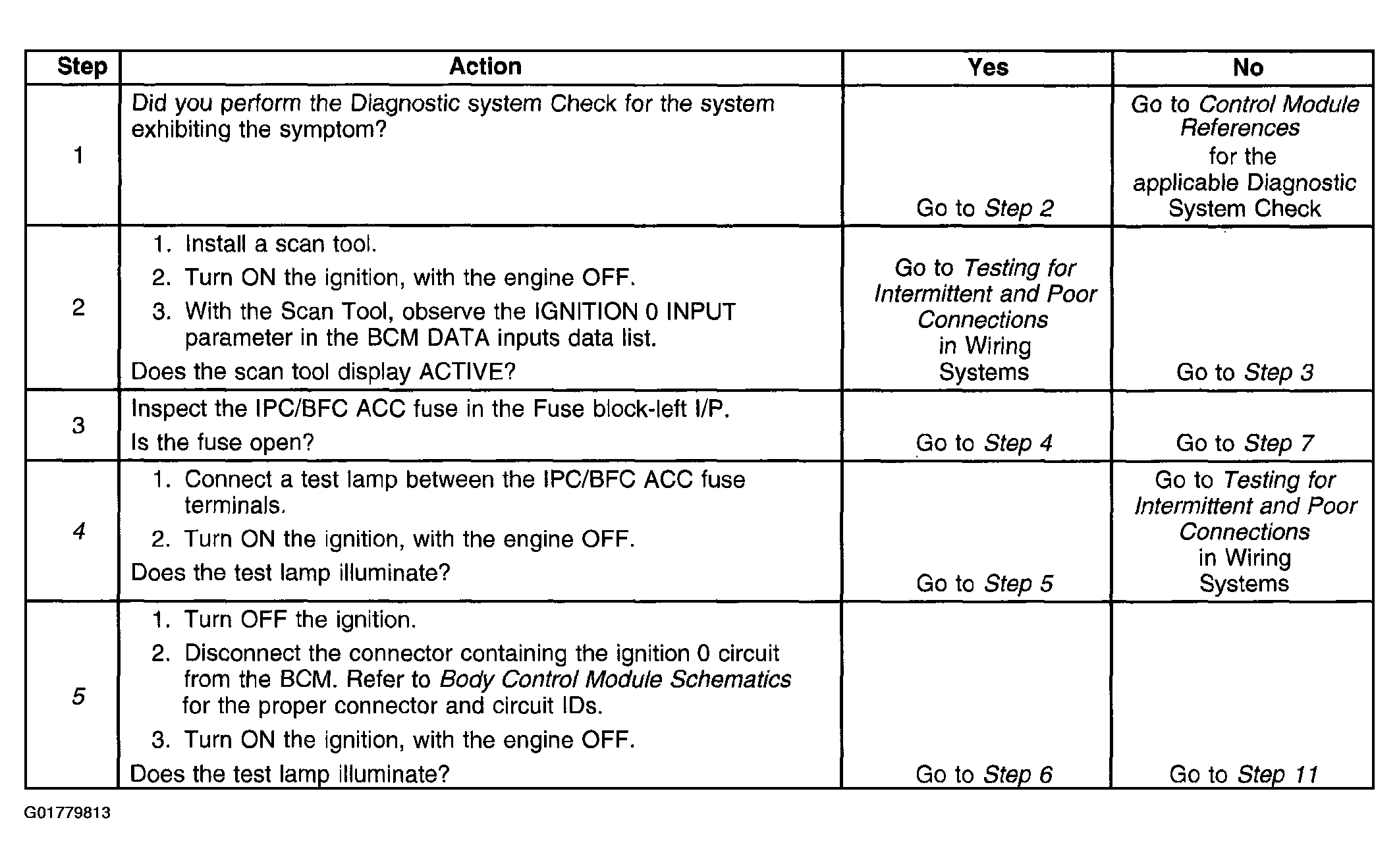

Fig 1: Identifying DTC B1369 Diagnostic Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

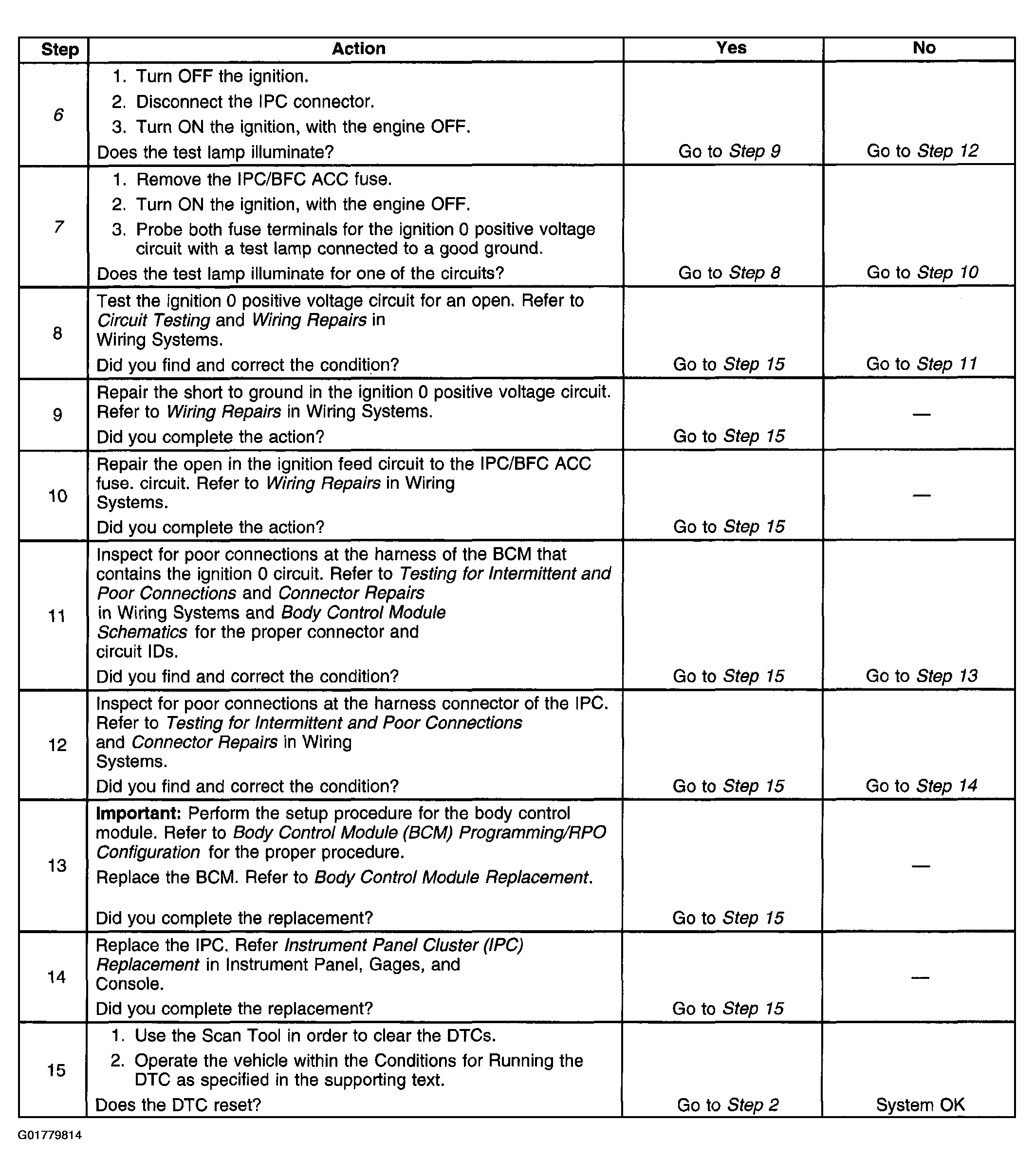

Fig 2: Identifying DTC B1369 Diagnostic Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
