Circuit Description
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

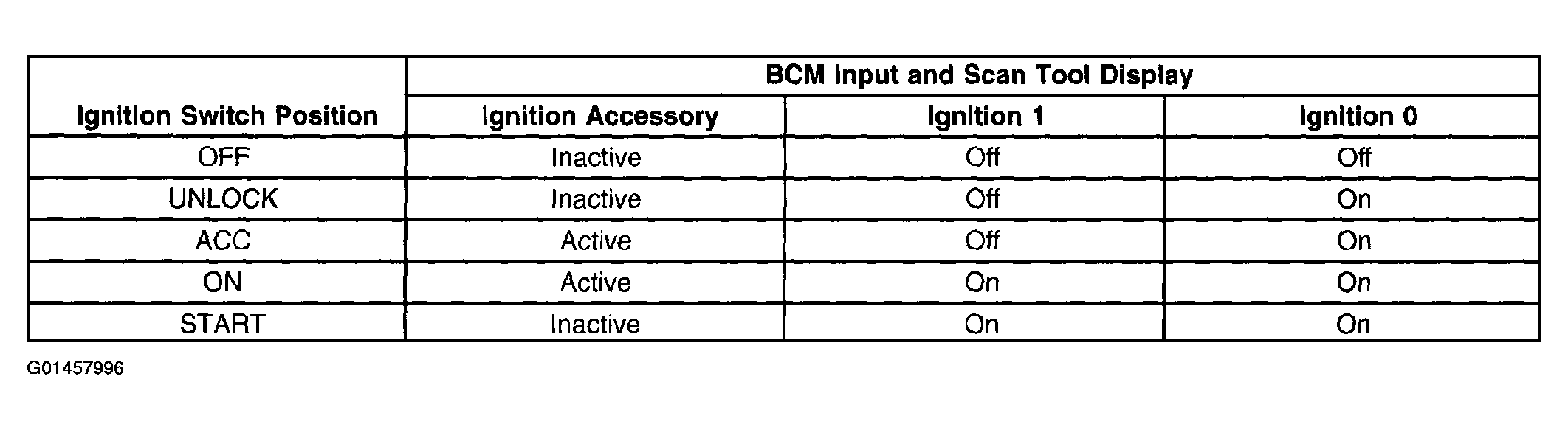

The body control module (BCM) is the power mode master responsible for sending ignition switch position information on the class 2 serial data link. The BCM monitors 3 discrete wires from the ignition switch contacts and the engine run flag (ERF) in order to determine the present power mode. The BCM communicates this power mode information to all class 2 modules on the class 2 serial data link. The following table represents correct BCM power mode data:
