Radio/Audio System Description and Operation: Notes

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The Entertainment System on this vehicle is configured with a radio, antenna, and speakers.

The following list shows the radios available for this vehicle:

Radio (UM7) - AM/FM
Radio (UNO) - AM/FM with CD
Radio (UPO) - AM/FM, Cassette and CD
Radio (UC6) - AM/FM, Integral Multi Disc CD Changer

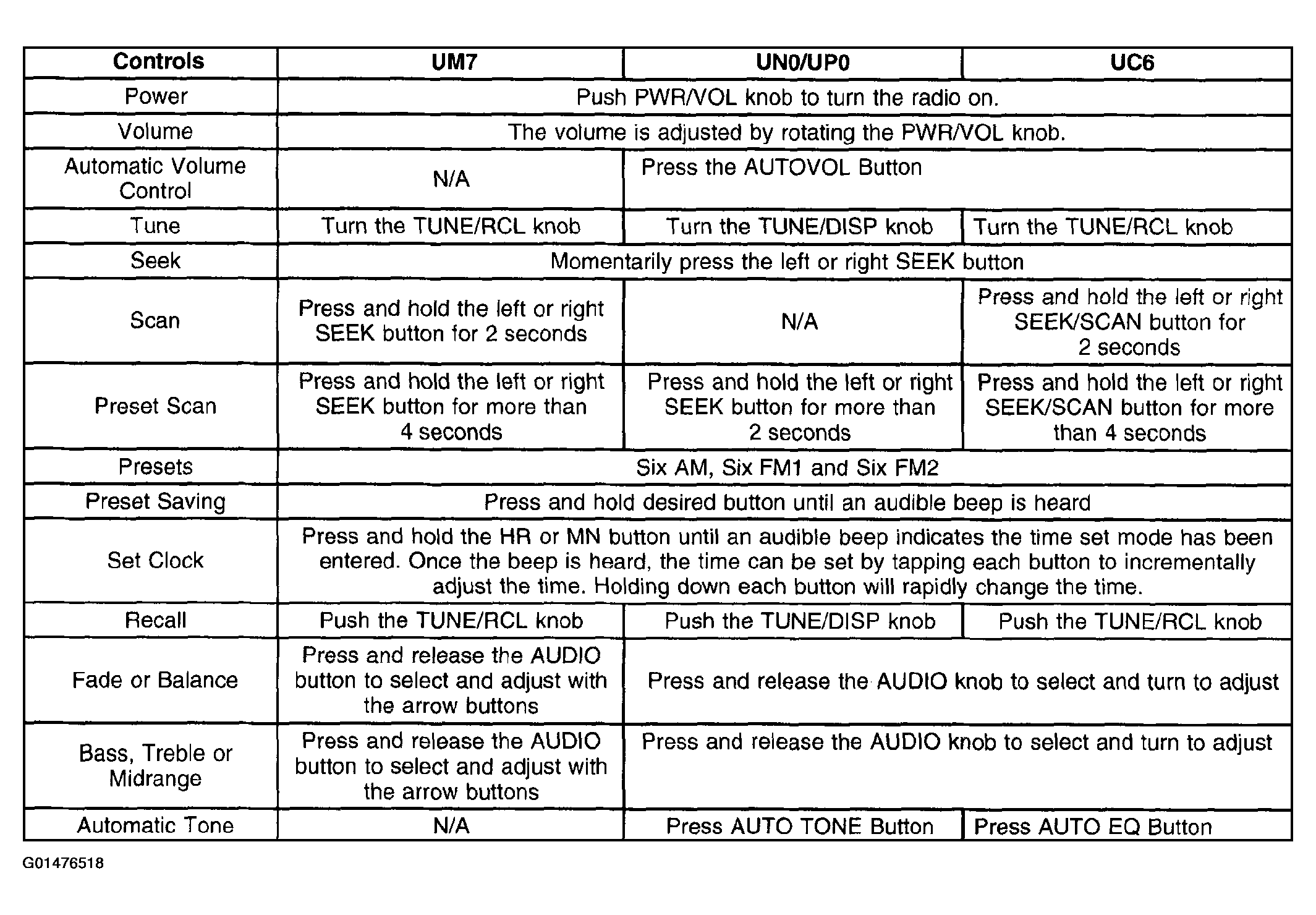

Fig 1: Radio Features - Chart
Courtesy of GENERAL MOTORS CORP.

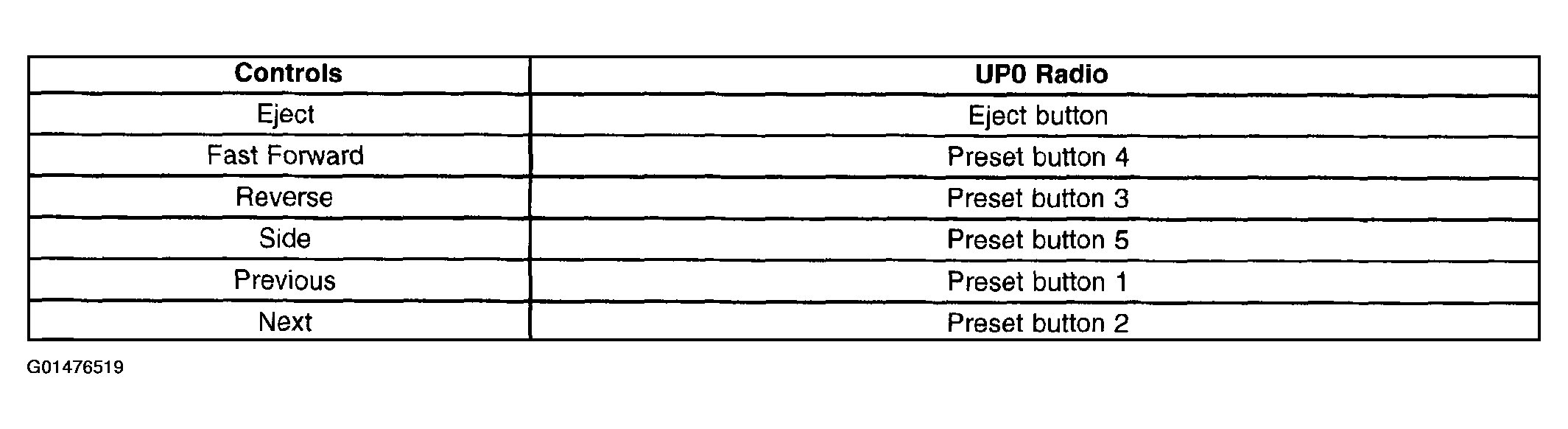

Fig 2: Cassette Features - Chart
Courtesy of GENERAL MOTORS CORP.

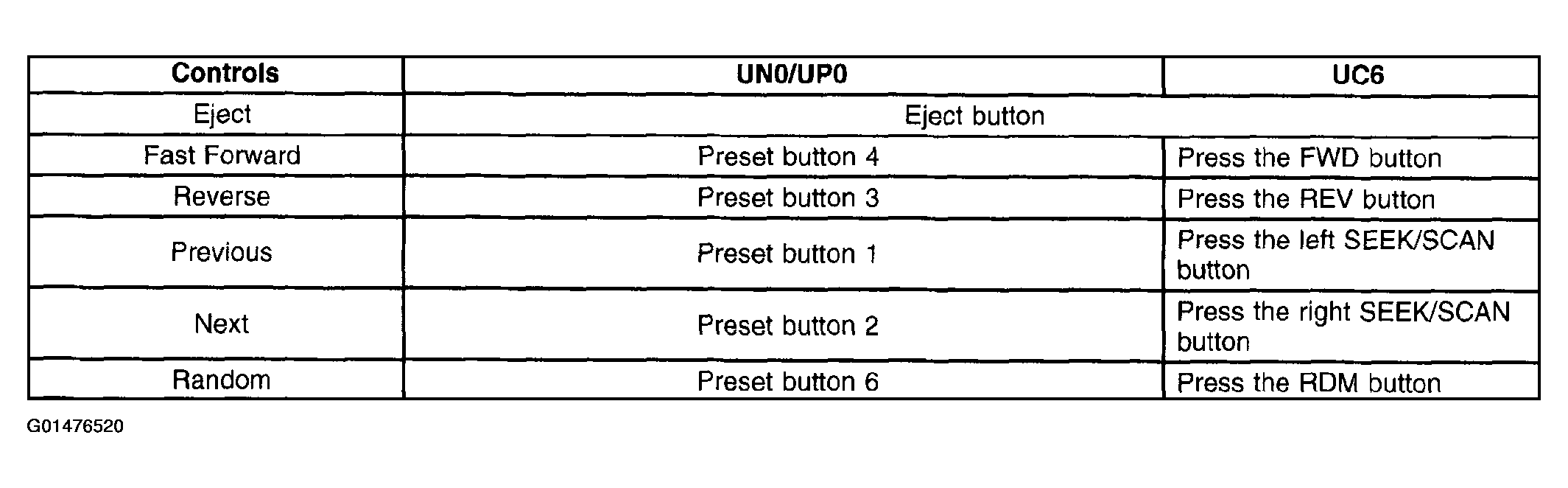

Fig 3: Compact Disc Features - Chart
Courtesy of GENERAL MOTORS CORP.

Each item in the list below represents topics covered in detail below.

AM/FM Reception
Theft Deterrent
Integral Multi Disc CD Changer (IMDX)
Radio Data System (RDS)
