Retained Accessory Power (RAP) Component Views

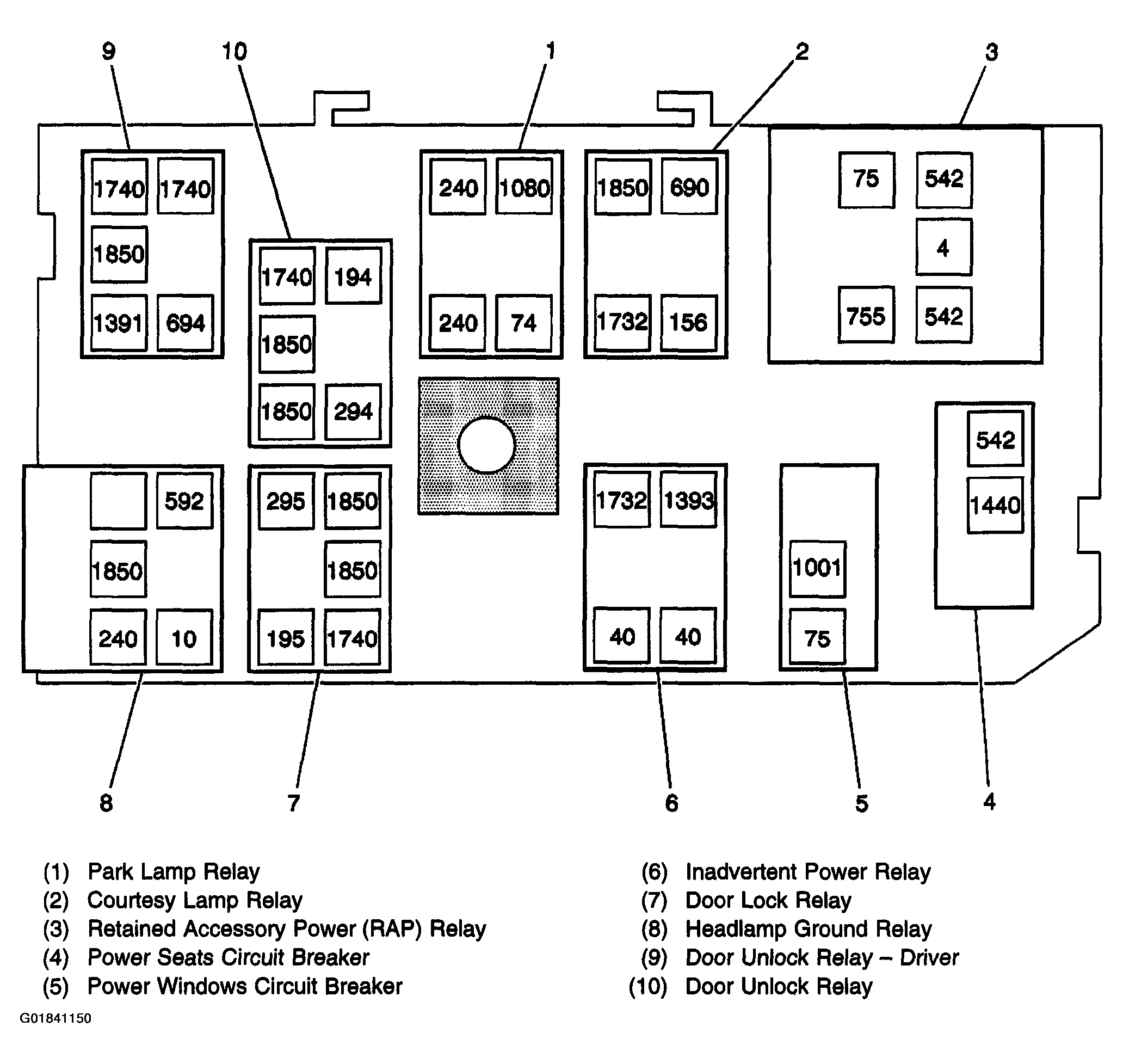

Fig 1: Retained Accessory Power (RAP) Relay - Relay Block, Body
G01841150Courtesy of GENERAL MOTORS CORP.
