Body Control Module Component Views

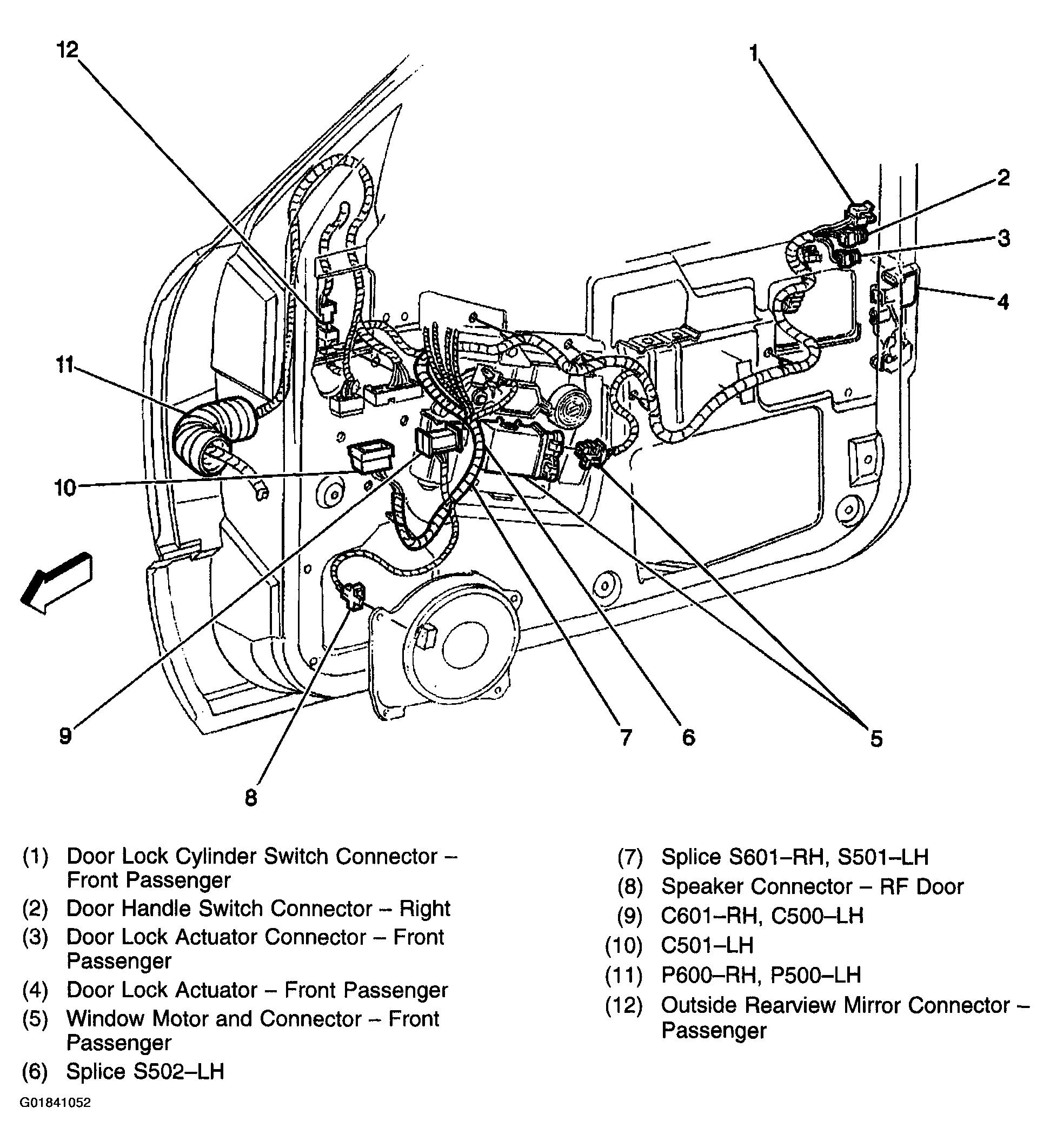

Fig 1: Front Passenger Door Shown, Driver Similar

Courtesy of GENERAL MOTORS CORP.

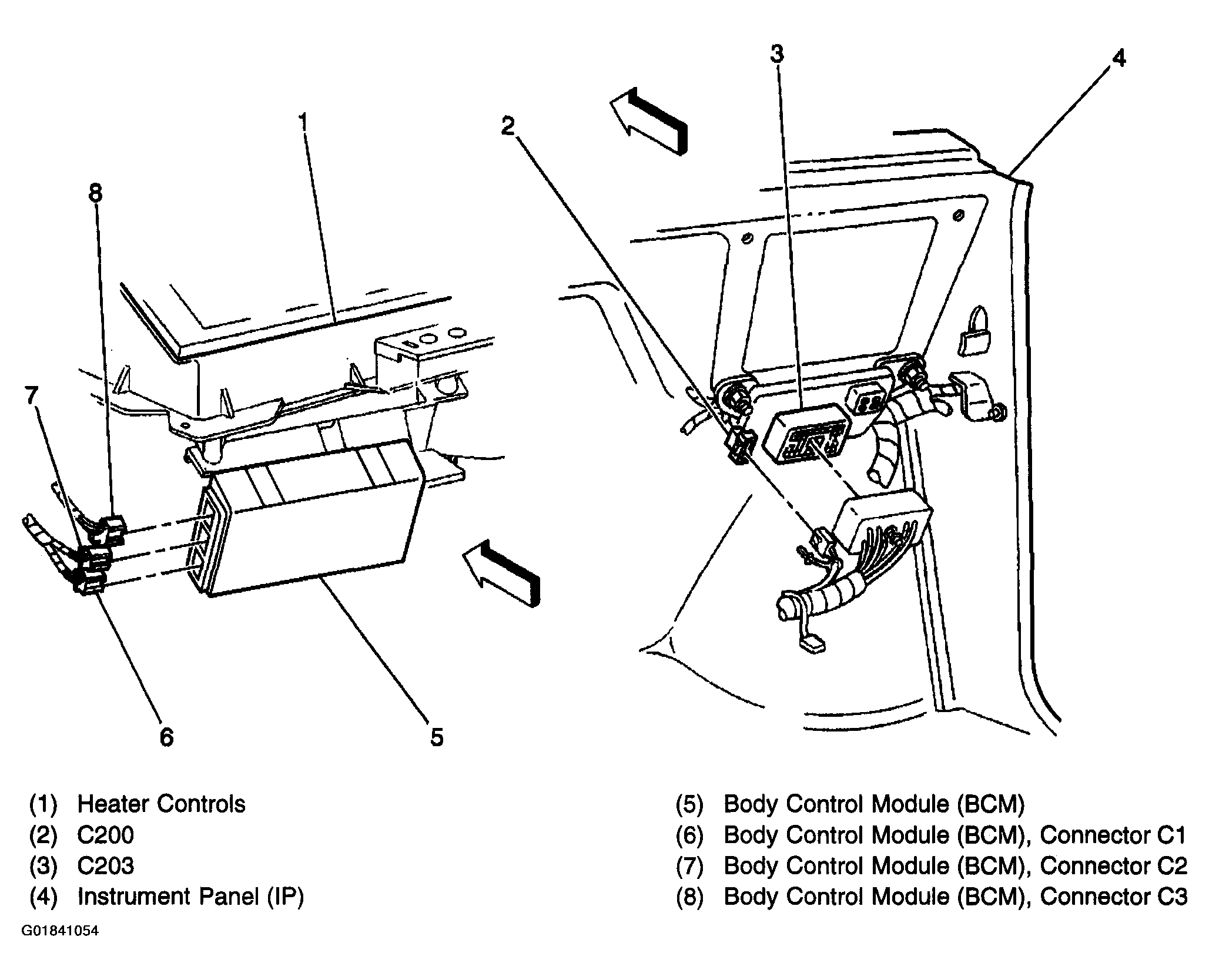

Fig 2: Instrument Panel, LH

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Panel Details, RH

Courtesy of GENERAL MOTORS CORP.

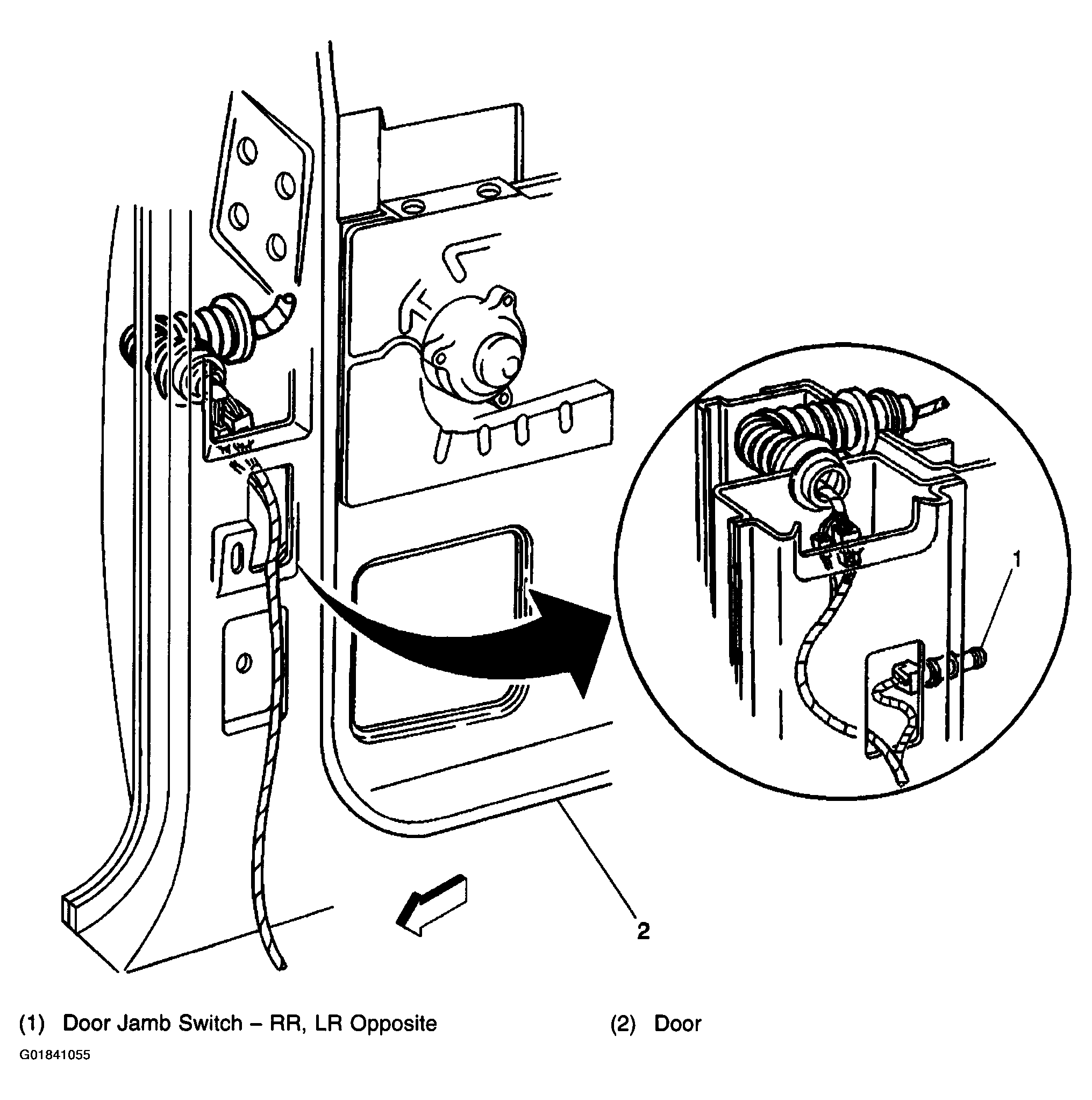

Fig 4: Rear Door Wiring Harness, RH Shown, LH Opposite - Door Jamb Switch

Courtesy of GENERAL MOTORS CORP.

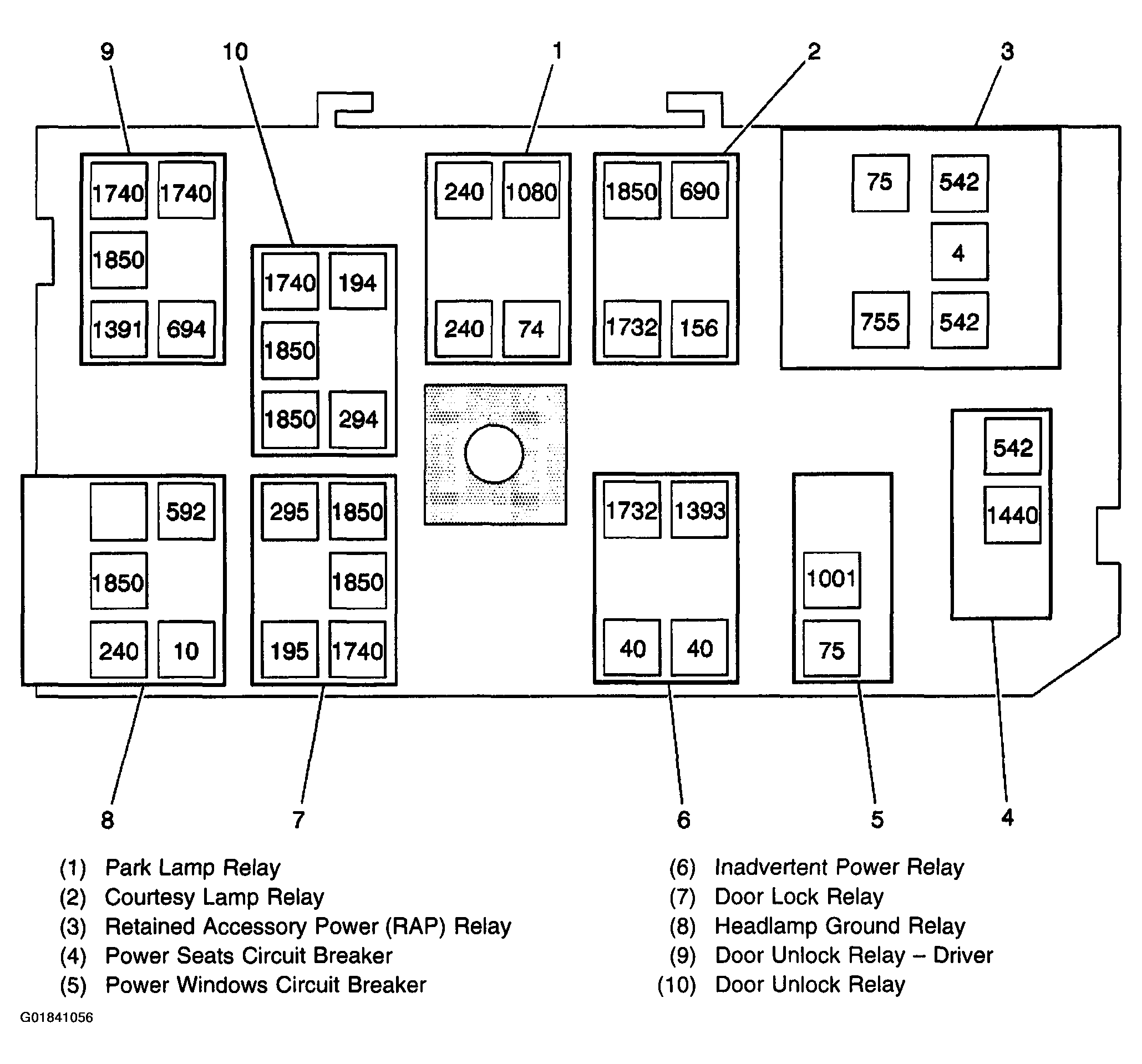

Fig 5: Relay Block - Body Relays

Courtesy of GENERAL MOTORS CORP.

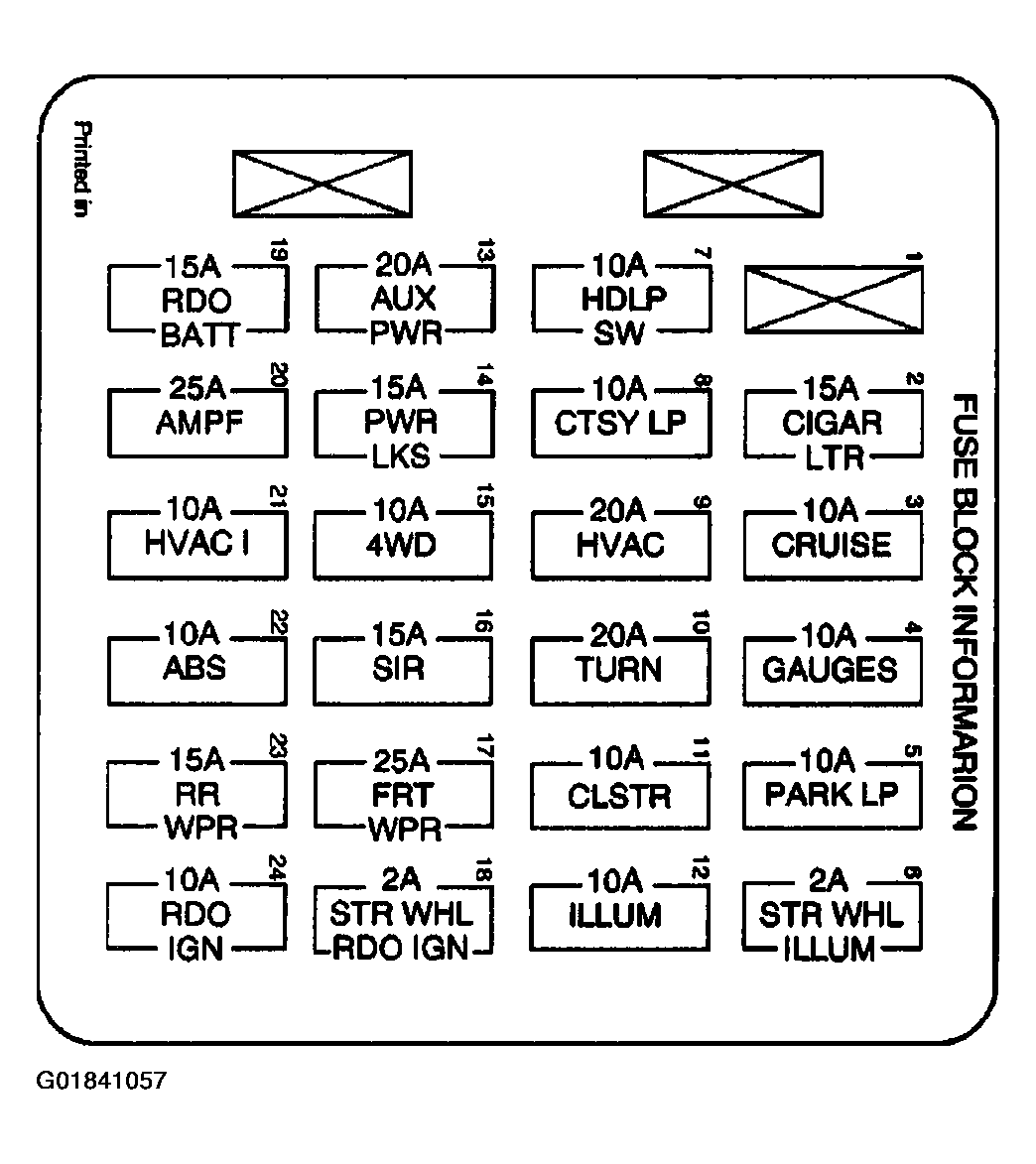

Fig 6: Fuse Block - I/P - Label

Courtesy of GENERAL MOTORS CORP.

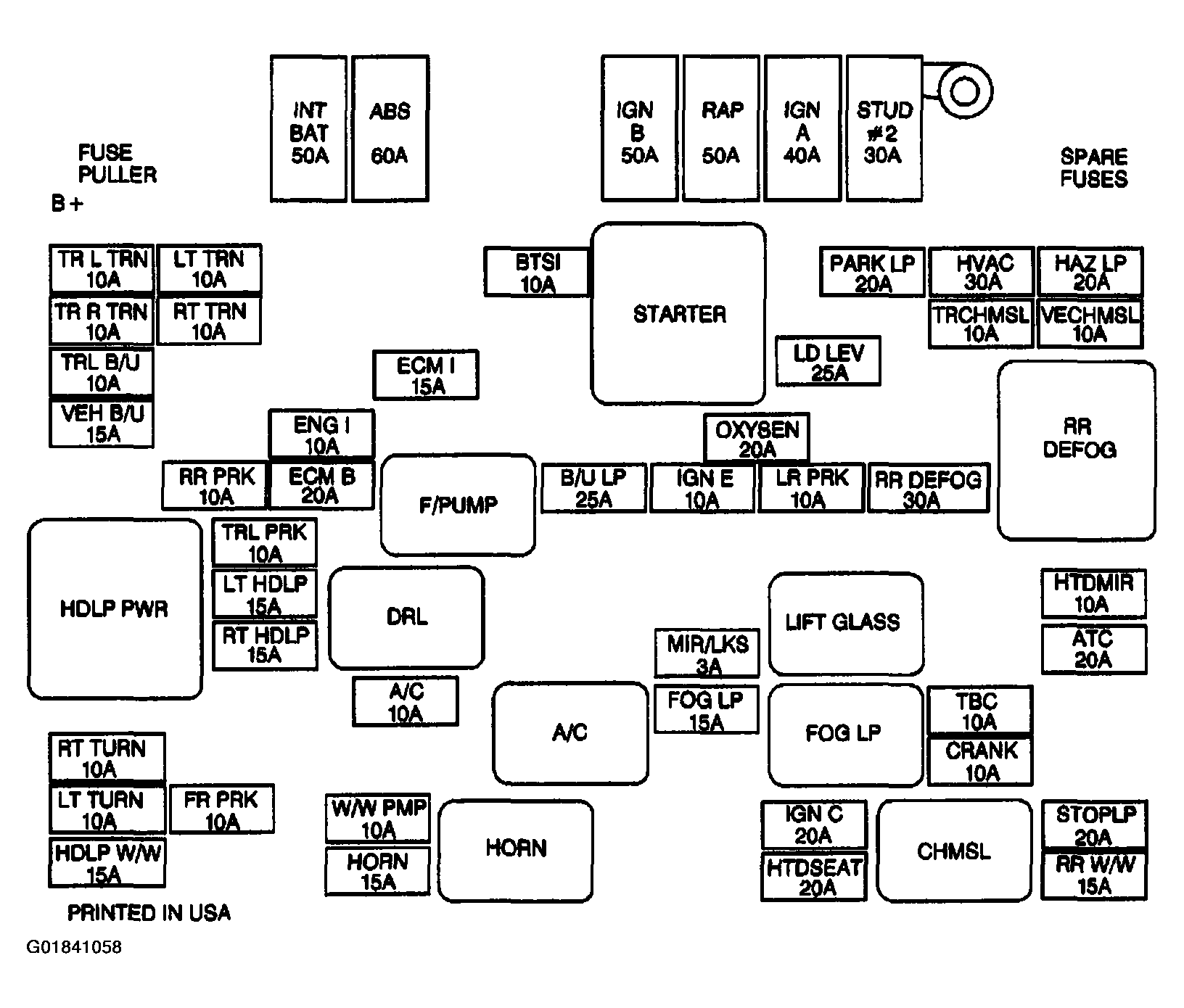

Fig 7: Fuse Block Label - Underhood

Courtesy of GENERAL MOTORS CORP.

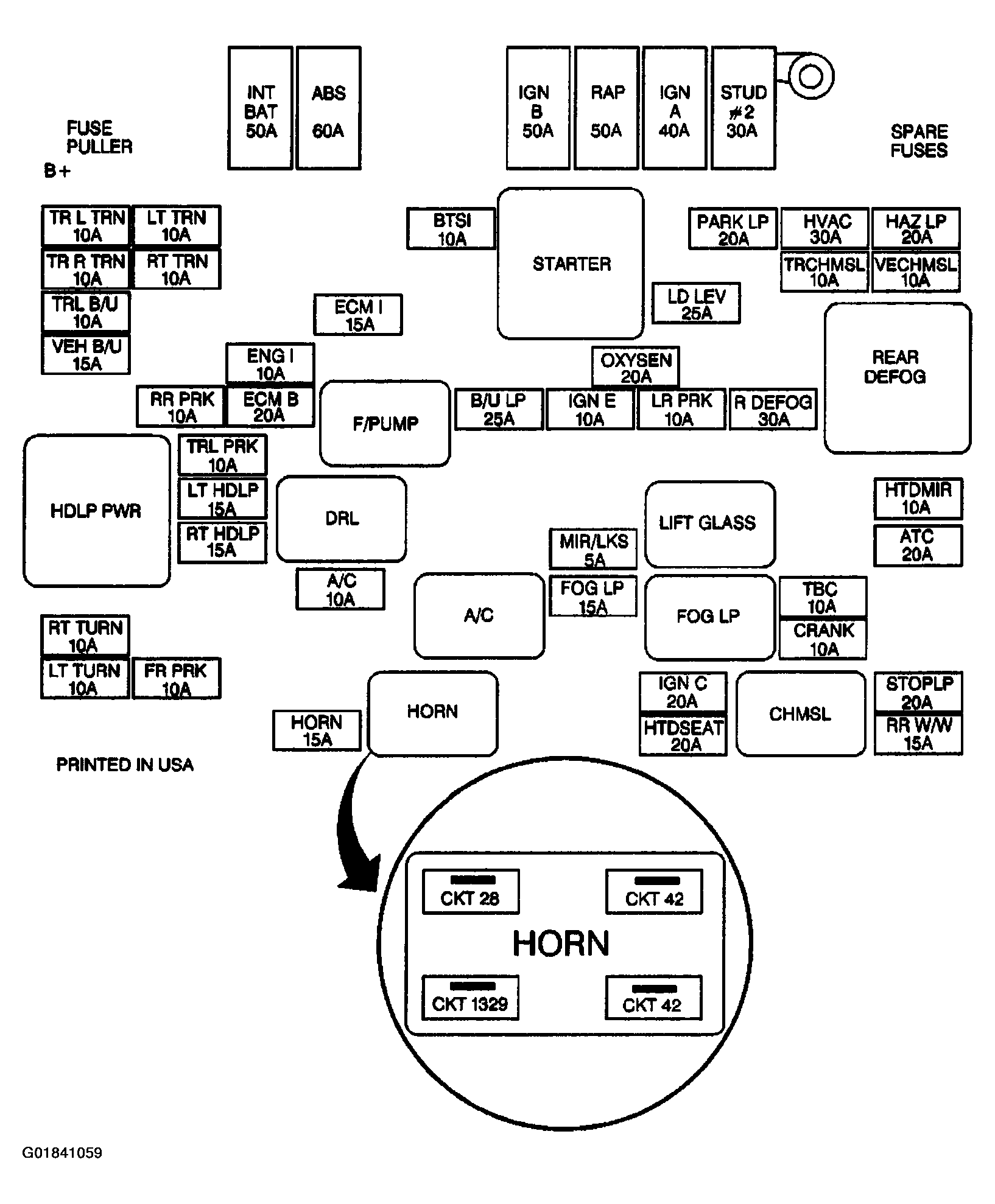

Fig 8: HORN Relay

Courtesy of GENERAL MOTORS CORP.

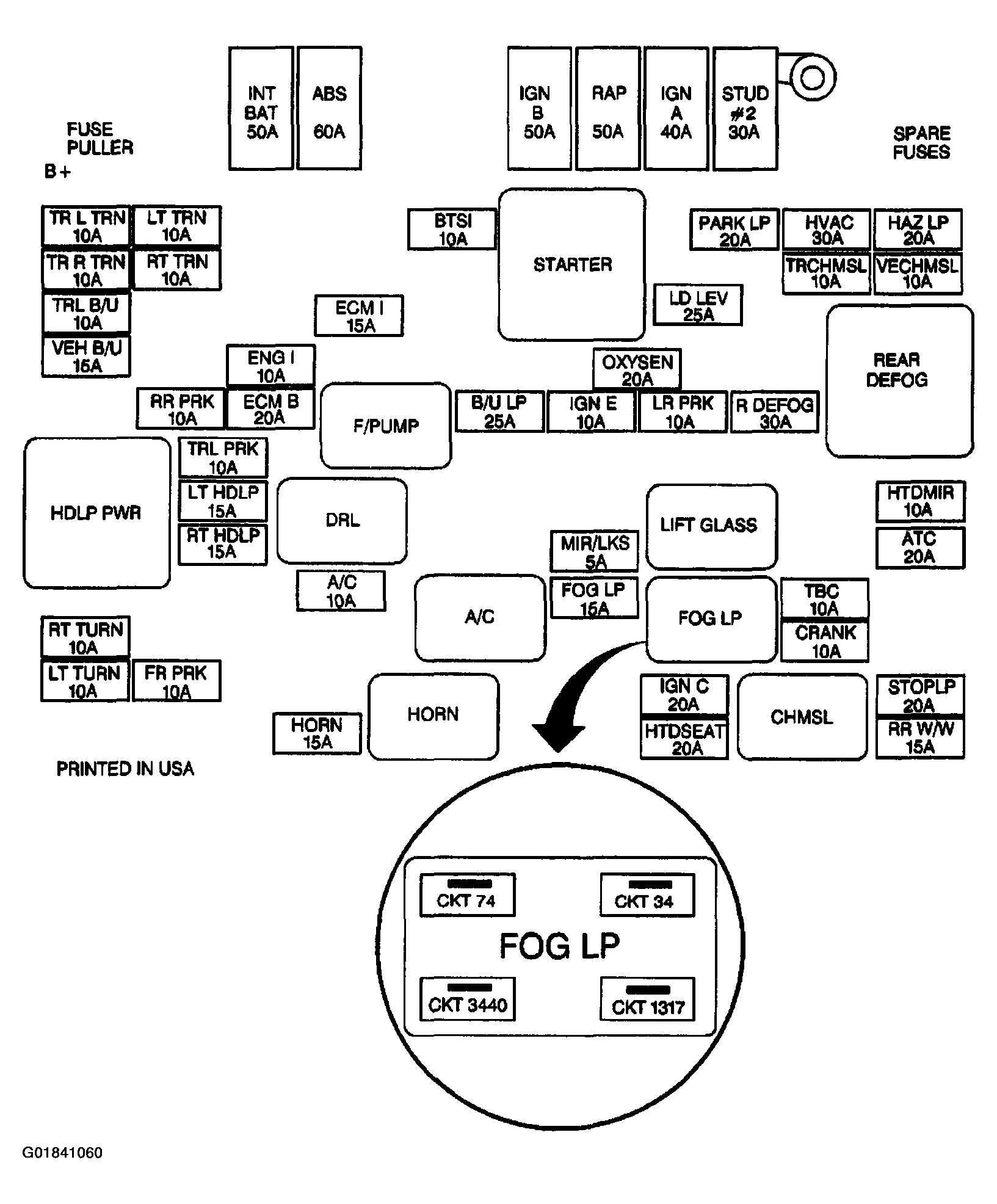

Fig 9: FOG LP Relay

Courtesy of GENERAL MOTORS CORP.

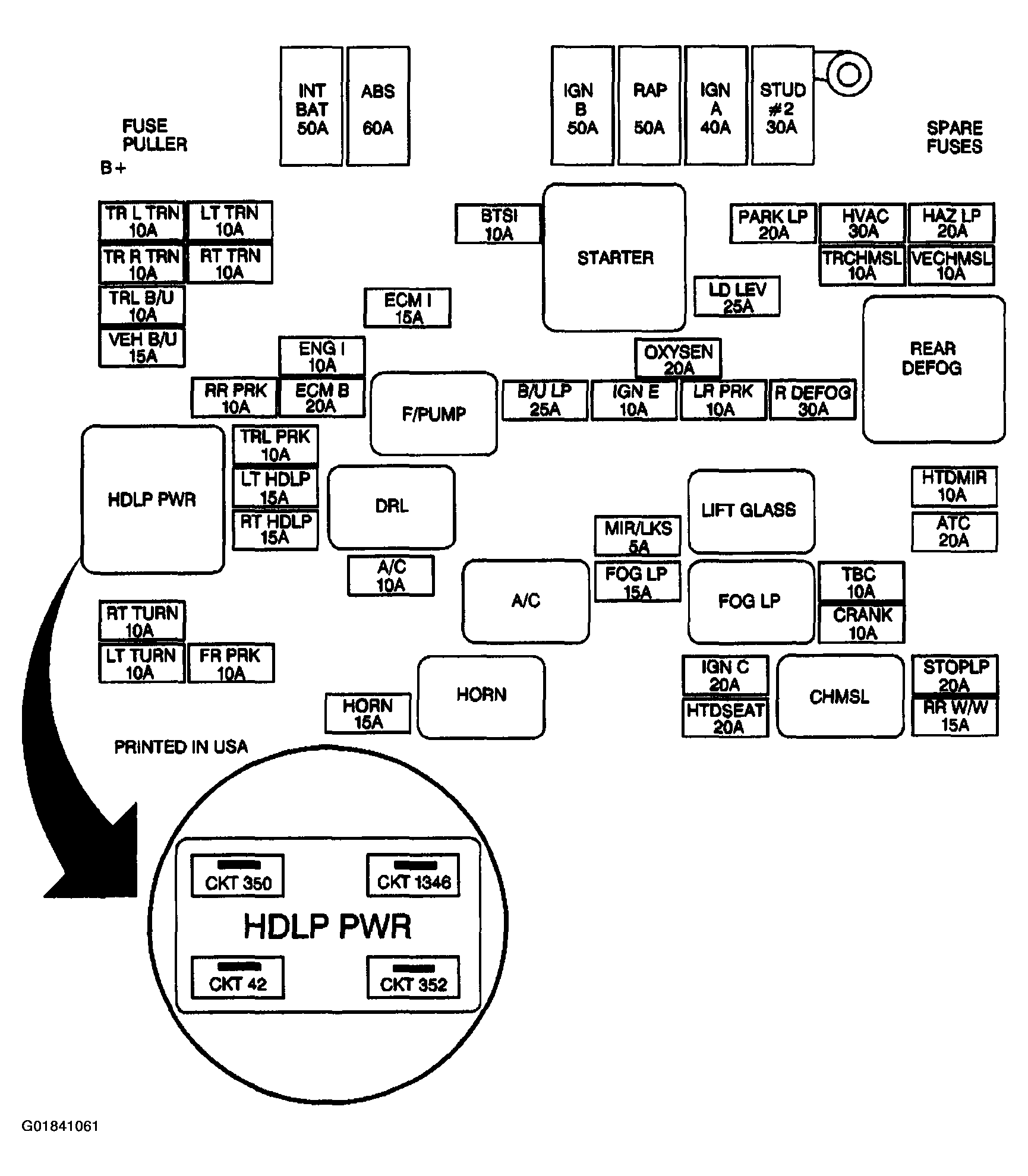

Fig 10: HDLP PWR Relay

Courtesy of GENERAL MOTORS CORP.

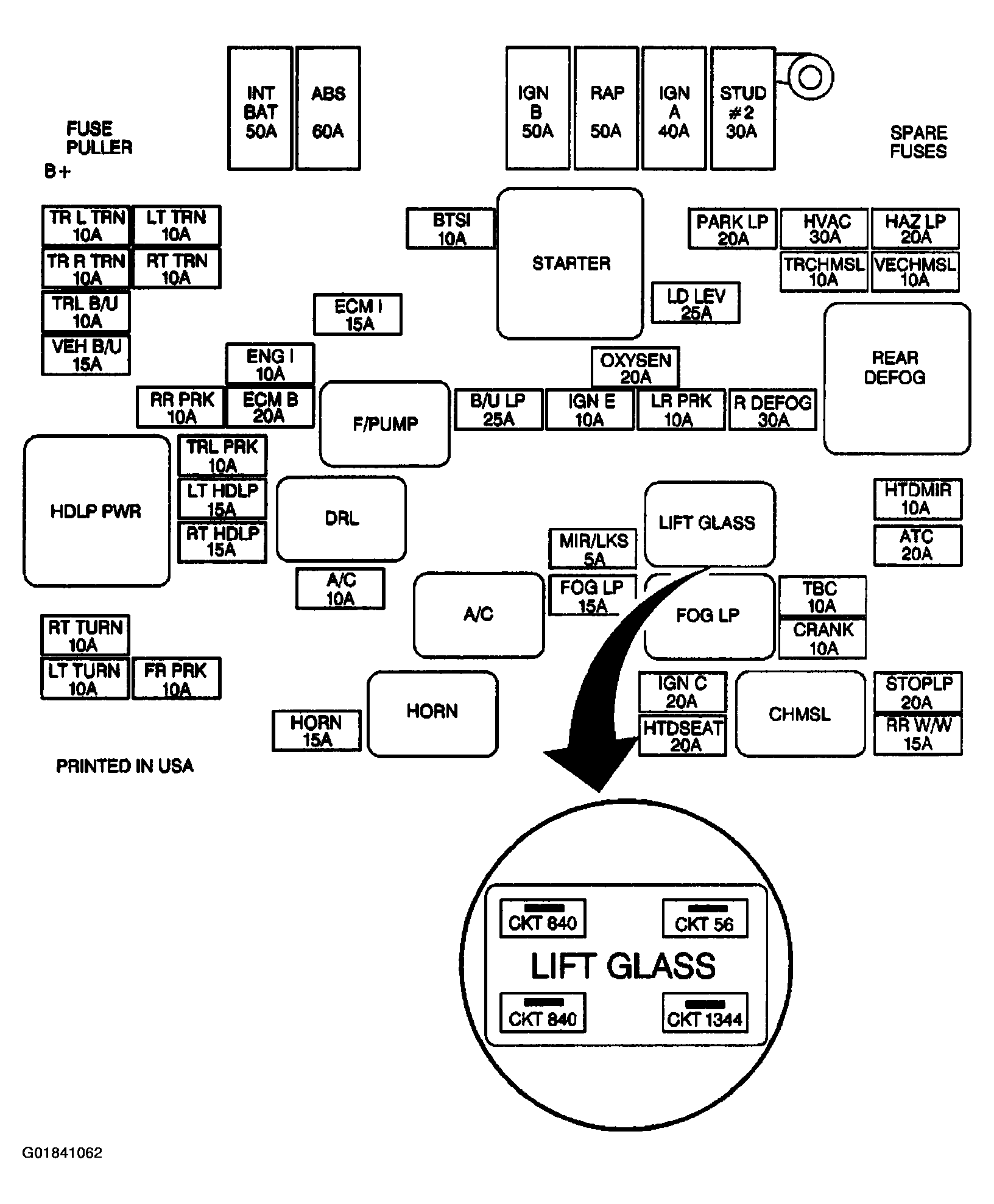

Fig 11: LIFT GLASS Relay

Courtesy of GENERAL MOTORS CORP.

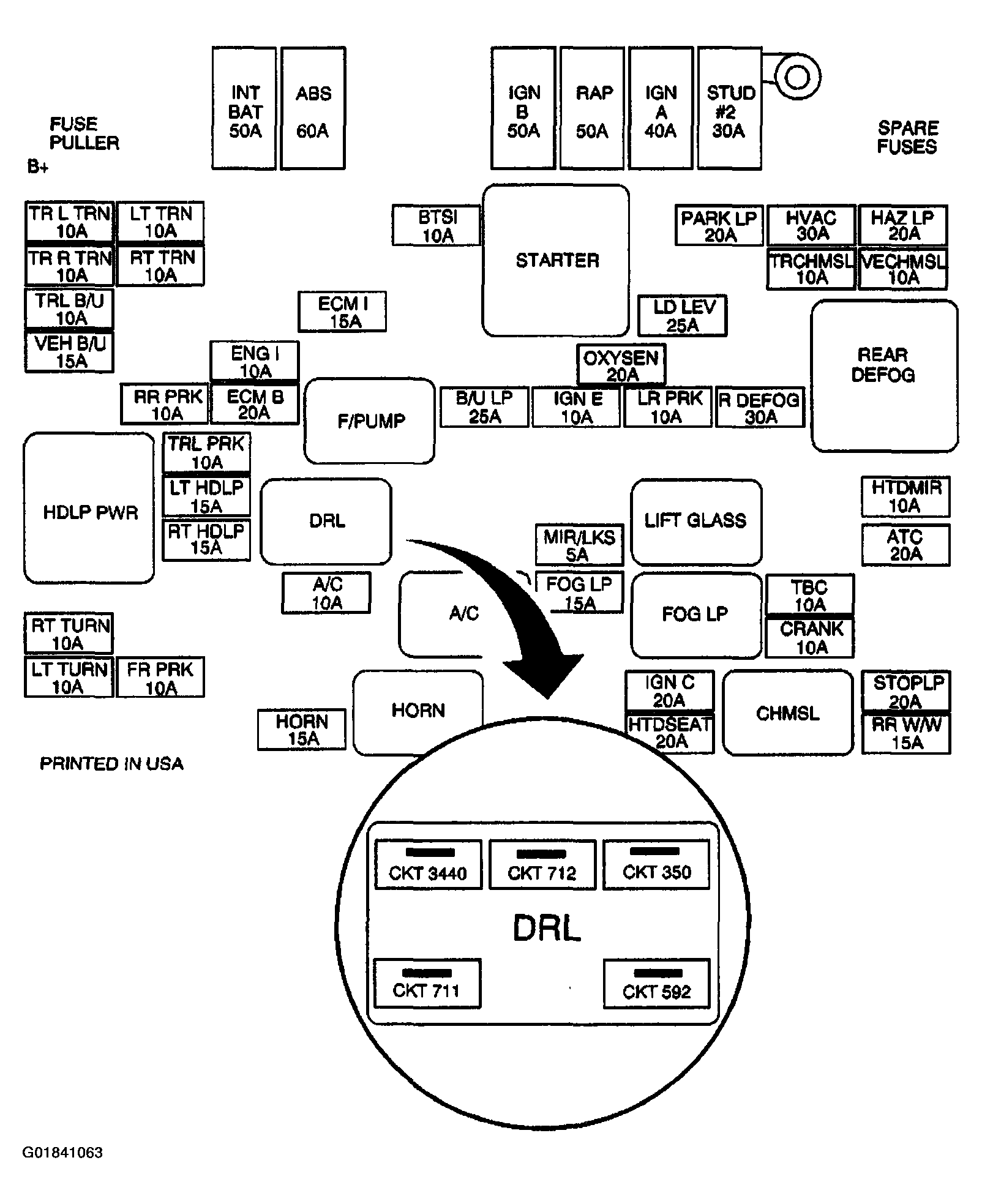

Fig 12: DRL Relay (Except Envoy)

Courtesy of GENERAL MOTORS CORP.
