Controlled/Monitored Subsystem References

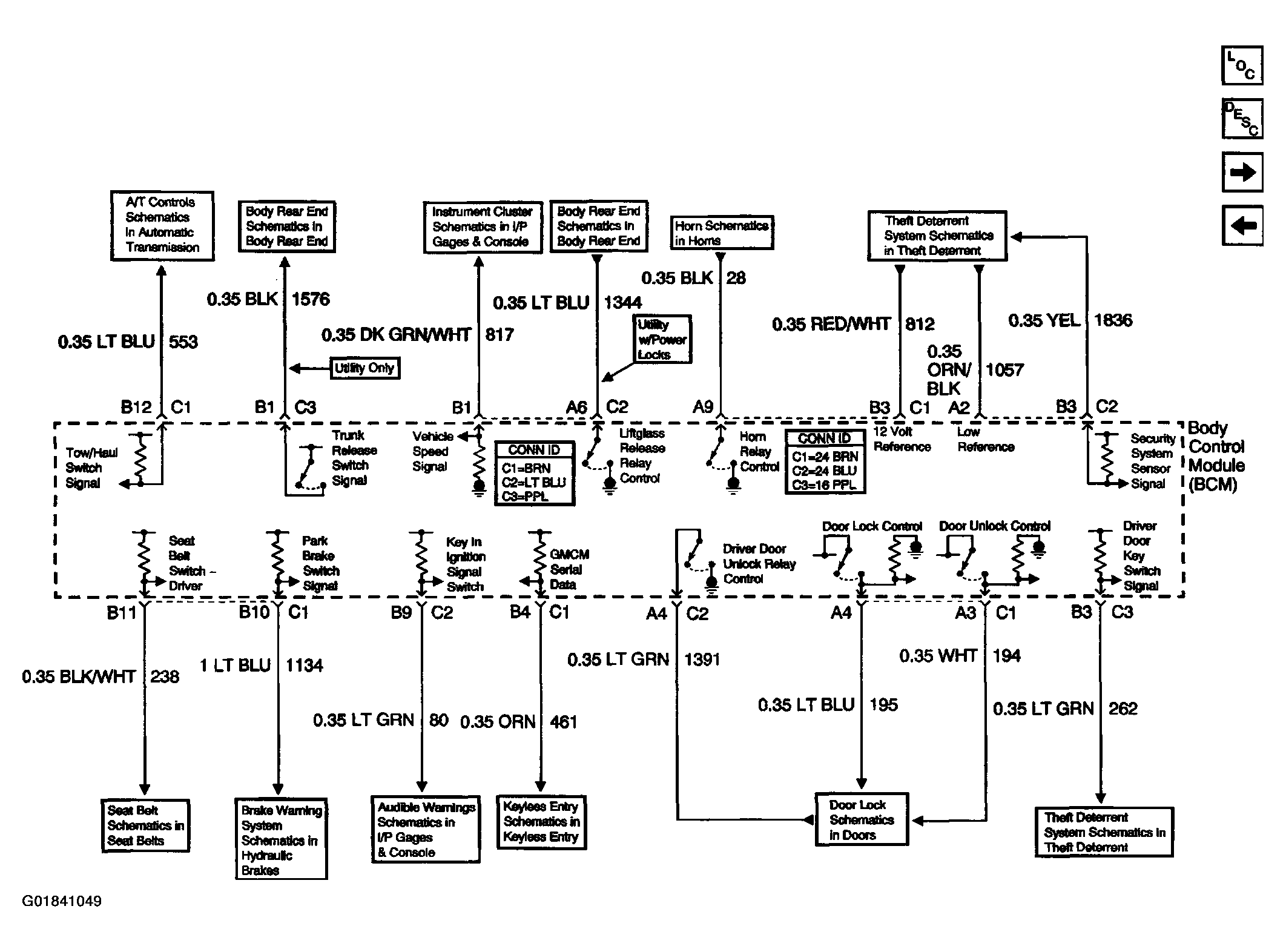

Fig 1: Body Control Module Schematics (Controlled/Monitored Subsystem References)
G01841049Courtesy of GENERAL MOTORS CORP.
