Power & Ground

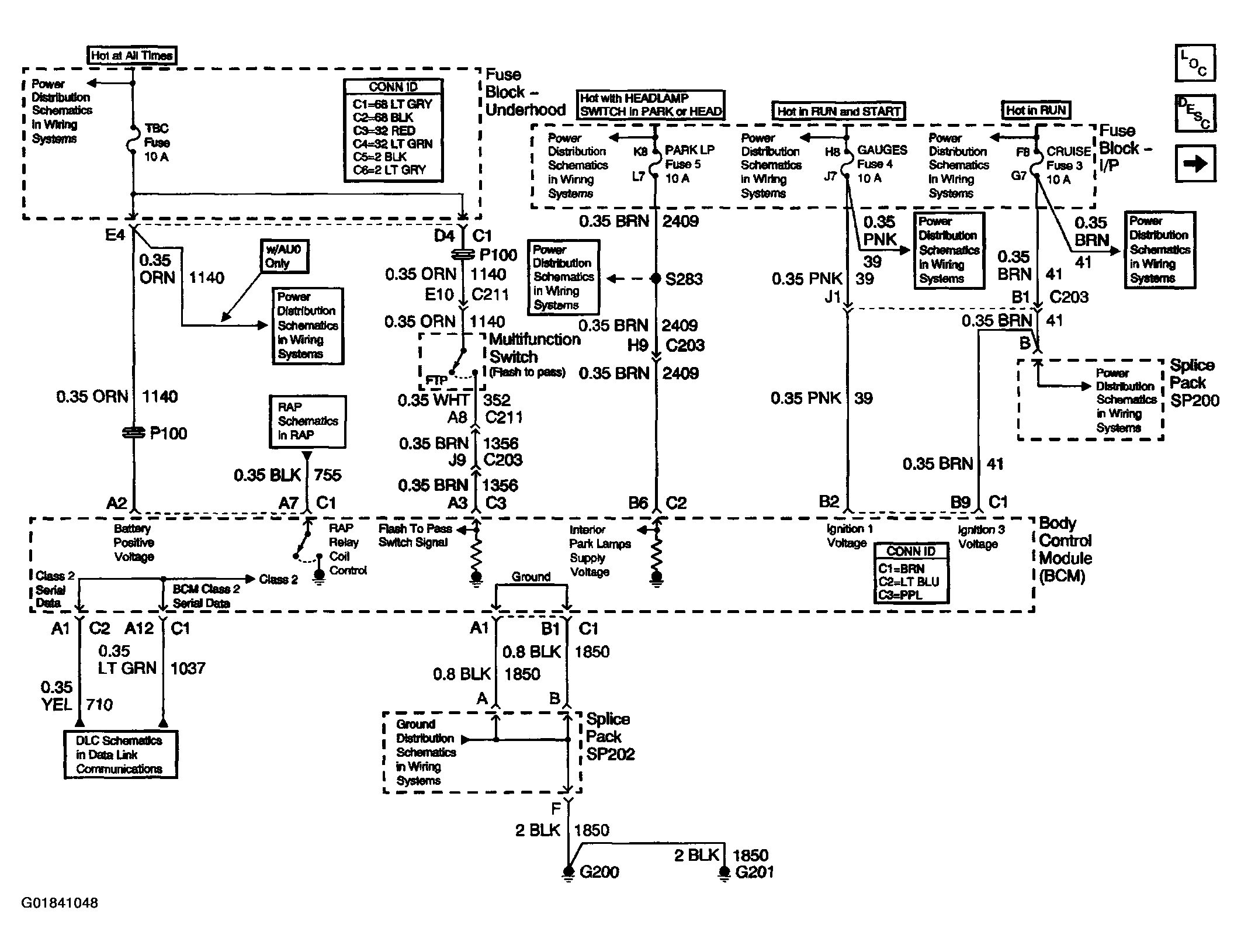

Fig 1: Body Control Module Schematics (Power & Ground)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
