Ambient Light Sensor

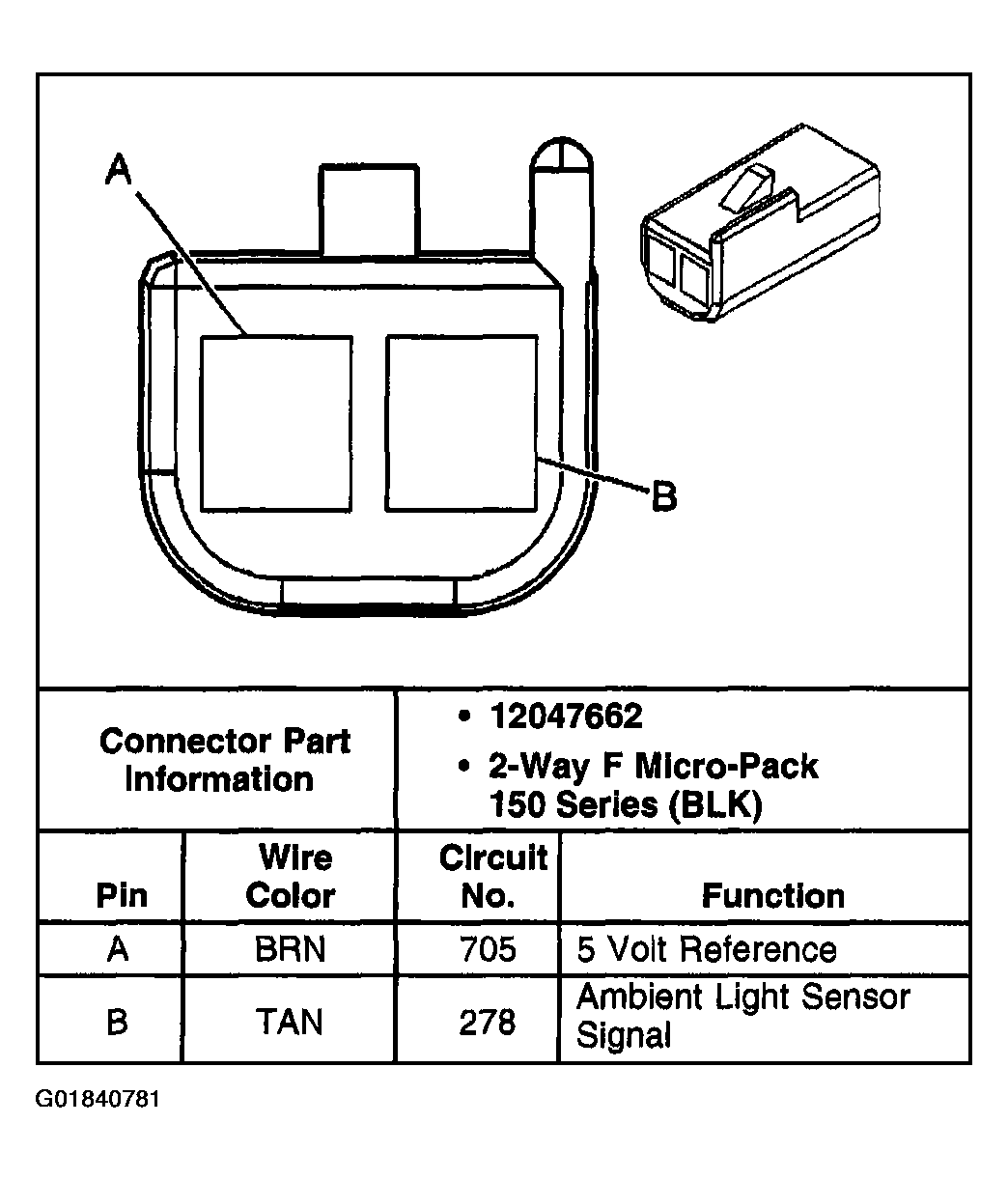

Fig 1: Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
