Stoplamp Switch - Automatic Transmission

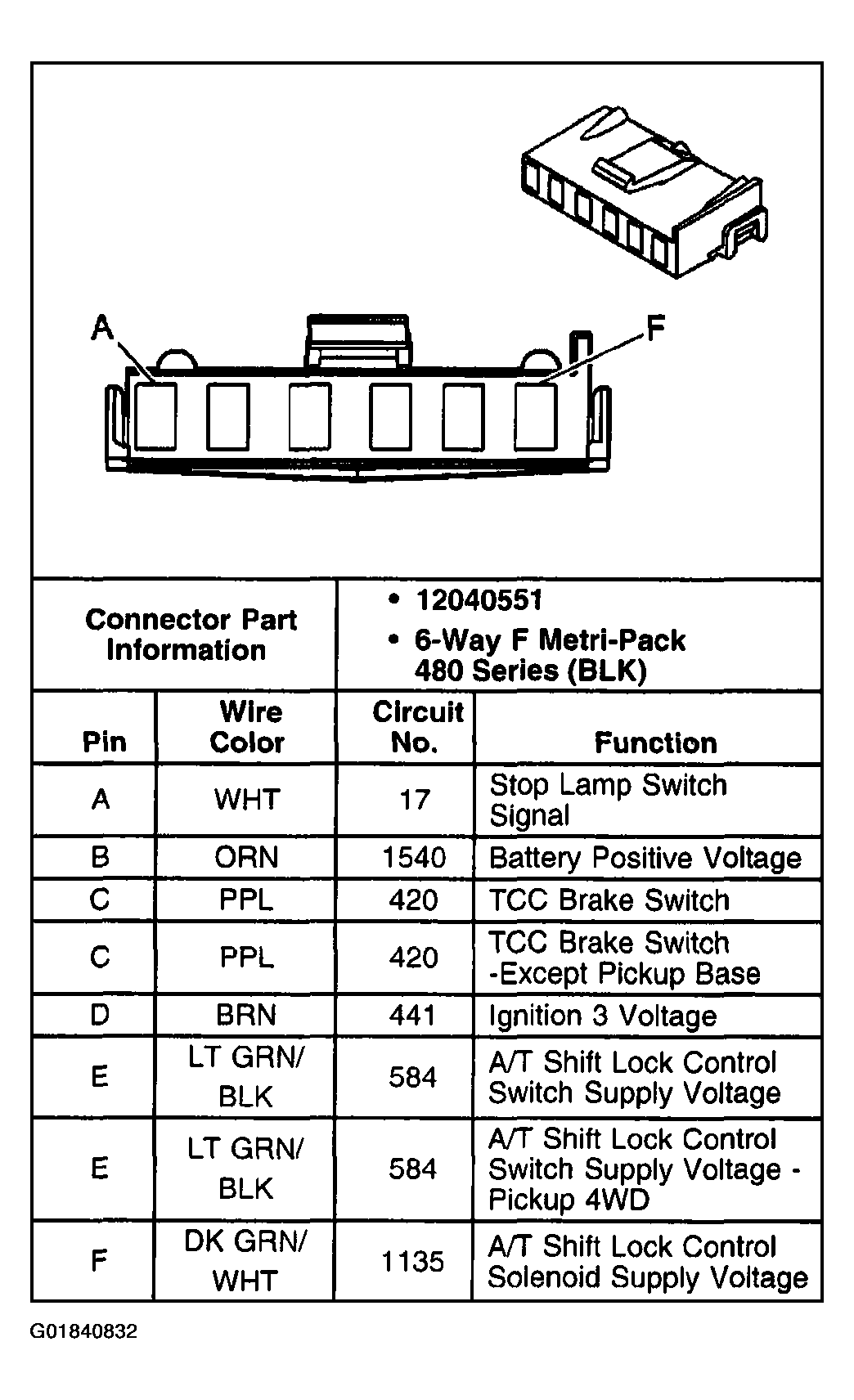

Fig 1: Stoplamp Switch - Automatic Transmission Only
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
