Body Control Module (BCM)

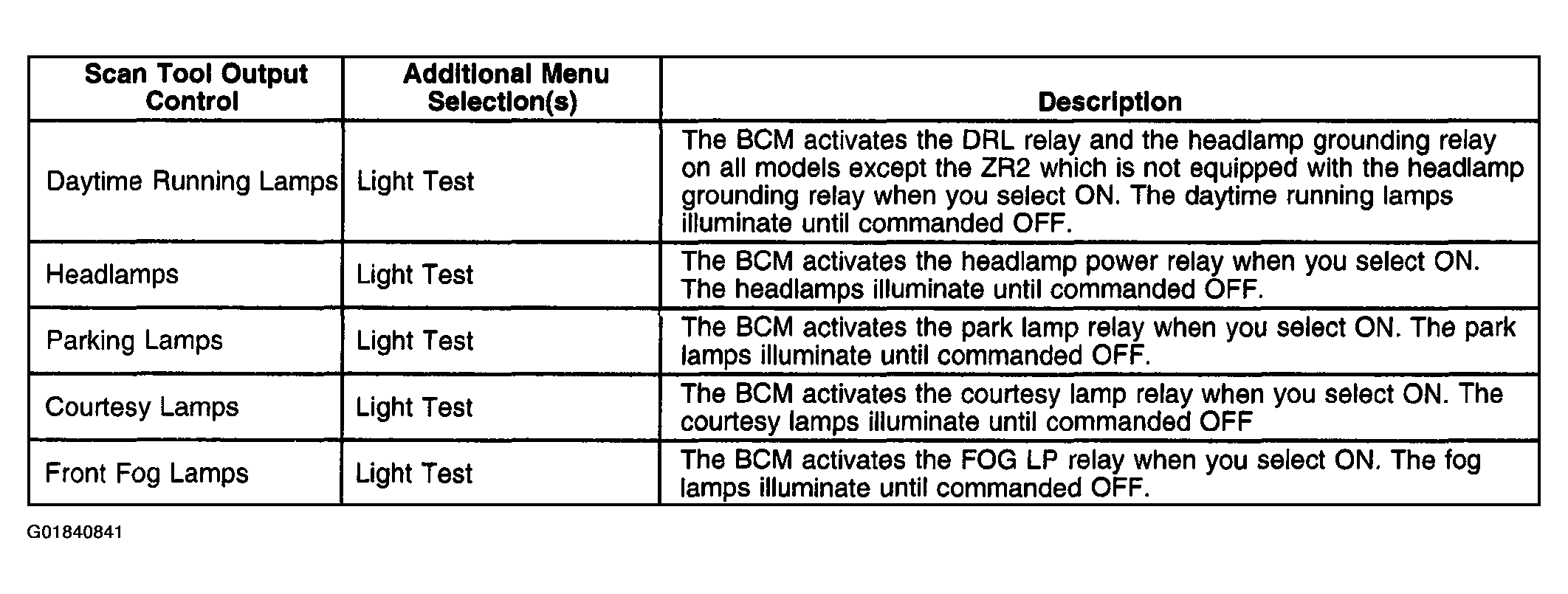

Fig 1: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
