Wiper/Washer System Component Views

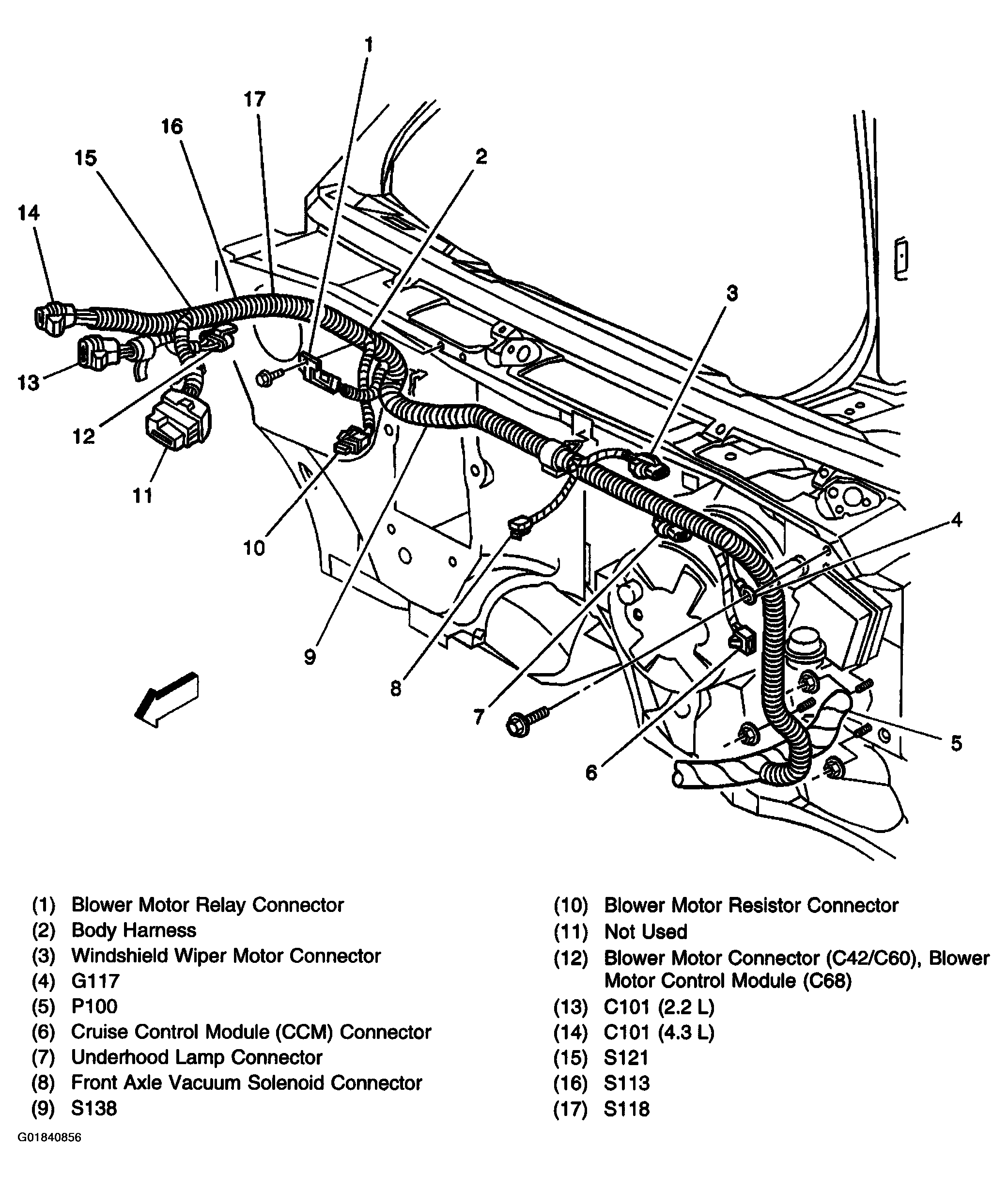

Fig 1: Body Harness To Cowl
G01840856Courtesy of GENERAL MOTORS CORP.

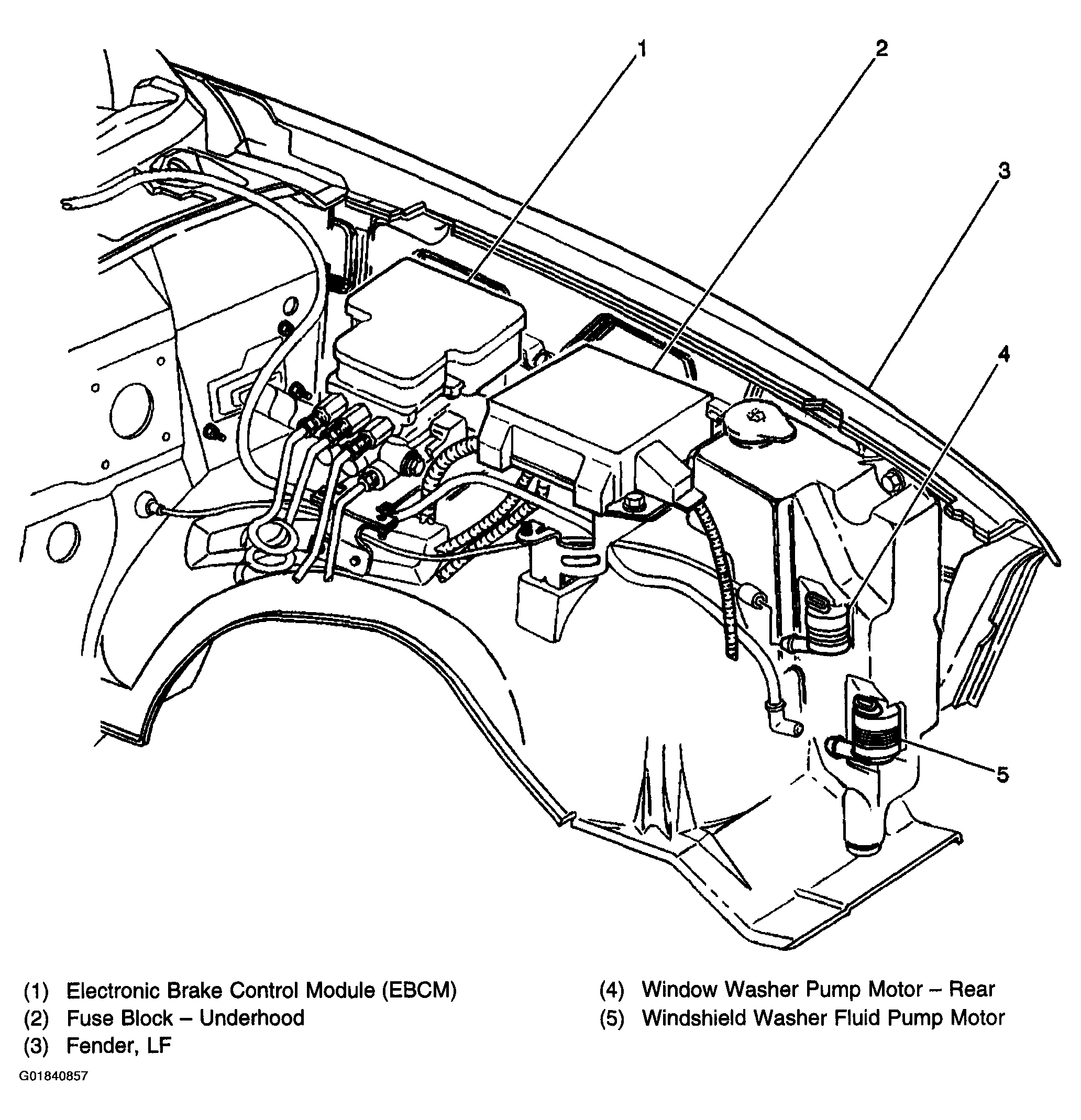

Fig 2: Body Wiring Harness, Washer Pump Motor
G01840857Courtesy of GENERAL MOTORS CORP.

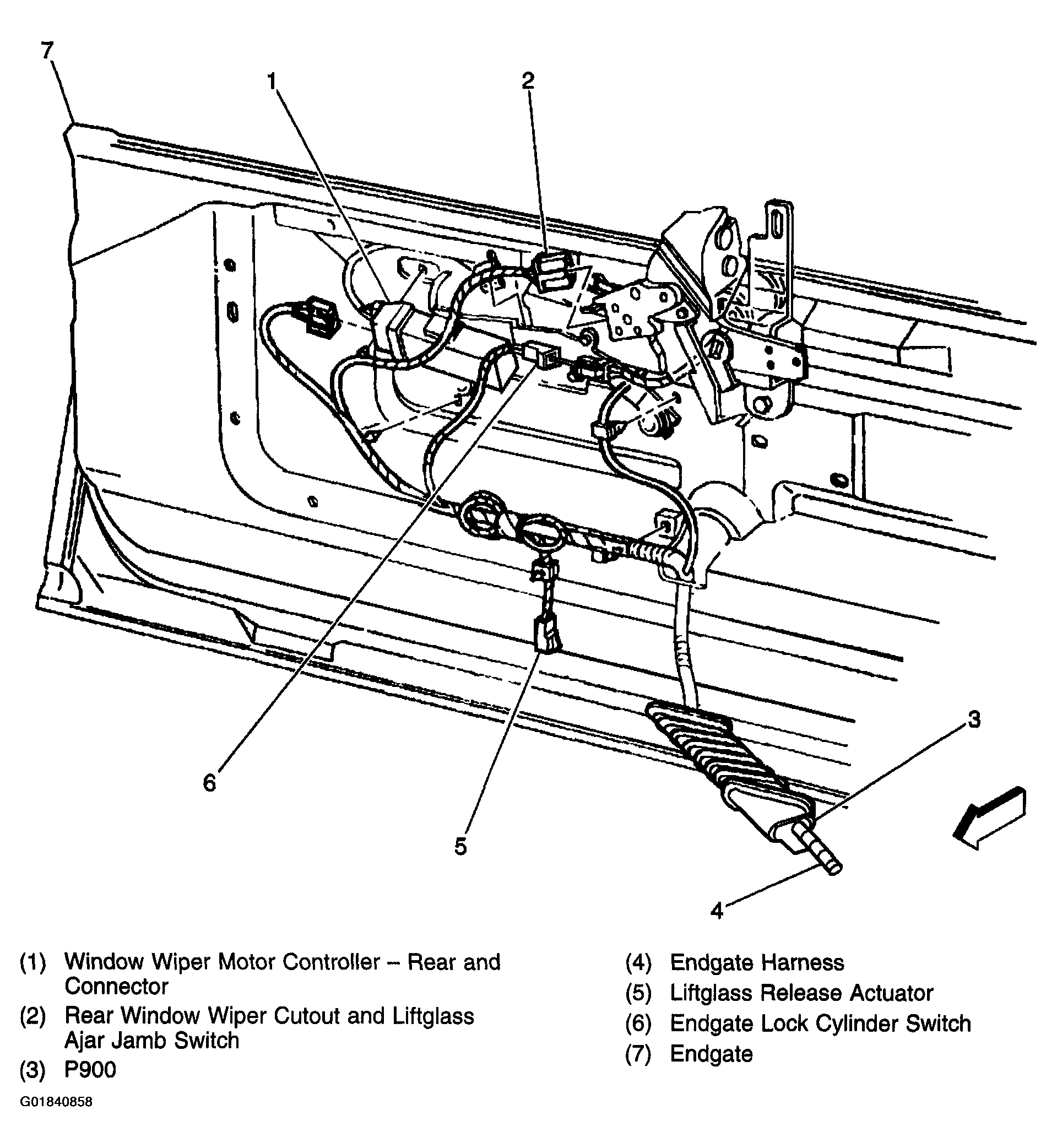

Fig 3: Endgate Harness Routing Views
G01840858Courtesy of GENERAL MOTORS CORP.
