Wiper/Washer System Schematics End Views

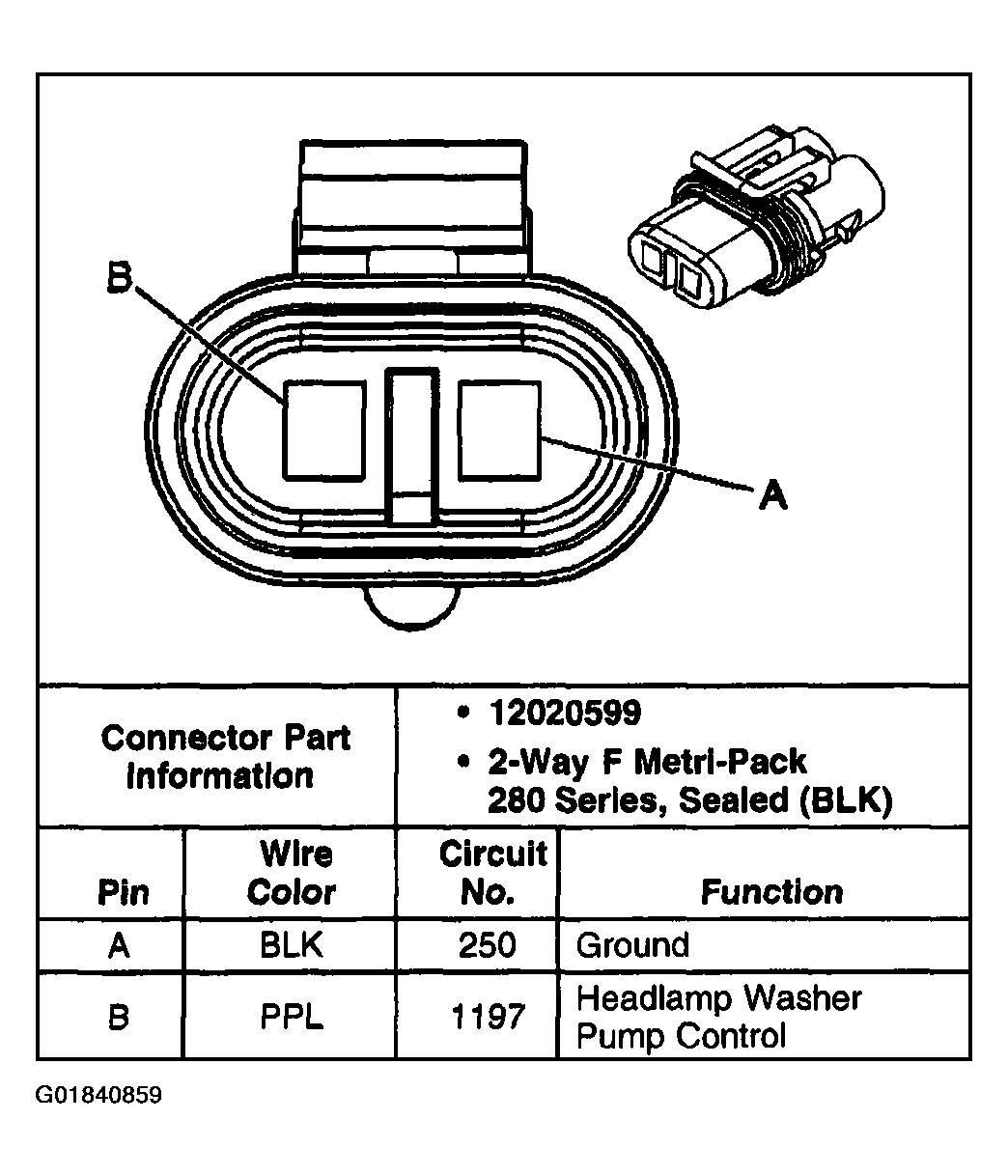

Fig 1: Headlamp Washer Fluid Pump (Export Only)

Courtesy of GENERAL MOTORS CORP.

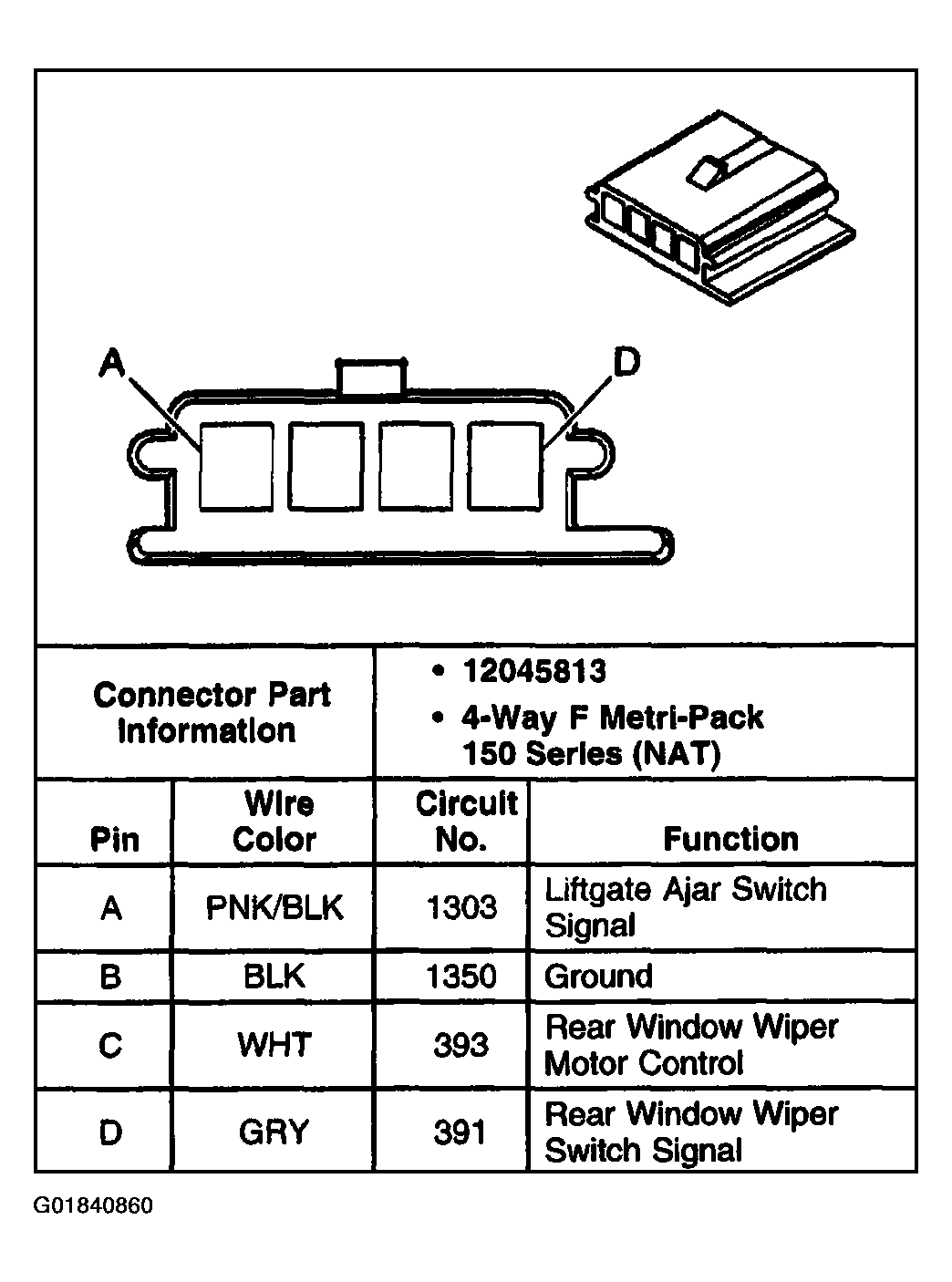

Fig 2: Rear Window Wiper Cutout & Liftglass Ajar Jamb Switch (Utility)

Courtesy of GENERAL MOTORS CORP.

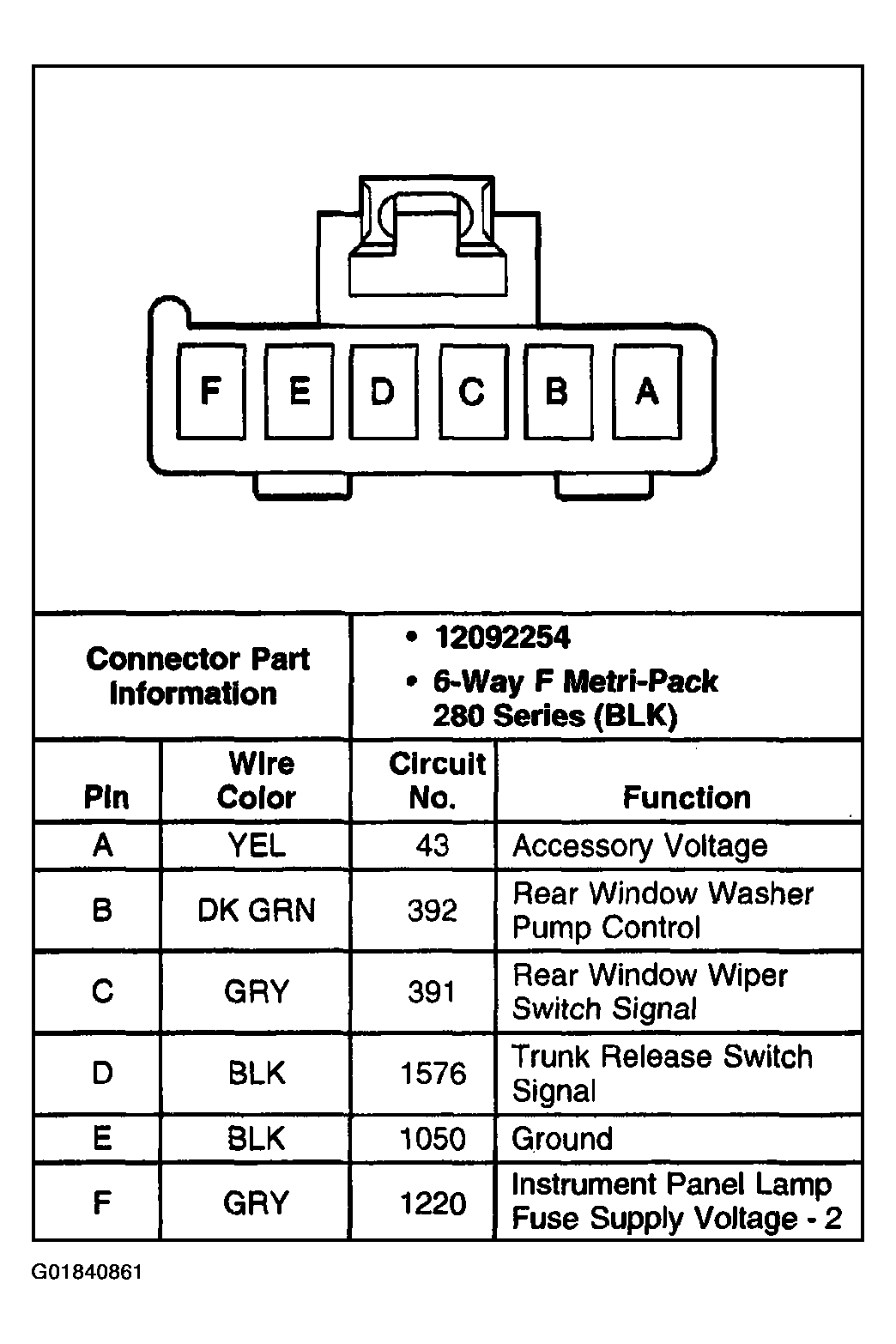

Fig 3: Rear Wiper/Washer & Endgate Window Release Switch

Courtesy of GENERAL MOTORS CORP.

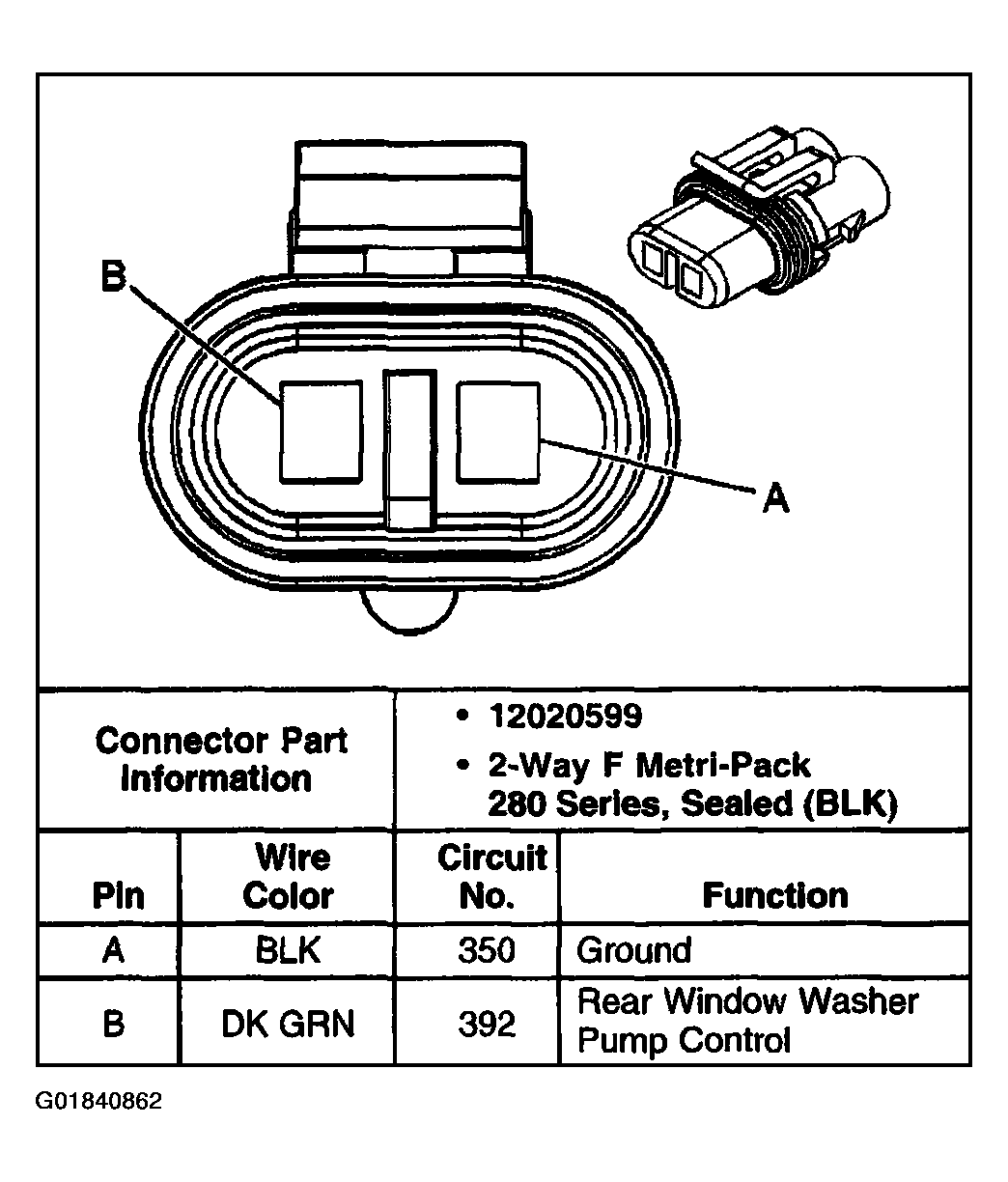

Fig 4: Window Washer Fluid Pump - Rear (Utility)

Courtesy of GENERAL MOTORS CORP.

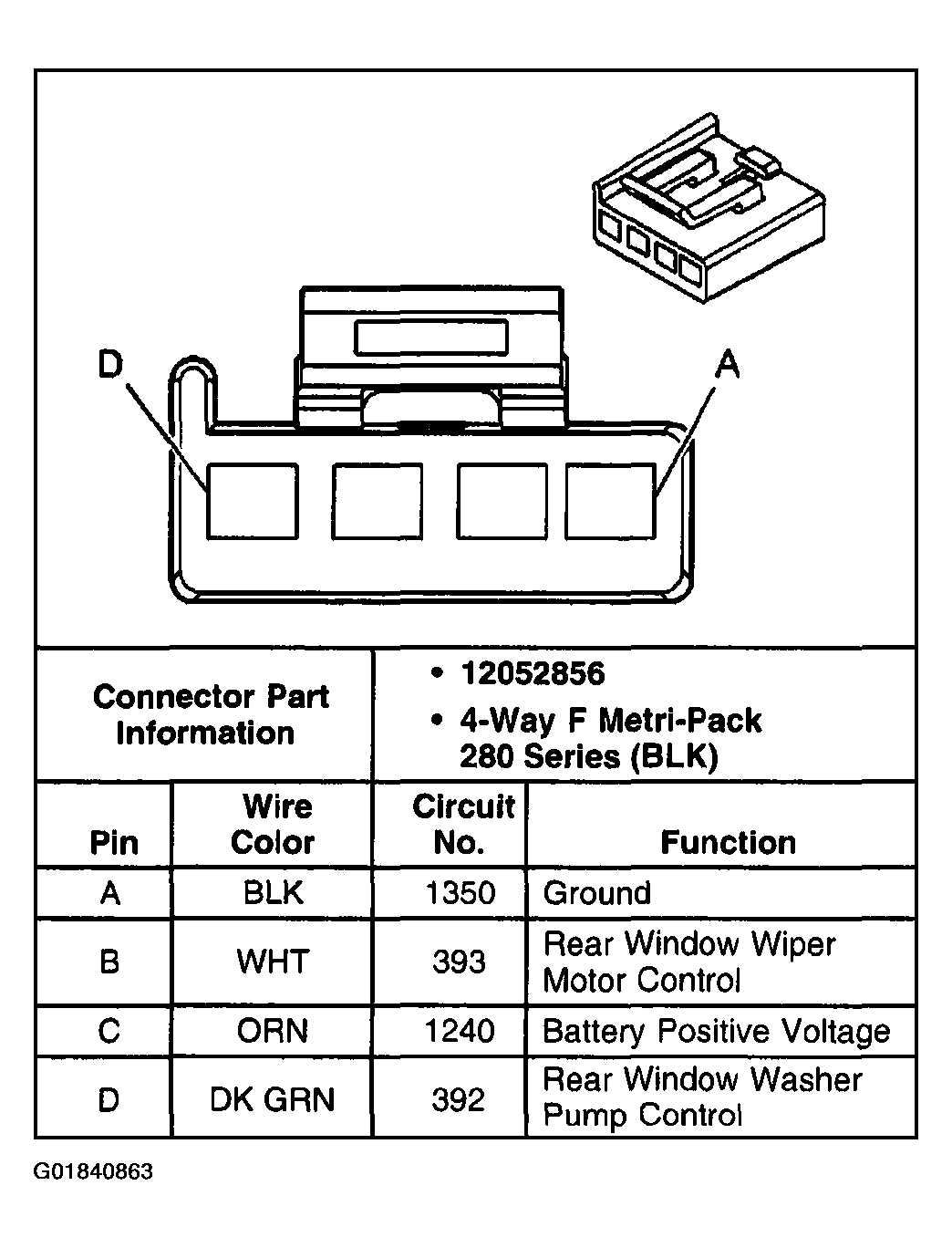

Fig 5: Window Wiper Motor Controller - Rear (Utility)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

Fig 7: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
