Installation Procedure

Install the circuit board and terminal module.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
Install the cover and three screws.
Tighten

Tighten the screws to 2.6 N.m (23 lb in).

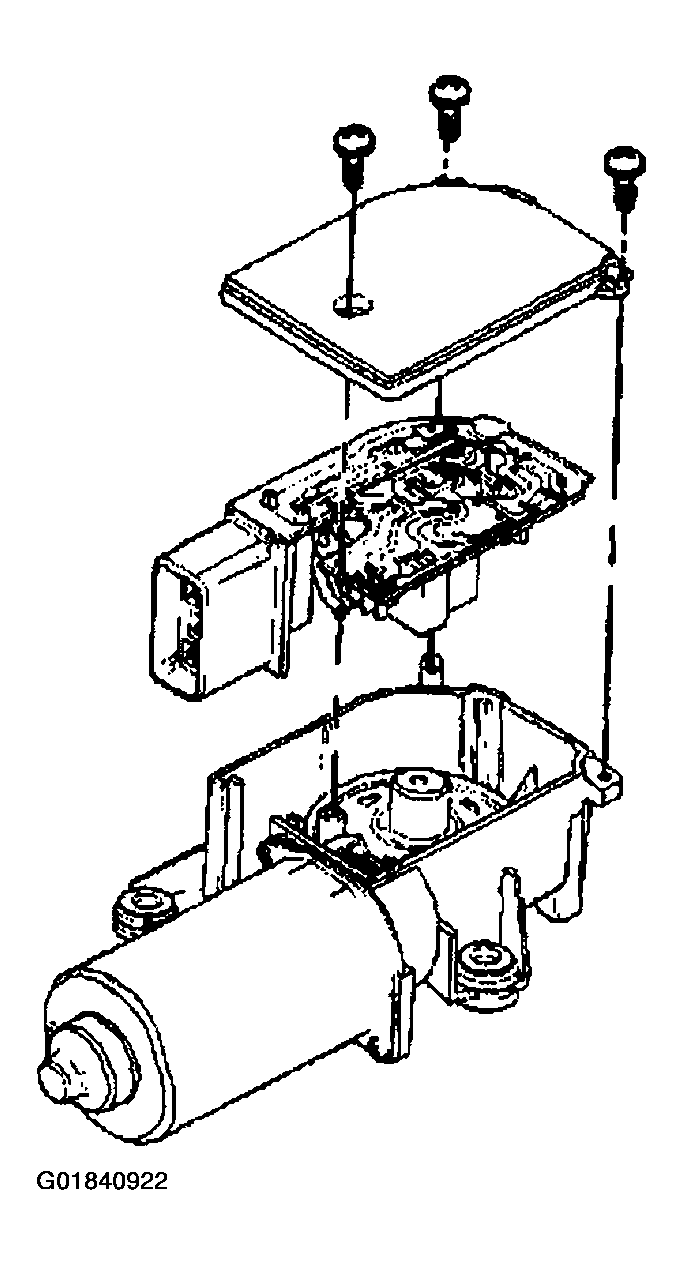

Fig 1: Locating Wiper Motor Circuit Board & Terminal Module
Courtesy of GENERAL MOTORS CORP.
Install the wiper motor electrical connector.
