2002
>>
Jimmy 2D Utility, Part Time, Standard
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Steering Wheel & Steering Column
>>
Component Locator
>>
Steering Column Disassembled View (Column Shift & Floor Shift Tilt)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Steering Column Disassembled View (Column Shift & Floor Shift Tilt)

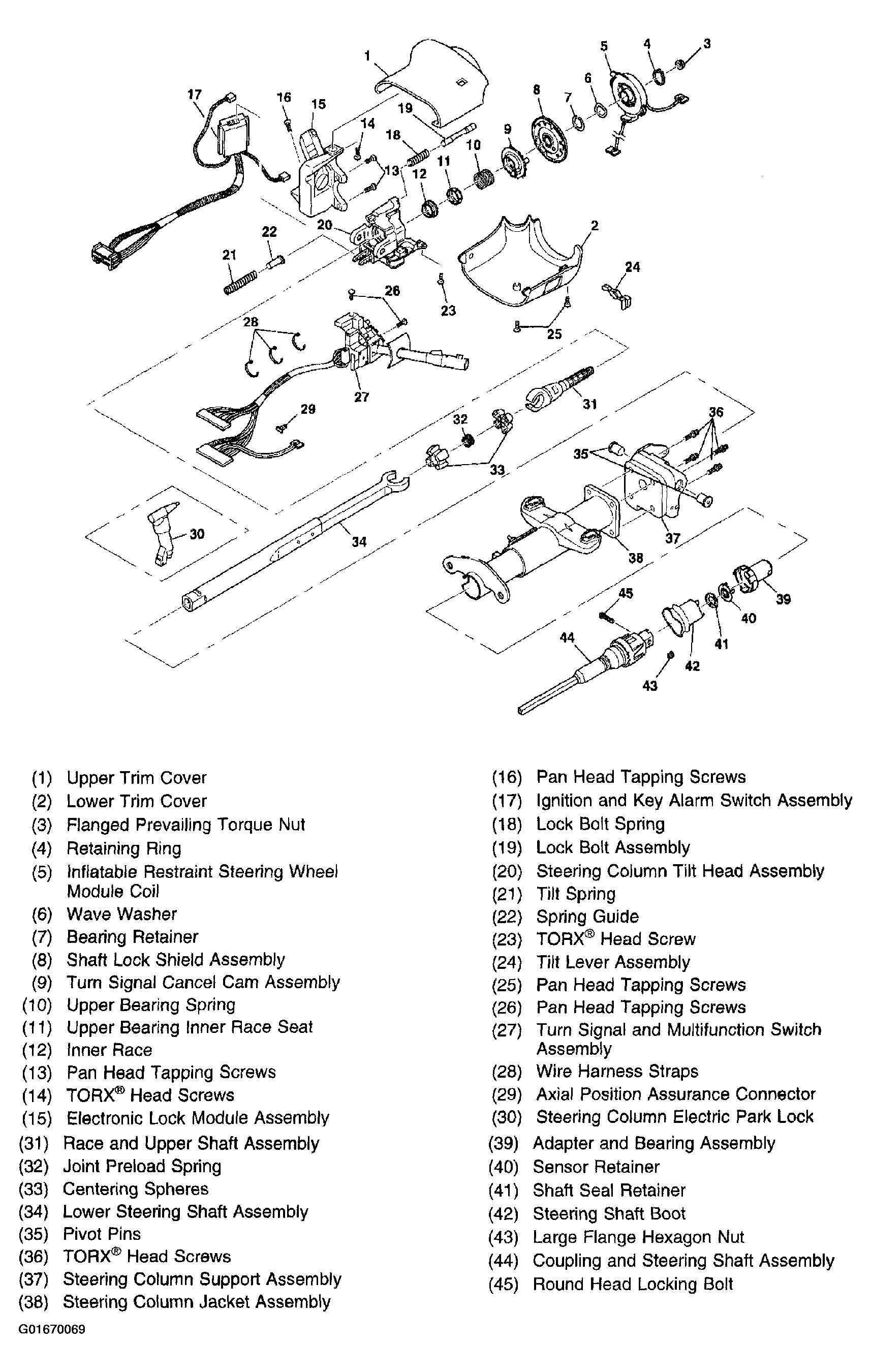

Fig 1: Tilt Steering Column Disassembled View
Courtesy of GENERAL MOTORS CORP.

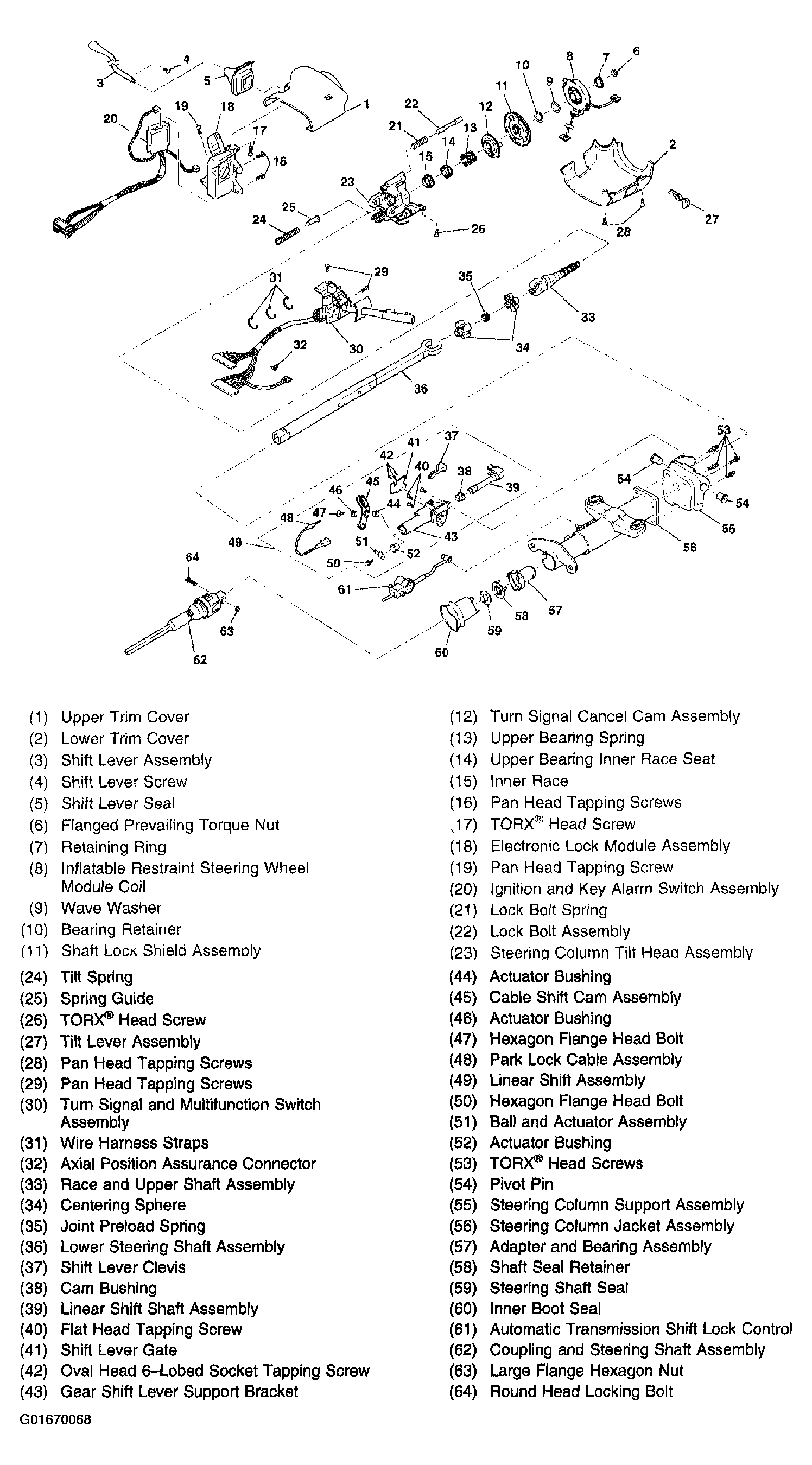

Fig 2: Floor Shift (Tilt Steering Column) Disassembled View
Courtesy of GENERAL MOTORS CORP.
