Electronic Column Lock Module - Assemble - Off Vehicle (Column Shift)

Tools Required

J 42759  Ignition Switch Connector Release Tool

1. Align the electronic lock module assembly (1) with the steering column tilt head assembly.
   NOTE: Refer to FASTENER NOTICE .

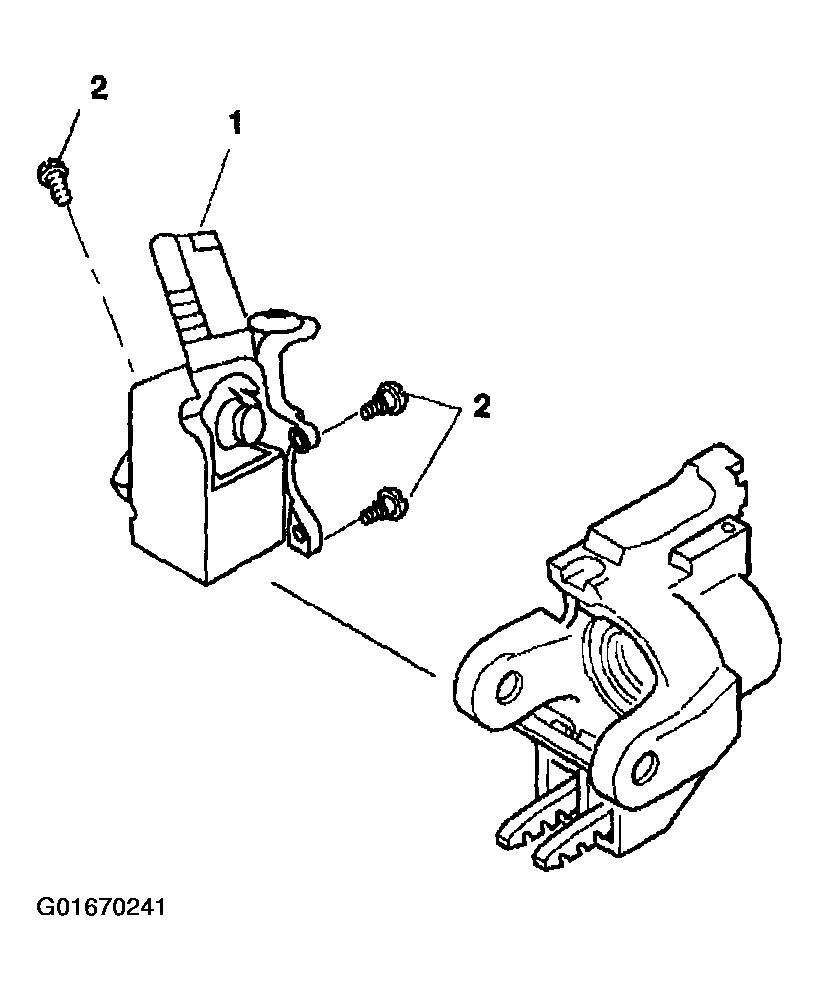

2. Screw the 3 TORX® screws (2) into the electronic lock module assembly (1).

   Tighten

   Tighten the 3 TORX® screws to 7 N.m (62 lb in).

   Fig 1: Electronic Lock Module Assembly & Screws (Column Shift)

   Courtesy of GENERAL MOTORS CORP.

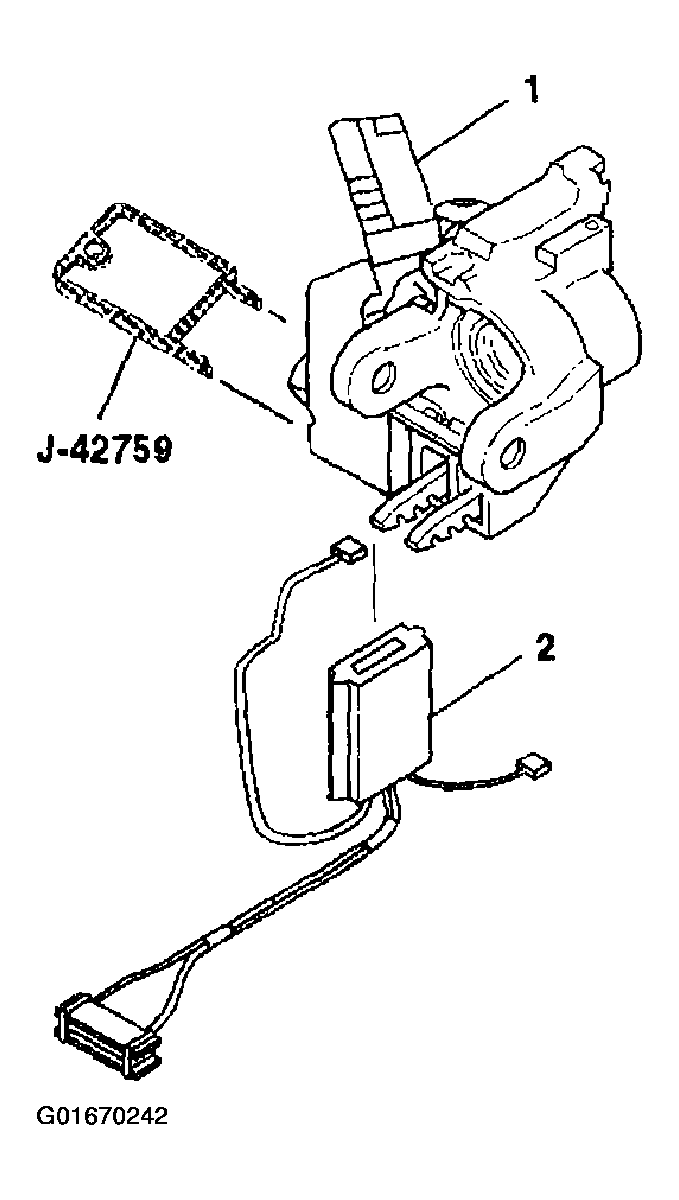

3. Insert J 42759  into the electronic lock module assembly (1) and slide the ignition and key alarm switch assembly (2) in.
   Fig 2: Electronic Lock Module Assembly & Ignition/Key Alarm Switch Assembly (Column Shift)

   Courtesy of GENERAL MOTORS CORP.

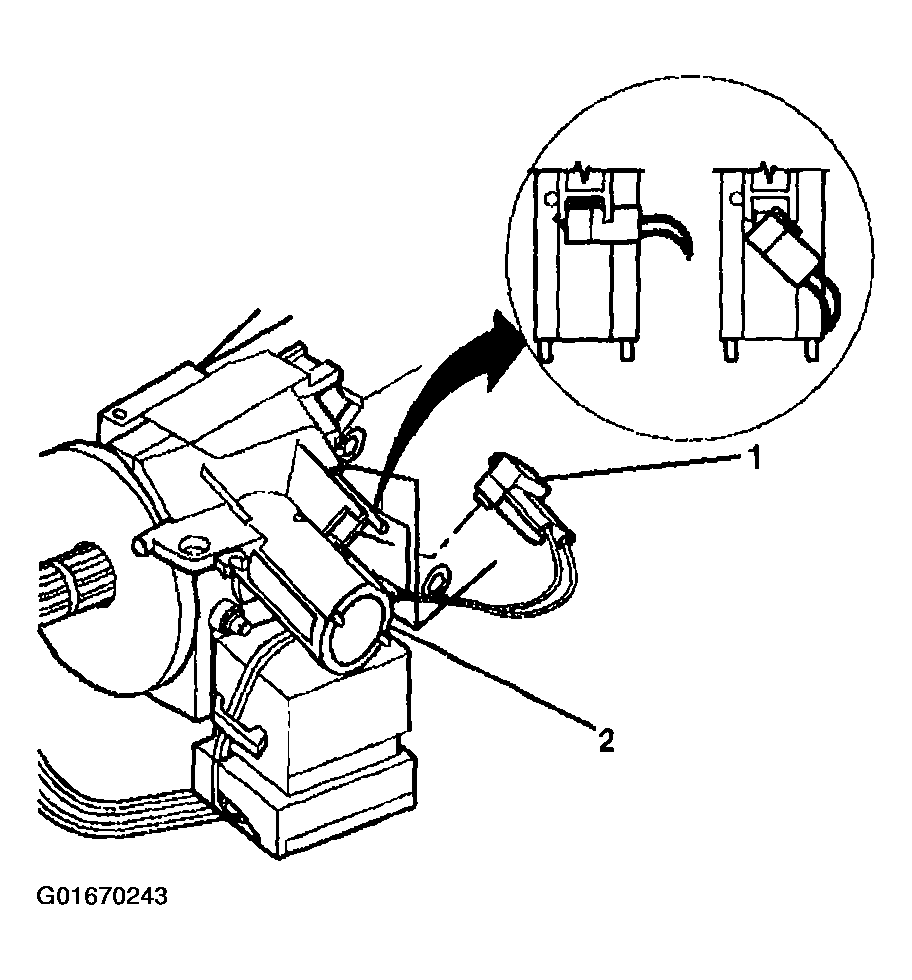

4. Push the key alarm connector (1) into the electronic lock module assembly (2).
5. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.
6. Install the passkey connector into the electronic lock module assembly (2).
   Fig 3: Installing Key Alarm Connector To Electronic Lock Module Assembly (Column Shift)

   Courtesy of GENERAL MOTORS CORP.
7. Place steering column lock cylinder set into the OFF position.
8. Place the shift lever clevis into the PARK position.

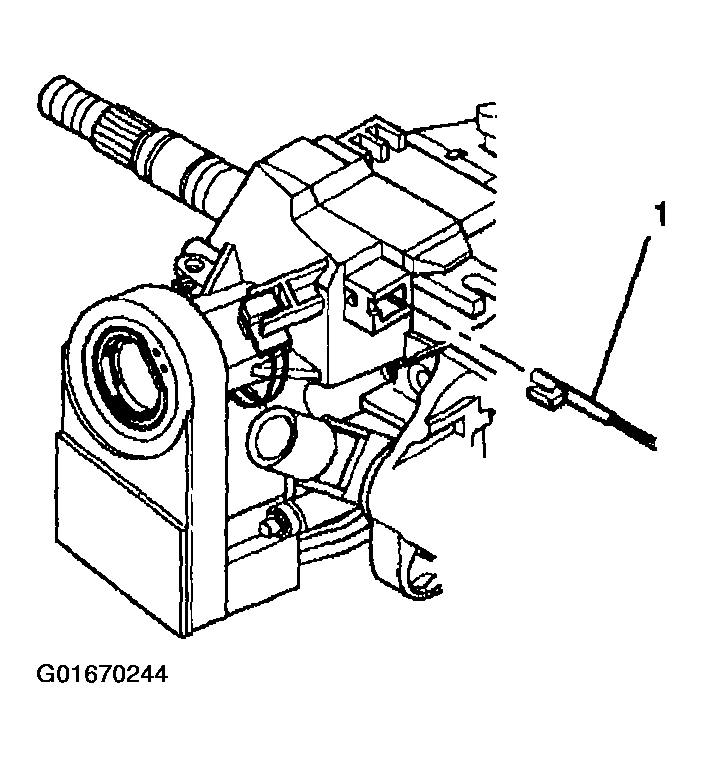

9. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the electronic lock module assembly.

   Important:  The abrasion sleeve must be installed back onto the steering column wire harness assembly. The electronic lock module assembly wires and connector must be hanging out of the middle of the abrasion sleeve.

10. Install the upper tilt head components. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle .
11. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
