Installation Procedure

Slide the memory seat module into the bracket until the module is seated.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
Install the memory seat module and bracket to the seat adjuster frame assembly with 2 screws.
Tighten

Tighten the memory seat module retaining screws to 3 N.m (26 lb in).

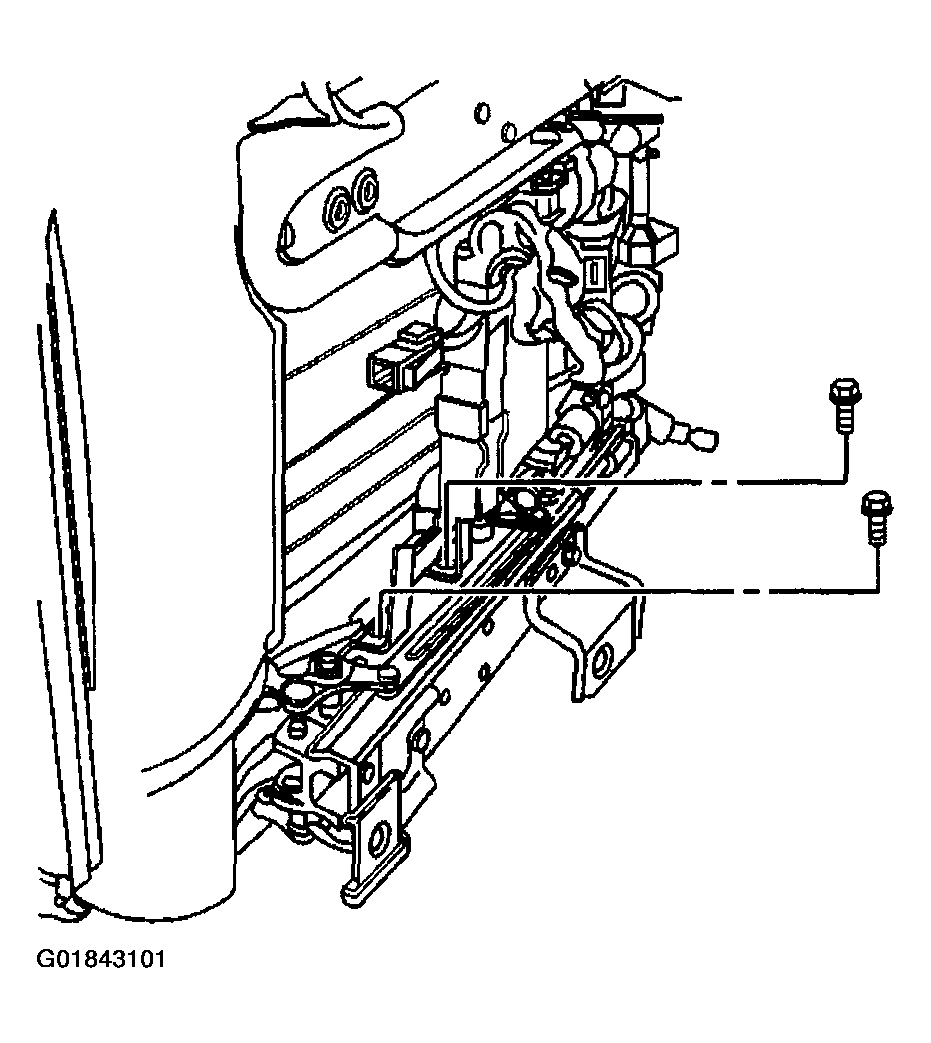

Fig 1: Locating Memory Module Bracket-To-Seat Adjuster Frame Screws
Courtesy of GENERAL MOTORS CORP.
Install the memory seat module harness connectors.

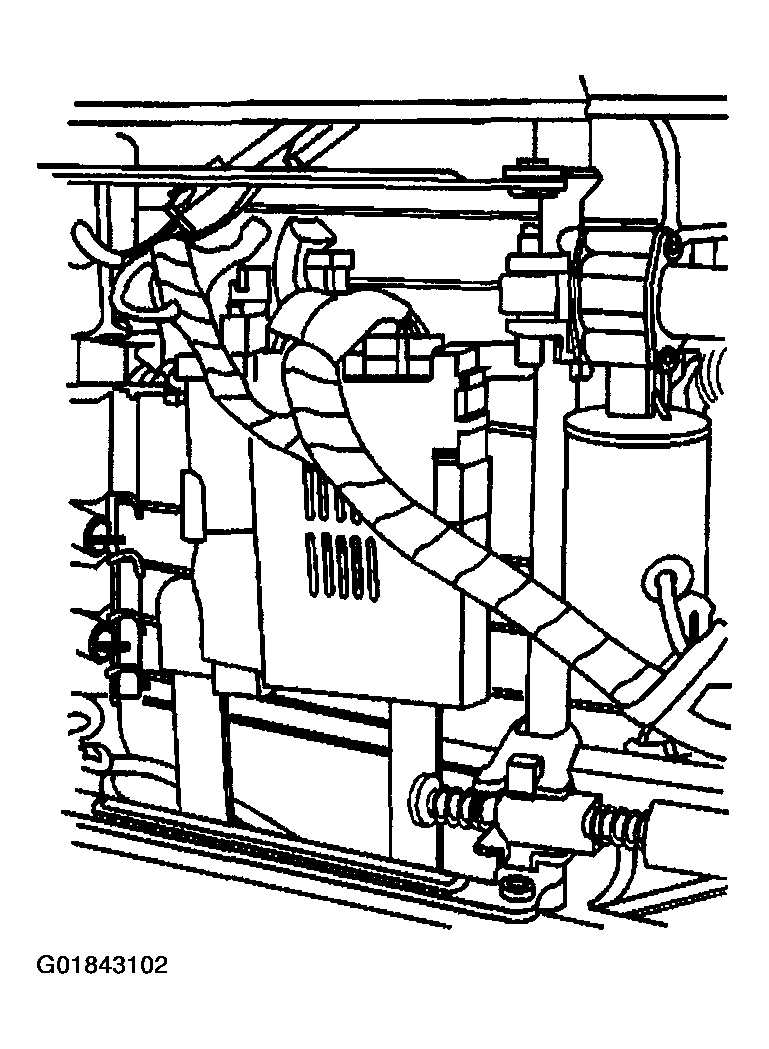

Fig 2: Locating Memory Seat Control Module Electrical Harness Connectors
Courtesy of GENERAL MOTORS CORP.
Install the front seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
