Turn Signal/Hazard Flasher Module Connector End View

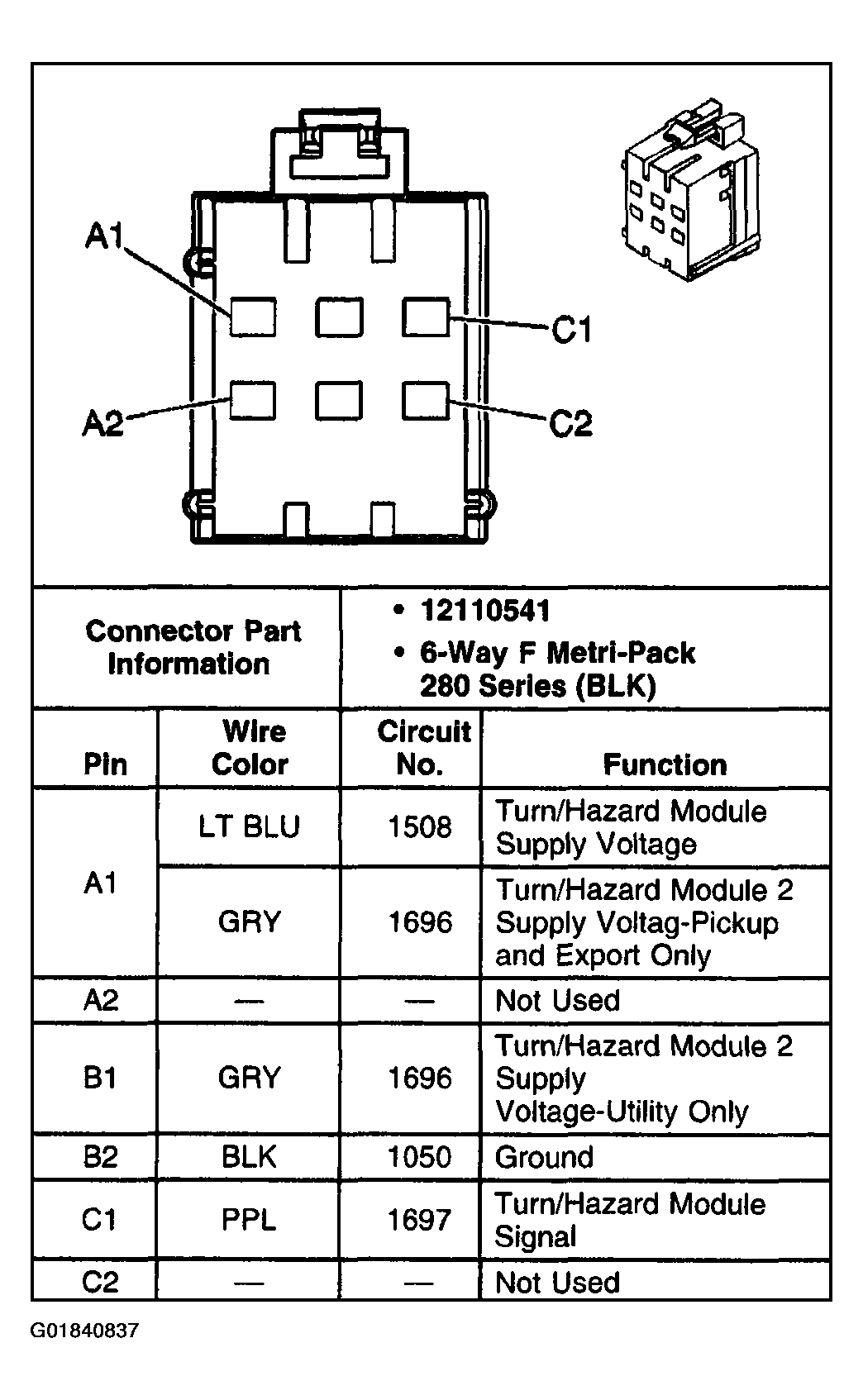

Fig 1: Turn Signal/Hazard Flasher Module Connector End View
G01840837Courtesy of GENERAL MOTORS CORP.
