Electronic Brake Control Module (EBCM) Connector End View C1 End View

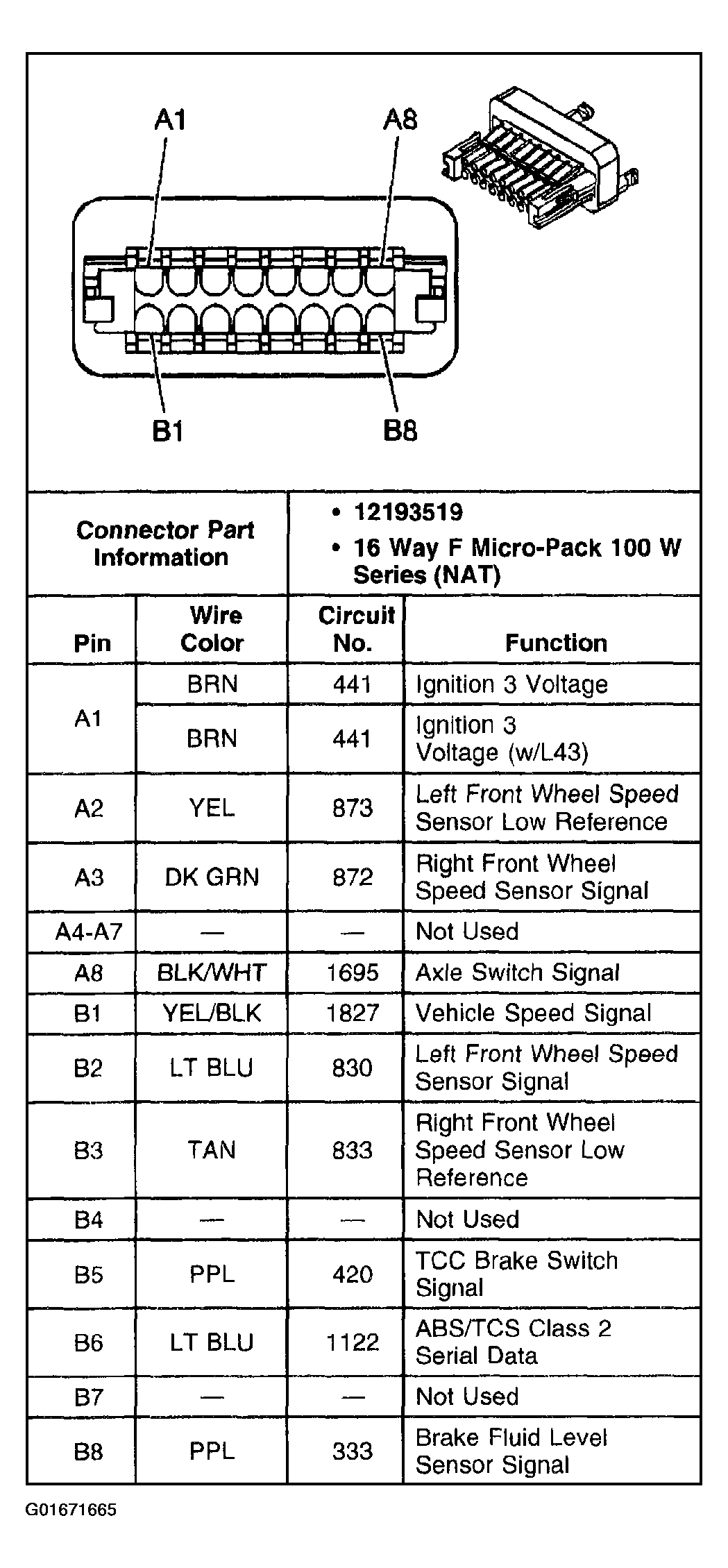

Fig 1: Electronic Brake Control Module (EBCM) Connector End View C1 End View
G01671665Courtesy of GENERAL MOTORS CORP.
