Identifying O2S Bank 1; Sensor 1 Harness Connector End View

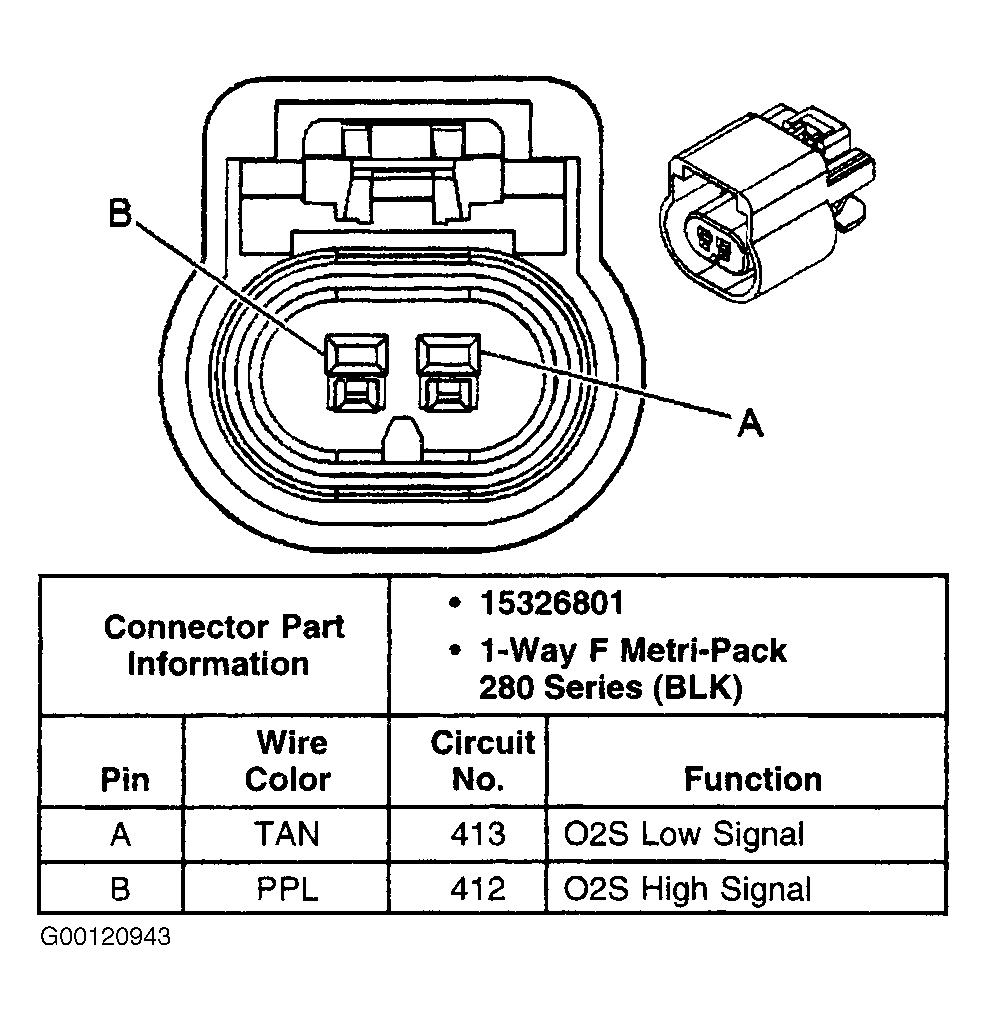

Fig 1: Identifying O2S Bank 1; Sensor 1 Harness Connector End View
G00120943Courtesy of GENERAL MOTORS CORP.
