Seat Adjuster Memory Module Connector Connector End View - C2

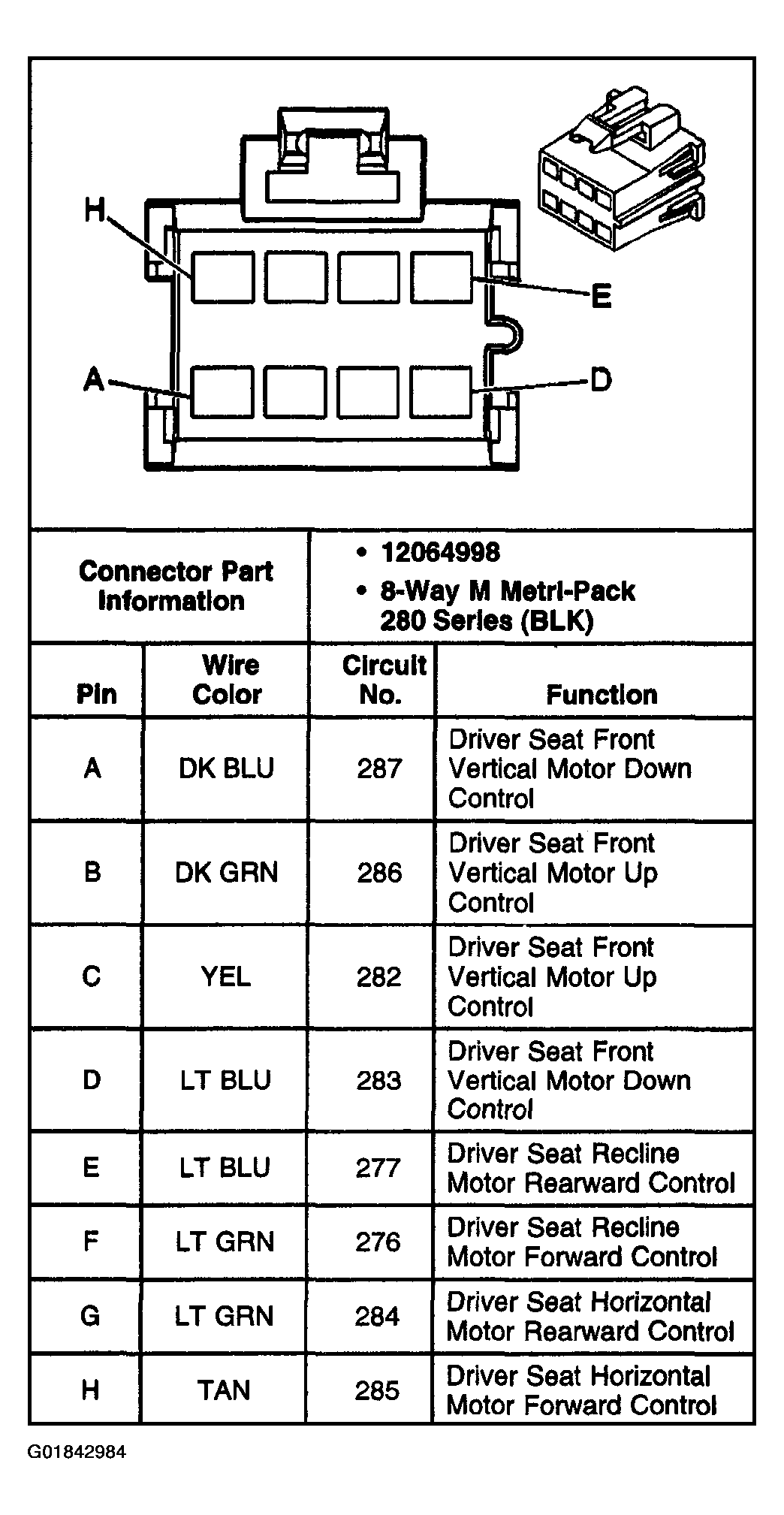

Fig 1: Seat Adjuster Memory Module Connector Connector End View - C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
