Seat Front Vertical Motor Connector End View - Front Passenger (w/o Memory)

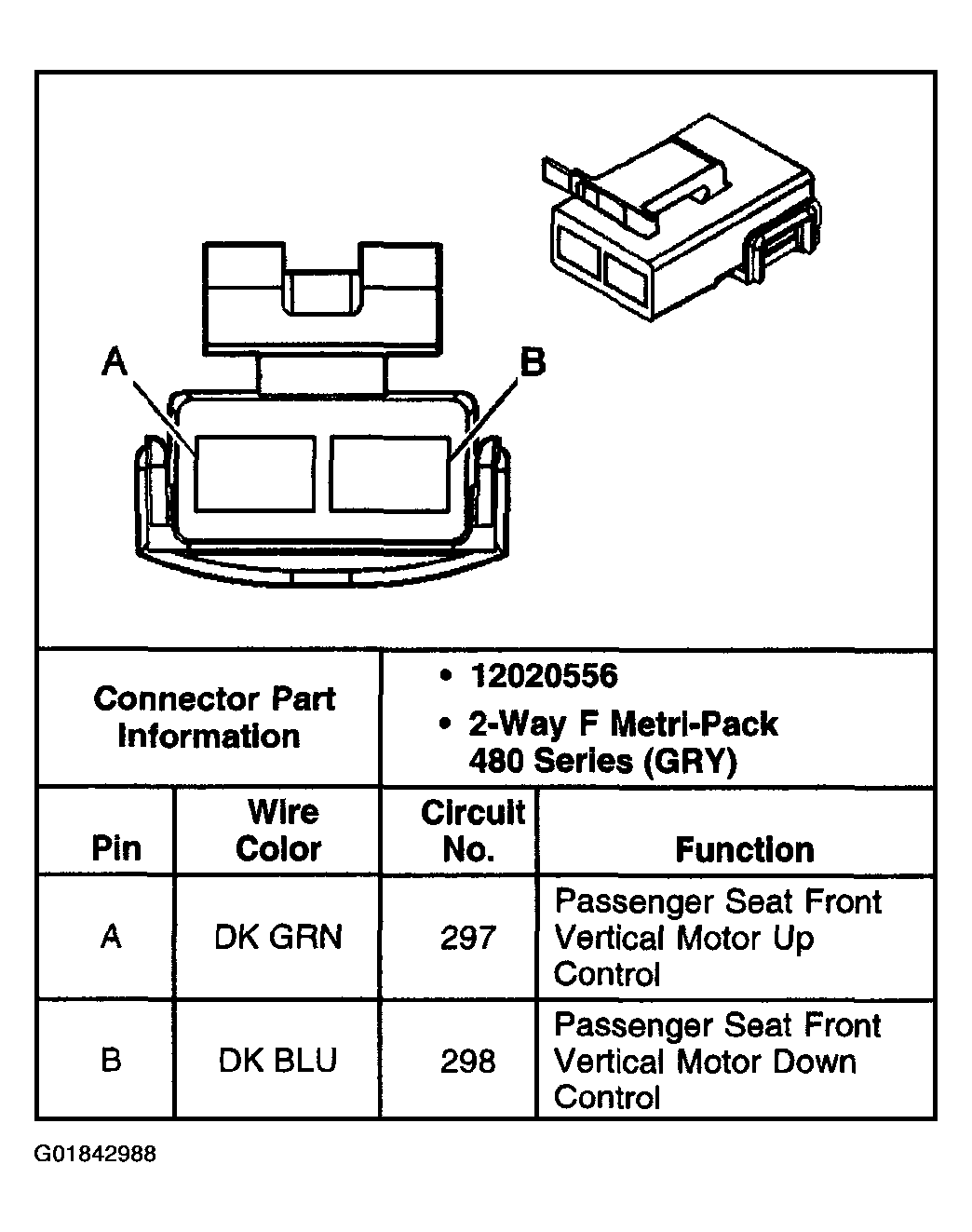

Fig 1: Seat Front Vertical Motor Connector End View - Front Passenger (w/o Memory)
G01842988Courtesy of GENERAL MOTORS CORP.
