Seat Horizontal Motor Connector End View - Front Passenger

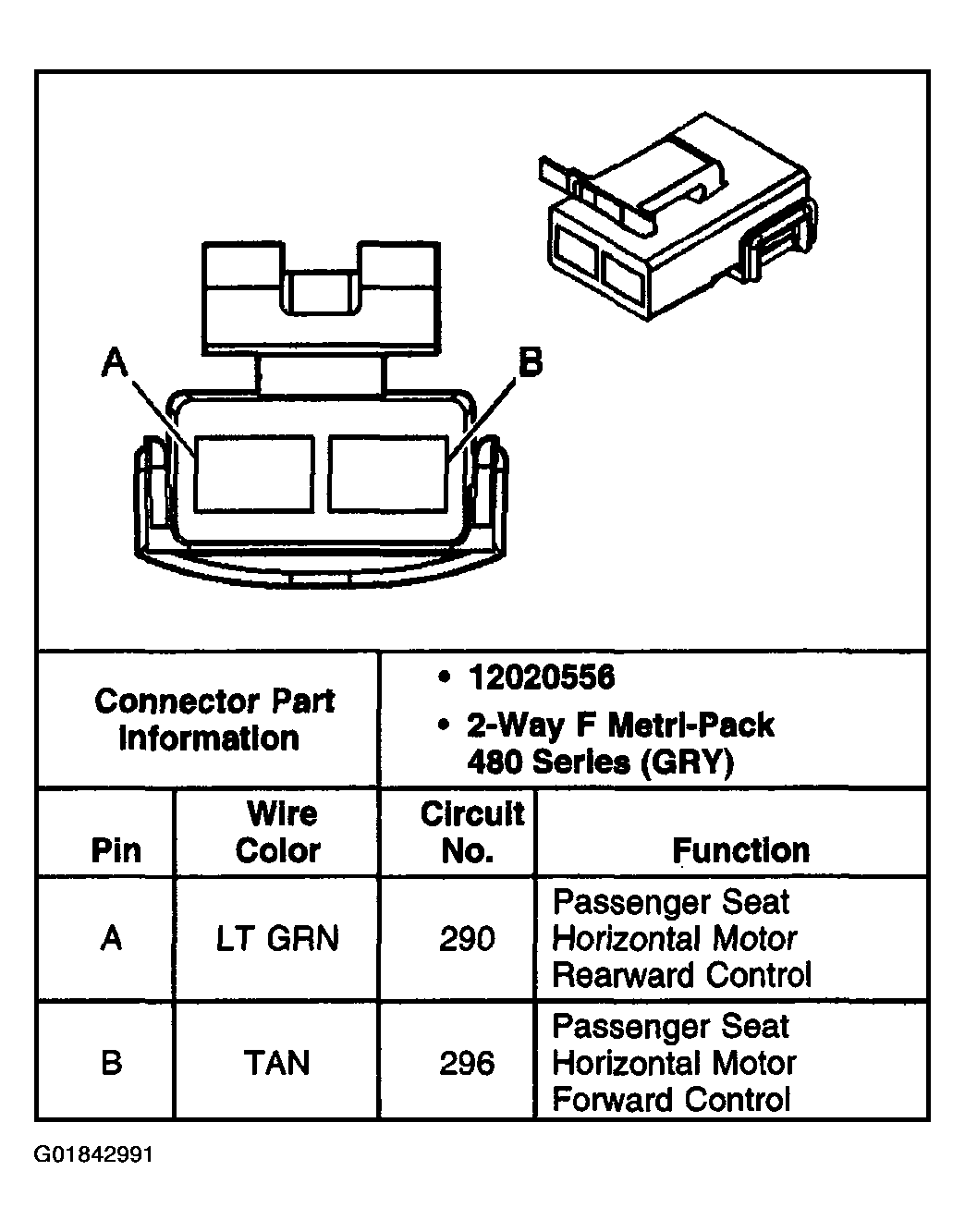

Fig 1: Seat Horizontal Motor Connector End View - Front Passenger
G01842991Courtesy of GENERAL MOTORS CORP.
