Tow/Haul Switch Connector End View

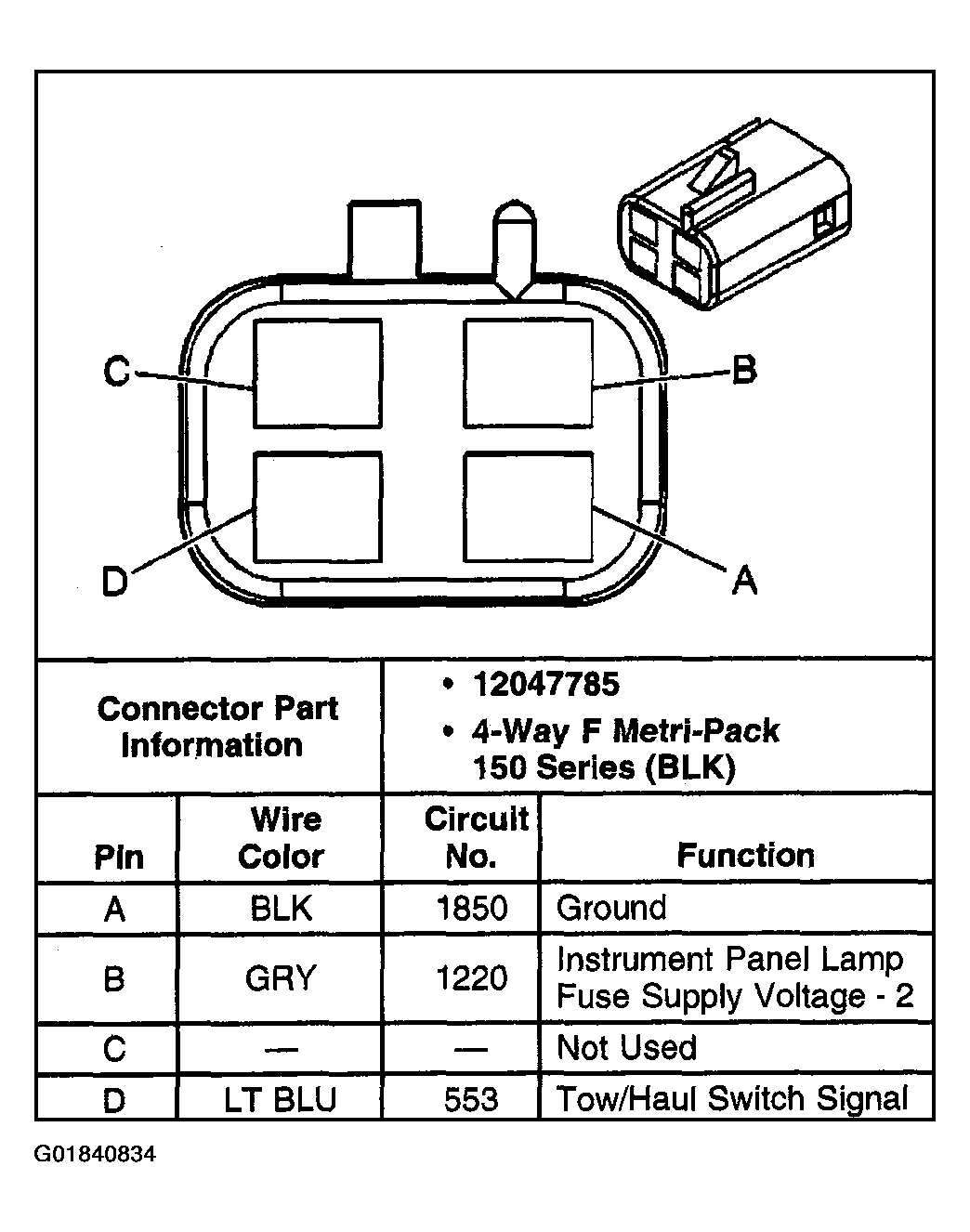

Fig 1: Tow/Haul Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
