Transfer Case Control Component Views

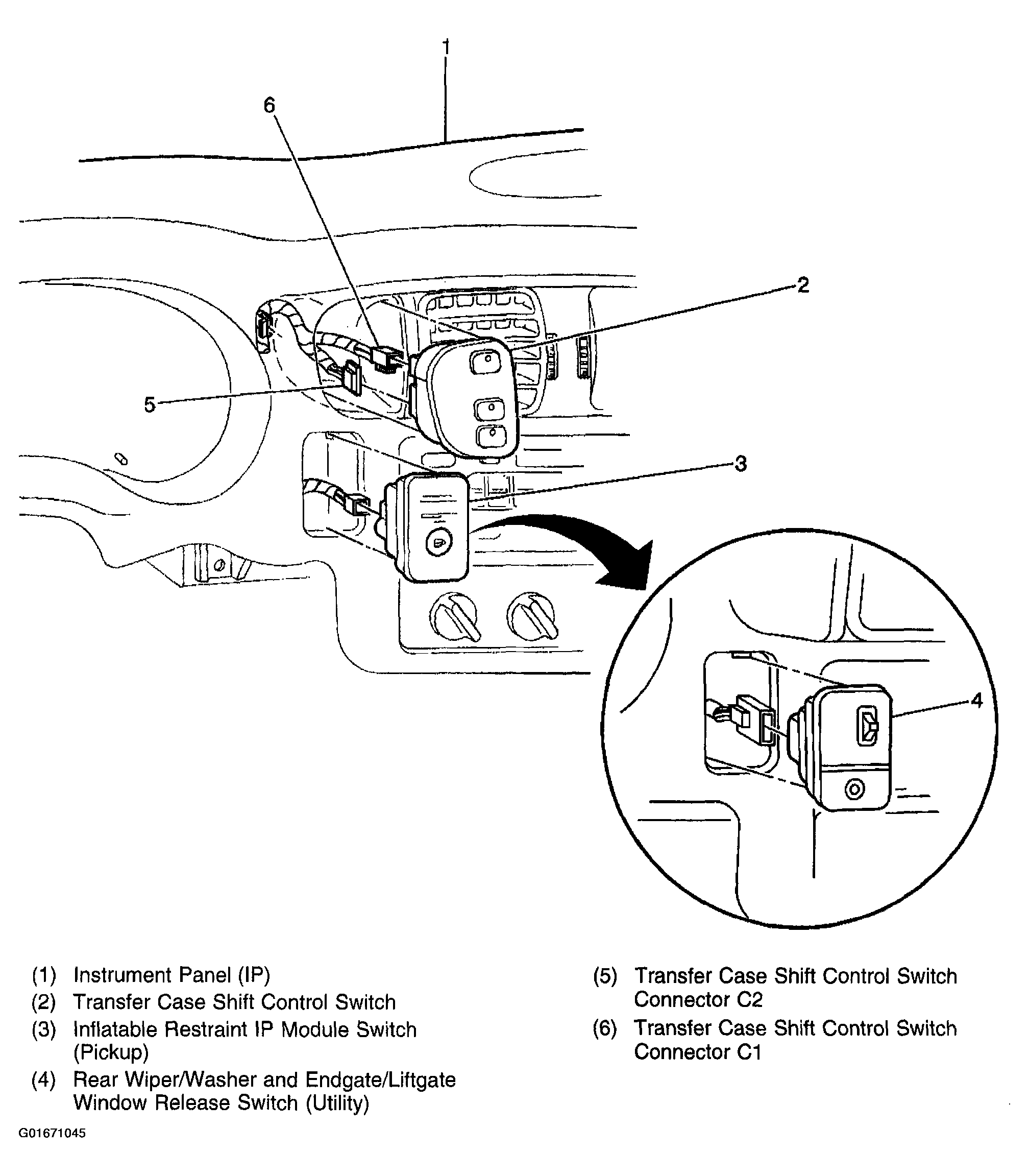

Fig 1: IP Center Switch
G01671045Courtesy of GENERAL MOTORS CORP.

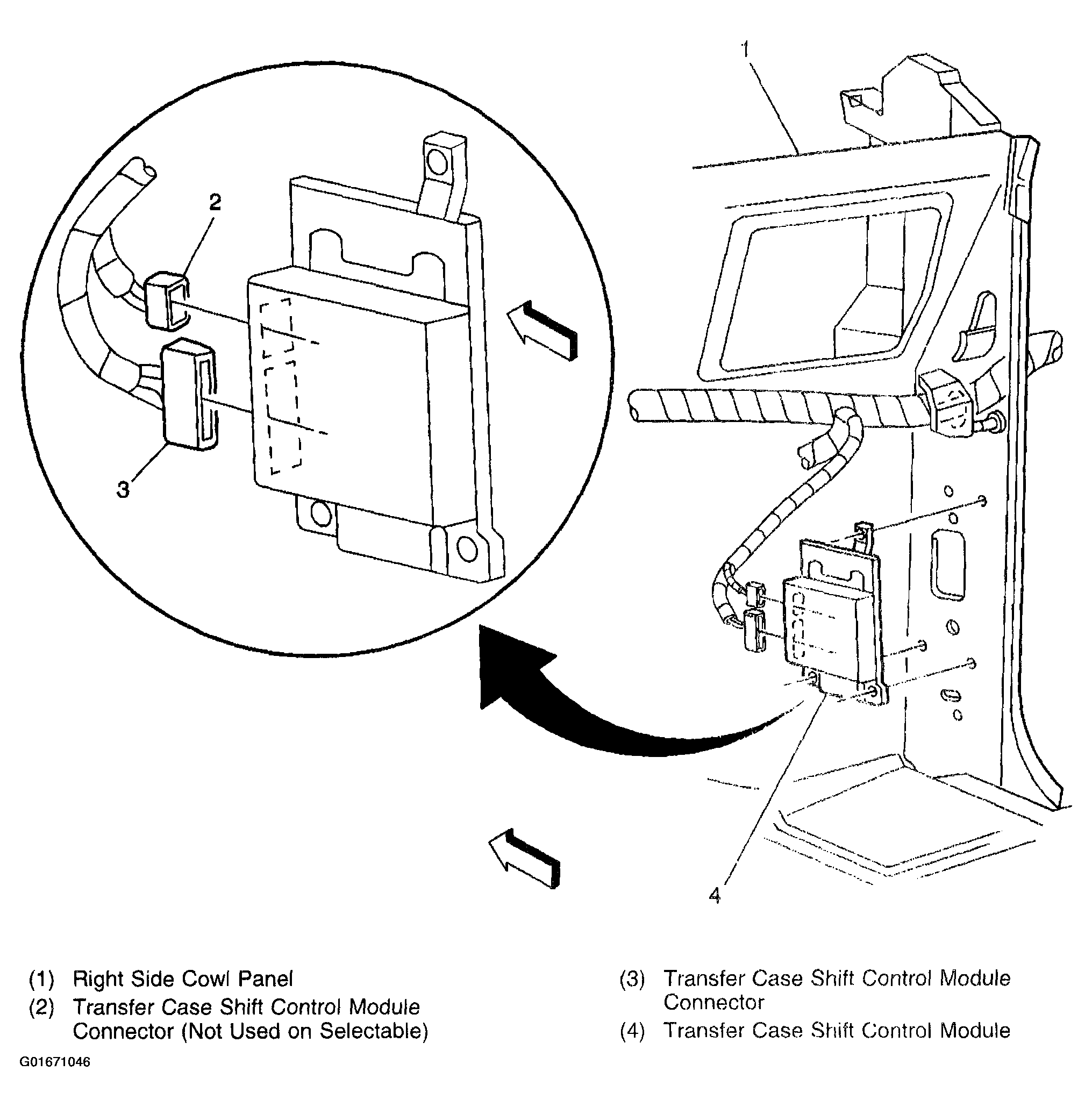

Fig 2: Transfer Case Shift Control Module
G01671046Courtesy of GENERAL MOTORS CORP.

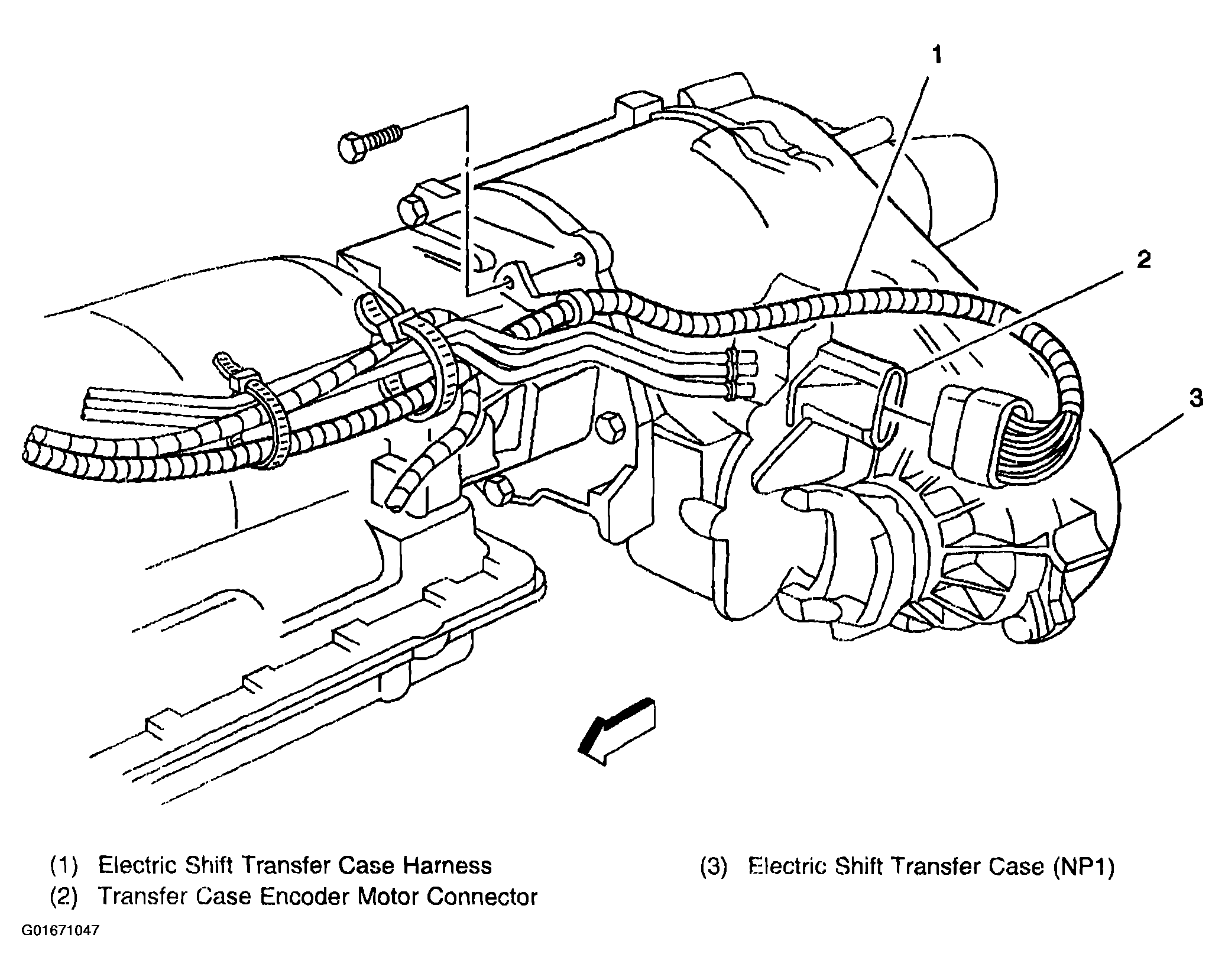

Fig 3: Transfer Case (NP1) Harness Routing View
G01671047Courtesy of GENERAL MOTORS CORP.

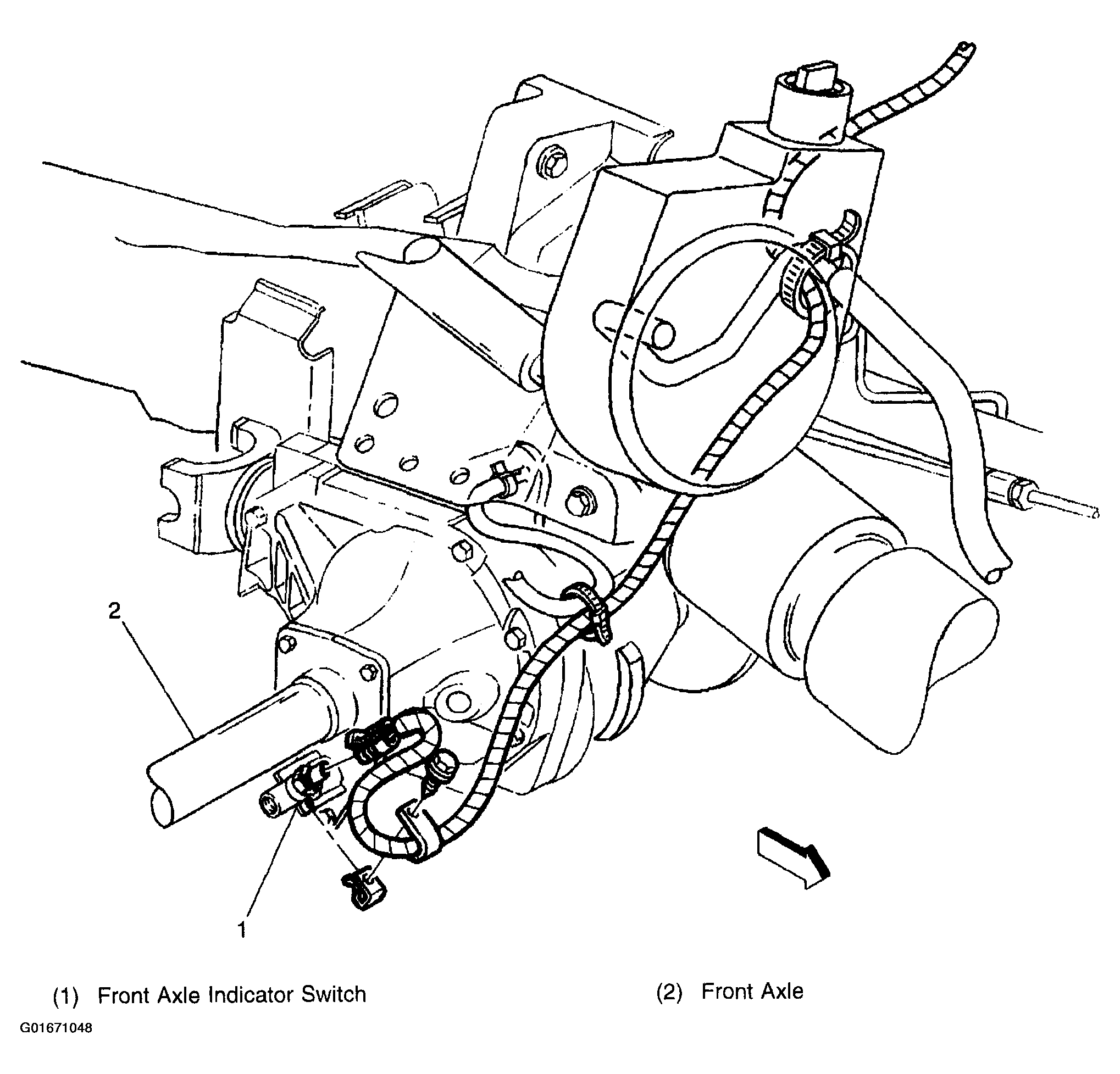

Fig 4: Front Axle Switch
G01671048Courtesy of GENERAL MOTORS CORP.
