Transfer Case Control Connector End Views

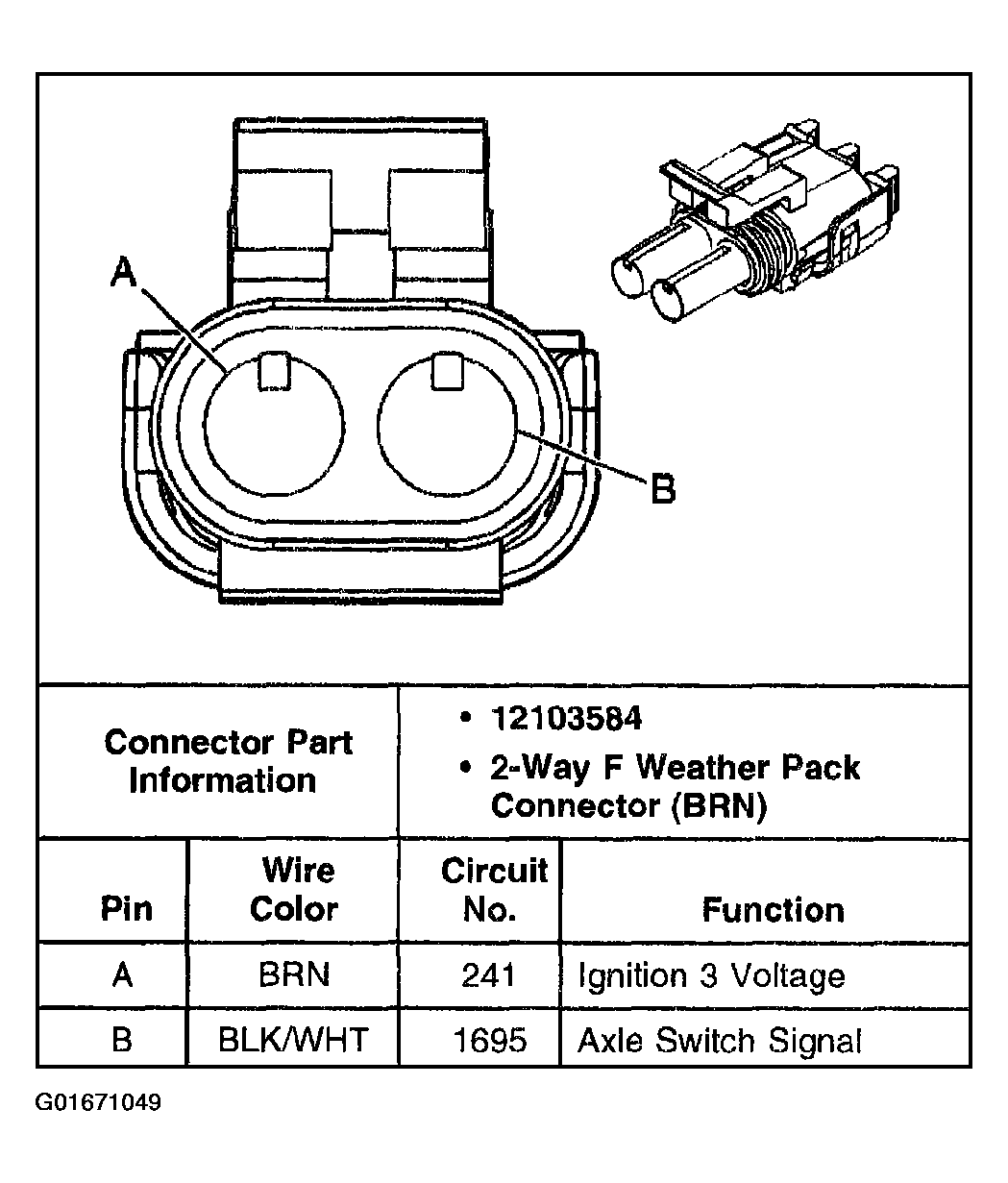

Fig 1: Front Axle Indicator Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Transfer Case Shift Control Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Transfer Case Shift Control Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Transfer Case Shift Control Switch Connector C1

Courtesy of GENERAL MOTORS CORP.

Fig 5: Transfer Case Shift Control Switch Connector C2

Courtesy of GENERAL MOTORS CORP.

Fig 6: Transfer Case Encoder Motor

Courtesy of GENERAL MOTORS CORP.
