Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the automatic transfer case control module into the retainer with the 3 nuts.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

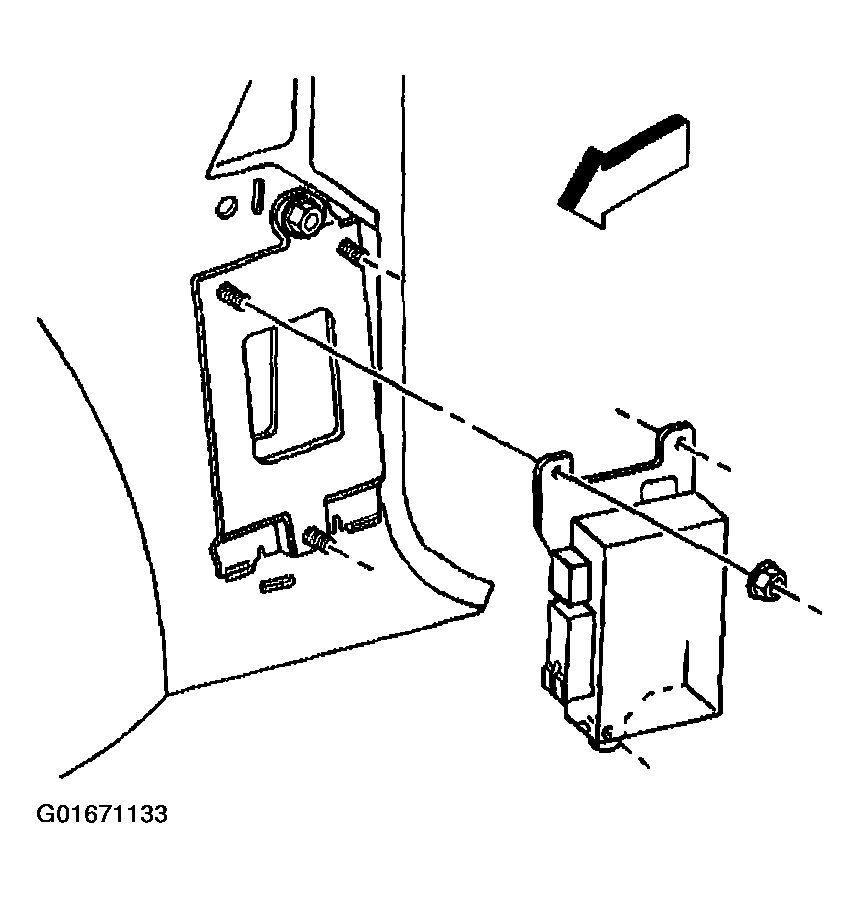

    Fig 1: Installing Automatic Transfer Case Control Module Into Retainer With Nuts
    G01671133Courtesy of GENERAL MOTORS CORP.
  2. Connect the 2 wiring harness connectors to the automatic transfer case control module.

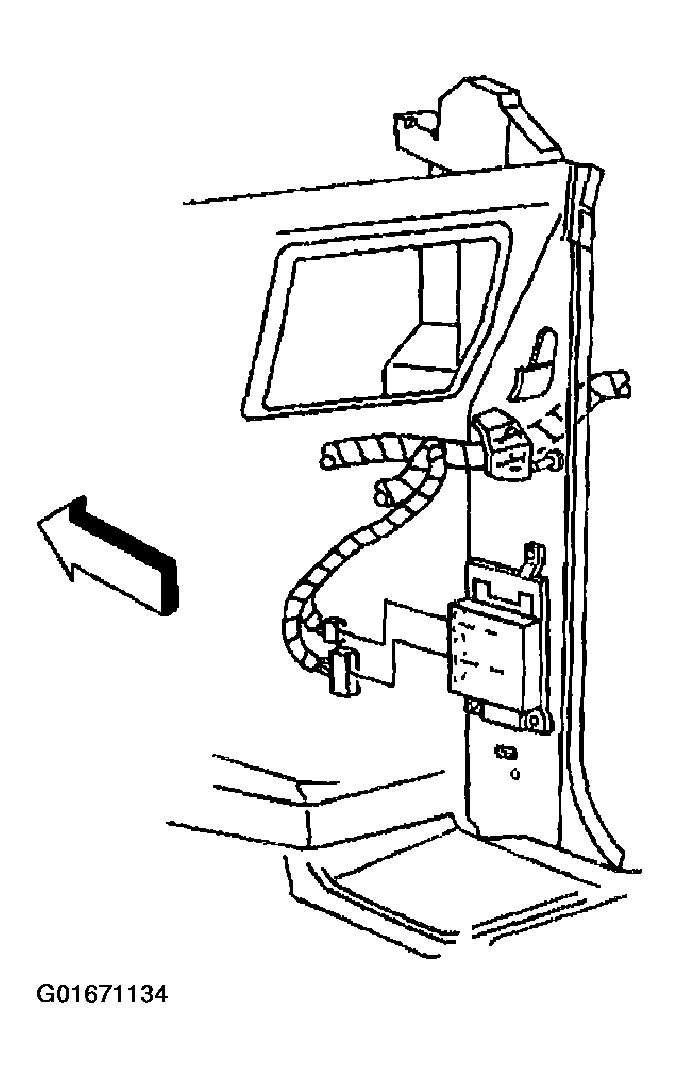

    Fig 2: Connecting Wiring Harness Connectors To Automatic Transfer Case Control Module
    G01671134Courtesy of GENERAL MOTORS CORP.
  3. Install the right lower hinge trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT HINGE PILLAR in Interior Trim.
  4. Start the engine and test the automatic transfer case system for proper shift operation.

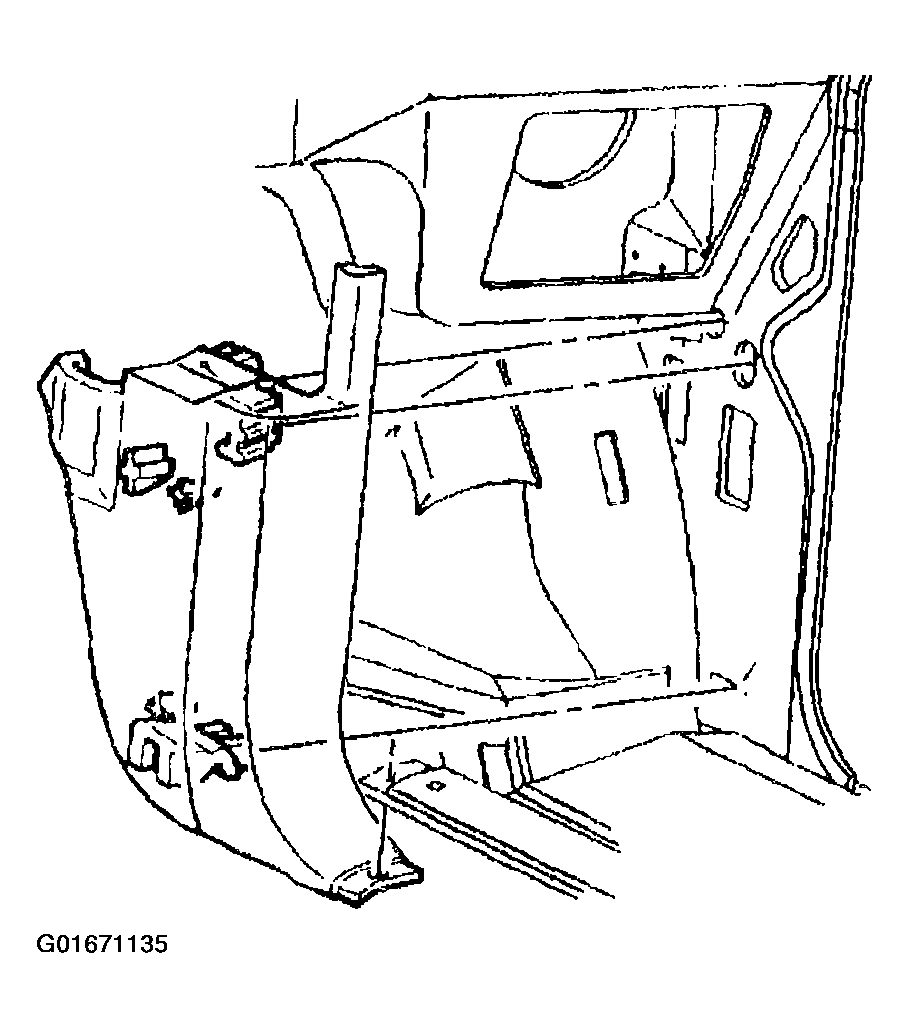

    Fig 3: Installing Right Lower Hinge Trim Panel
    G01671135Courtesy of GENERAL MOTORS CORP.
