Transfer Case Disassembled View

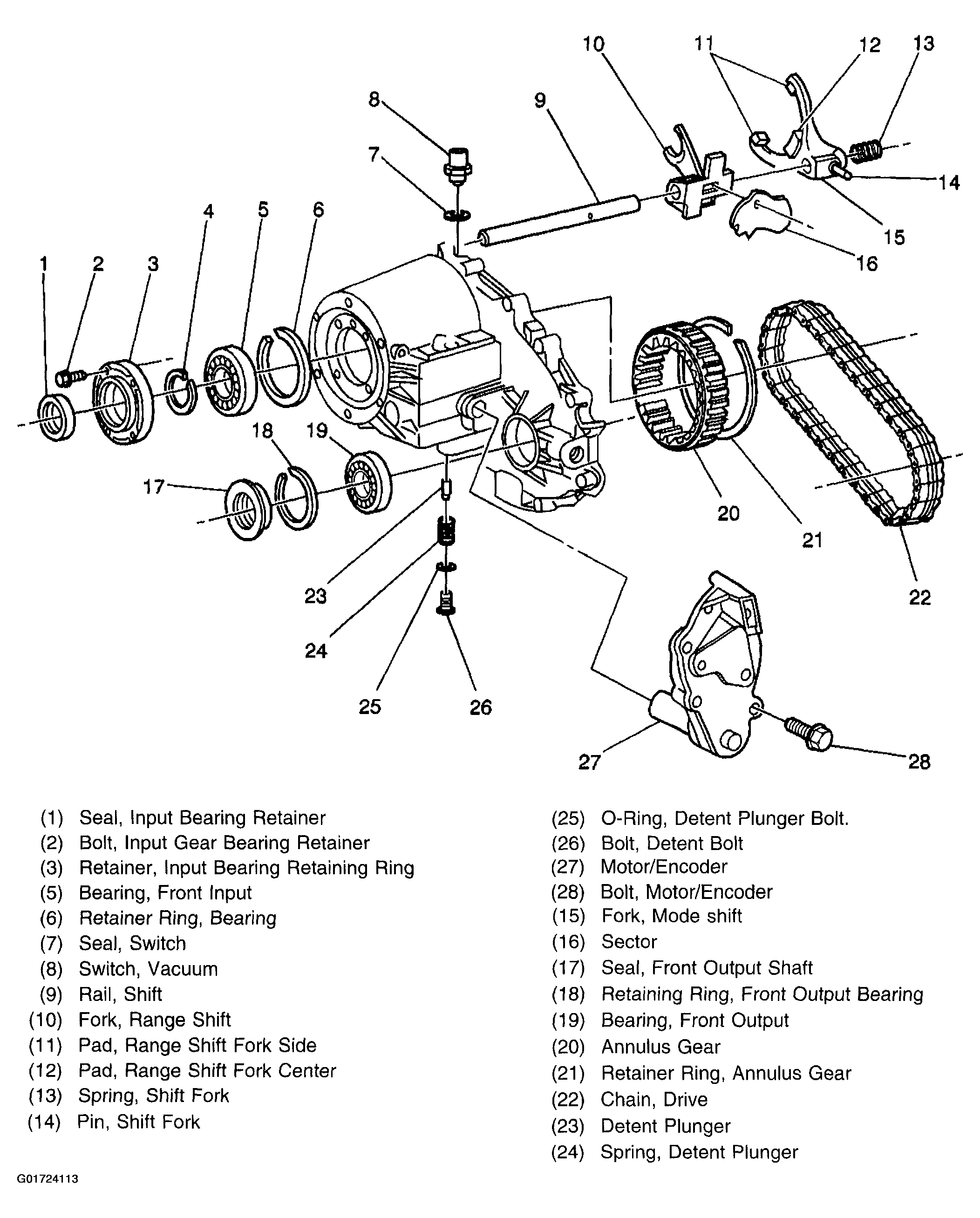

Fig 1: Case Components
G01724113Courtesy of GENERAL MOTORS CORP.

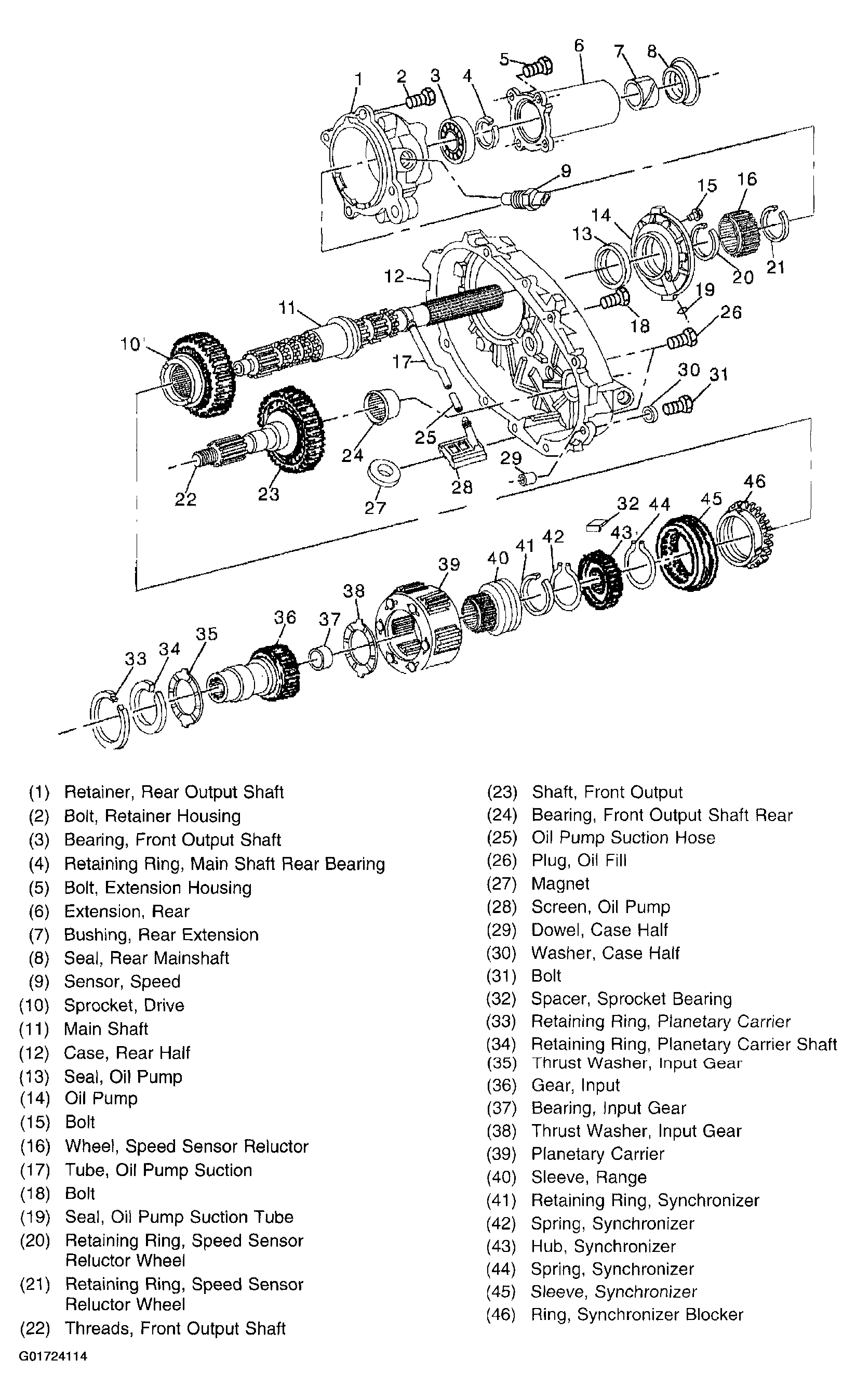

Fig 2: Rear Case and Drivetrain Components
G01724114Courtesy of GENERAL MOTORS CORP.
