Memory Seats Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

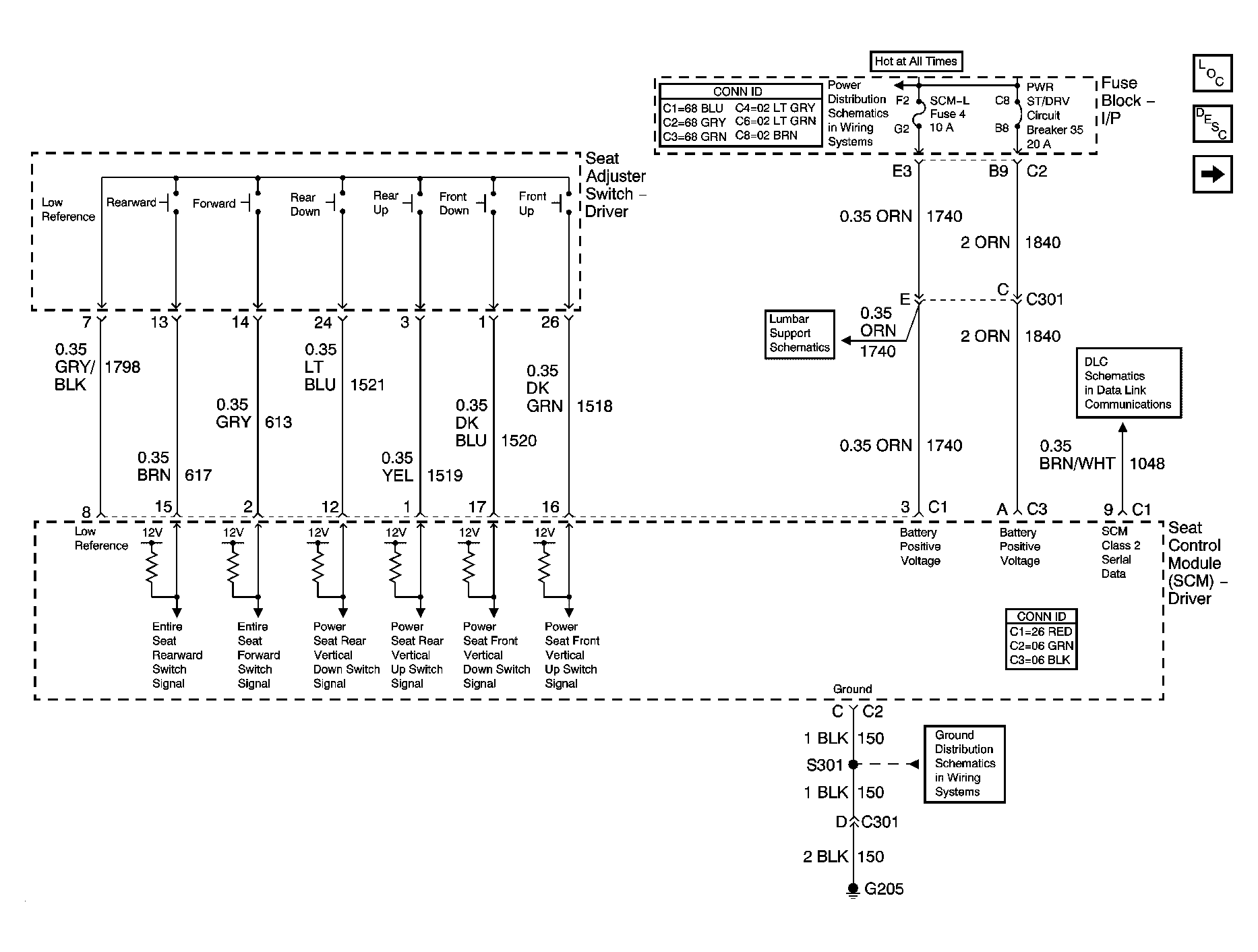

Fig 1: Power, Ground, DLC, And Seat Adjuster Switch Schematics - Driver

Courtesy of GENERAL MOTORS CORP.

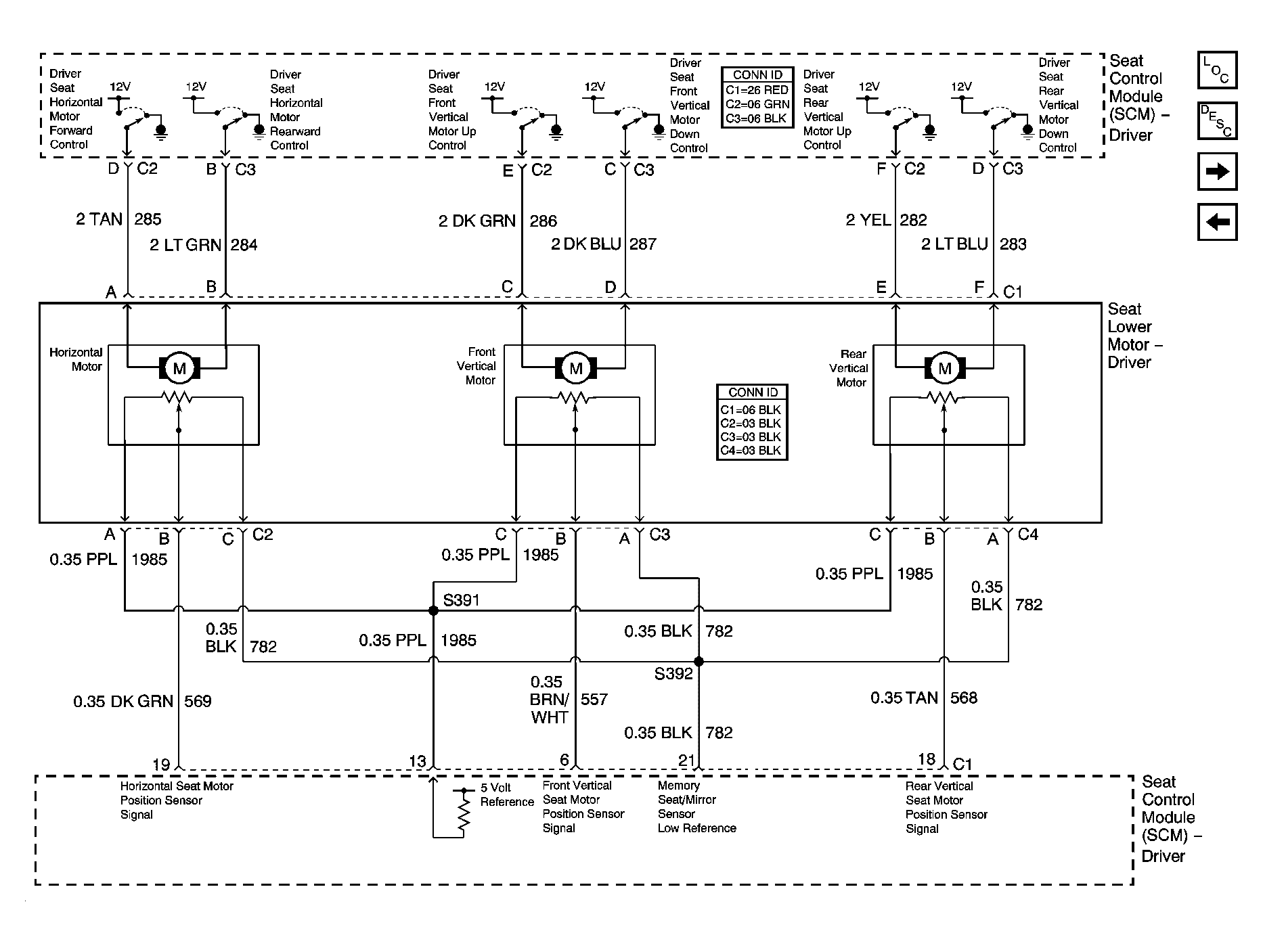

Fig 2: Seat Control Module Schematics - Driver W/O Telescoping Steering Column

Courtesy of GENERAL MOTORS CORP.

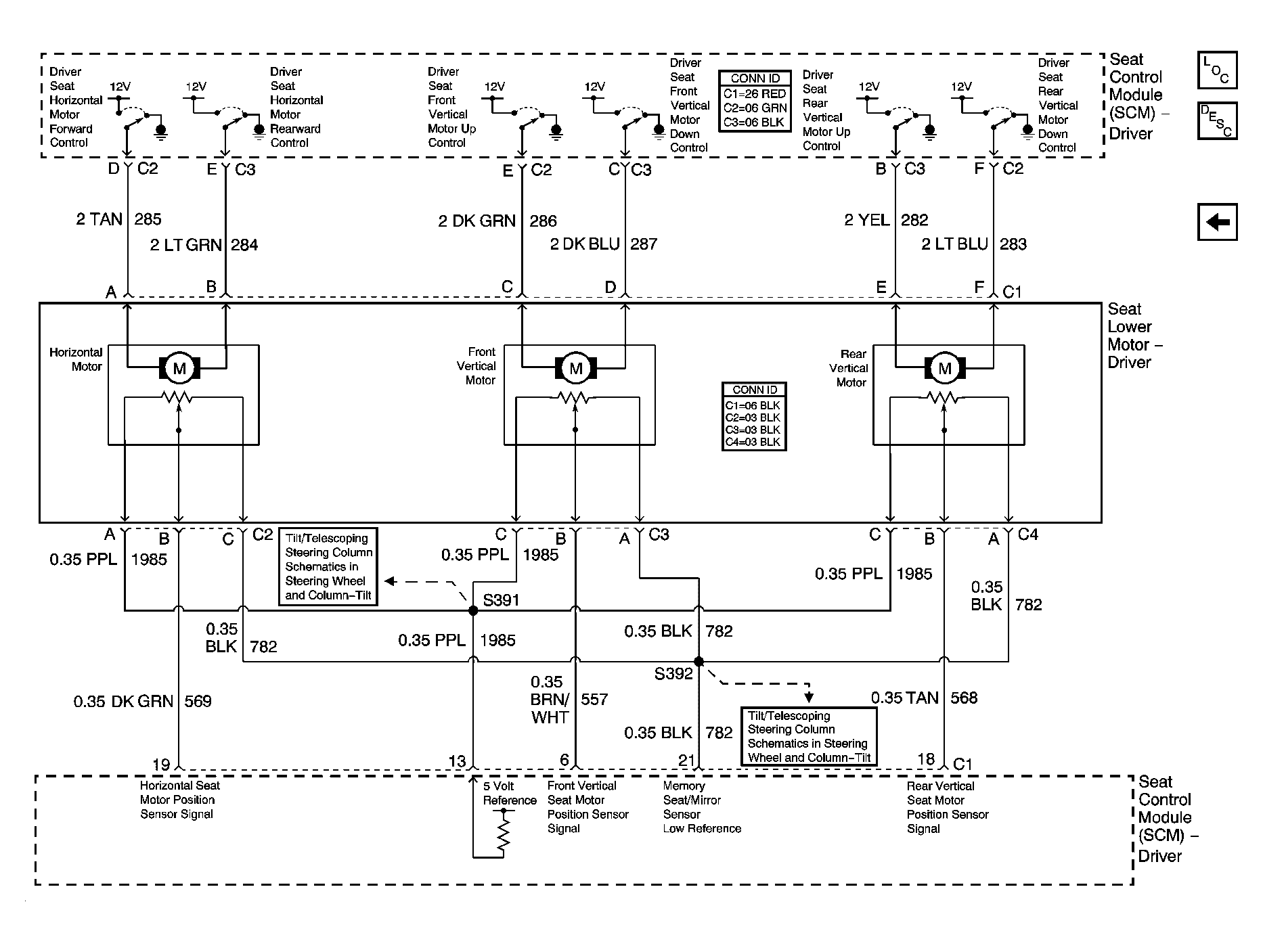

Fig 3: Seat Control Schematics - Driver Module W/Telescoping Steering Column

Courtesy of GENERAL MOTORS CORP.
