Seat Horizontal Motor - Driver/Passenger

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

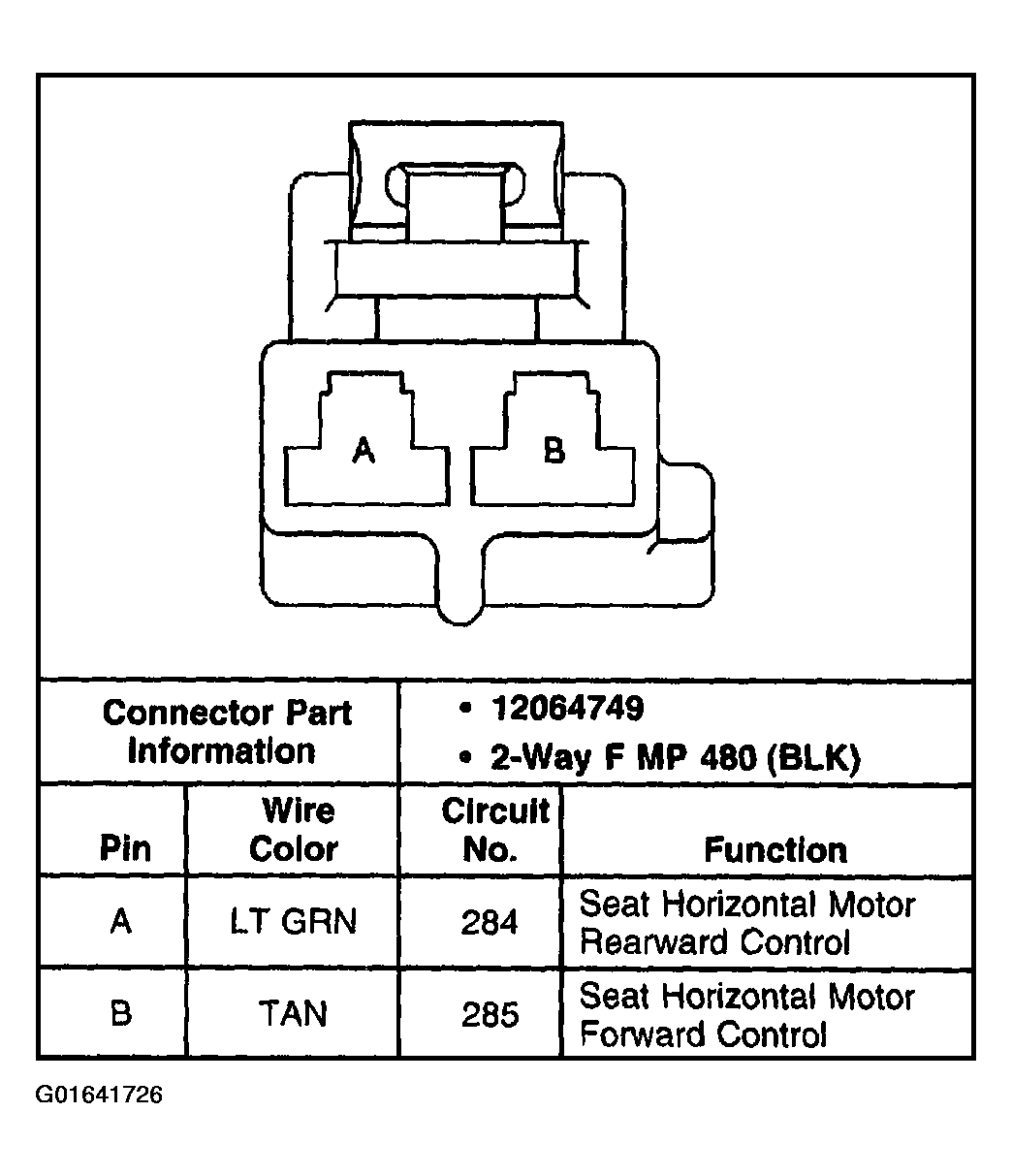

Fig 1: Identifying Seat Horizontal Motor - Driver/Passenger Connector Terminals End View
G01641726Courtesy of GENERAL MOTORS CORP.
