Passenger Seat Module (PSM)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

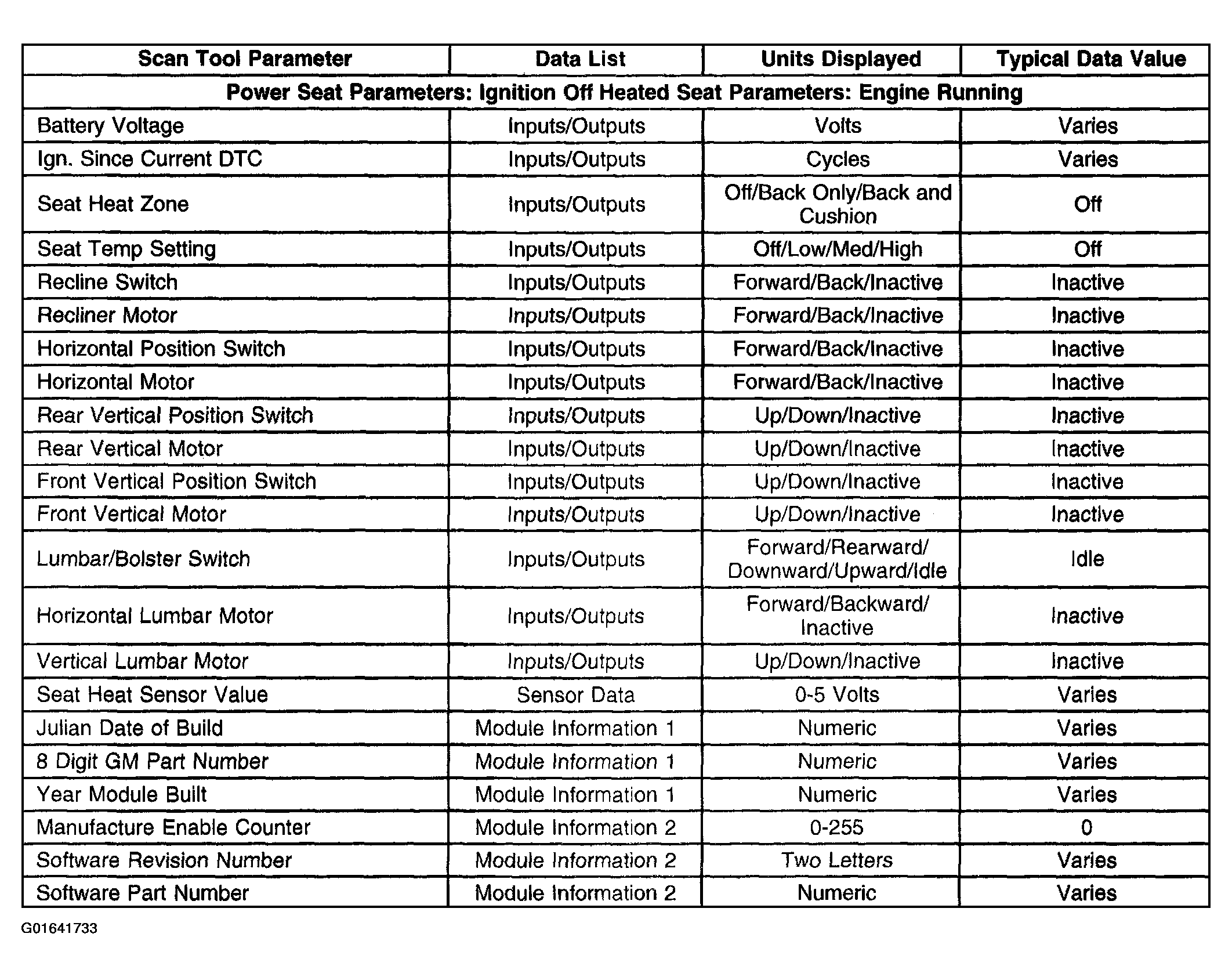

Fig 1: Scan Tool Data List - Driver Seat Module (DSM)
G01641733Courtesy of GENERAL MOTORS CORP.
