Transmission Control Module Replacement (2.4L LE5)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

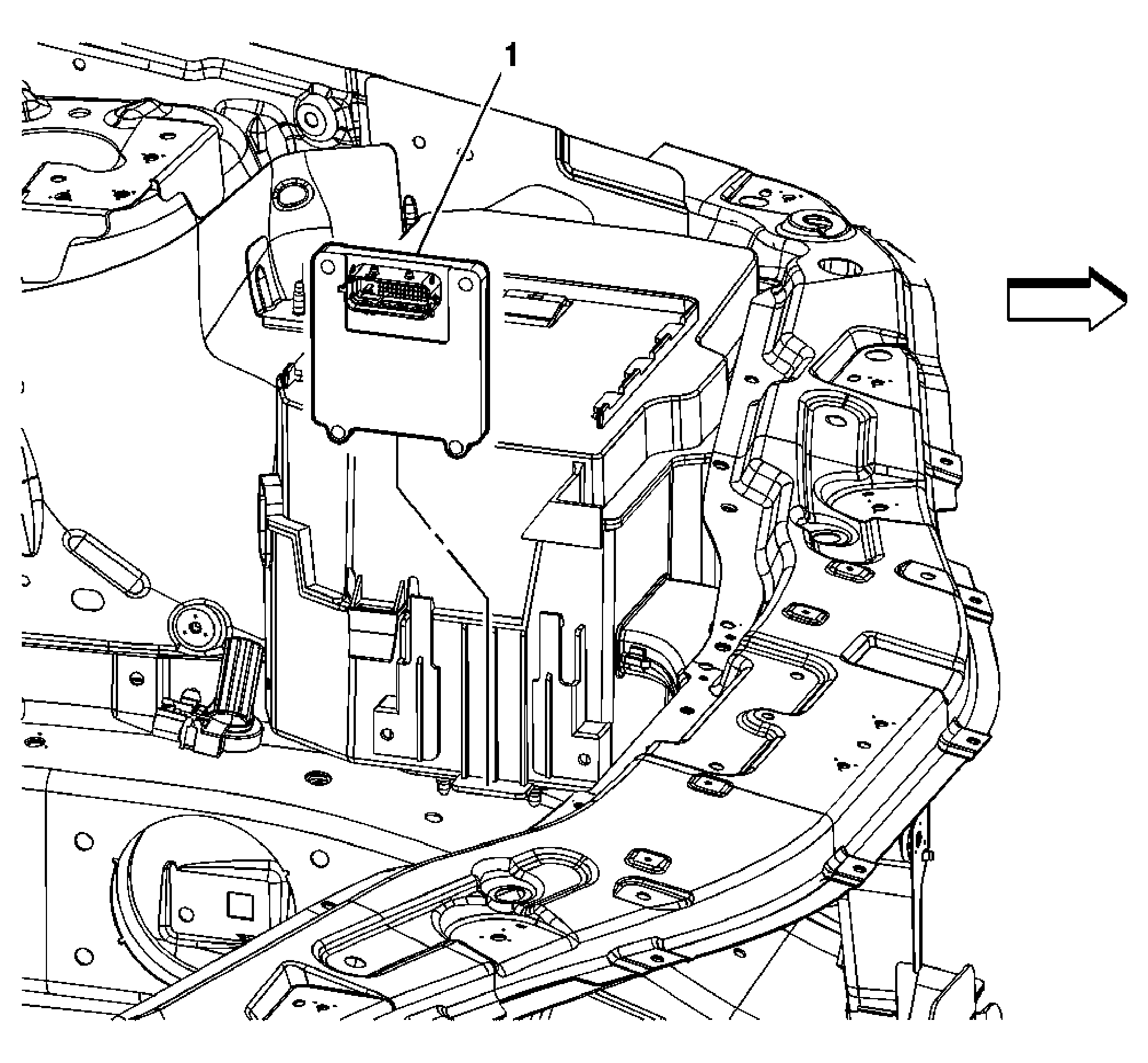

| Callout | Component Name |
|---|---|
|
CAUTION:
Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables or when charging the vehicles battery. Preliminary Procedures: Disconnect the transmission control module (TCM) electrical connector. |
|
| 1 | TCM Procedure: Reprogram the TCM. Refer to Control Module References for programming and setup information. |
