Power Steering Pump Disassembled View (P Series)

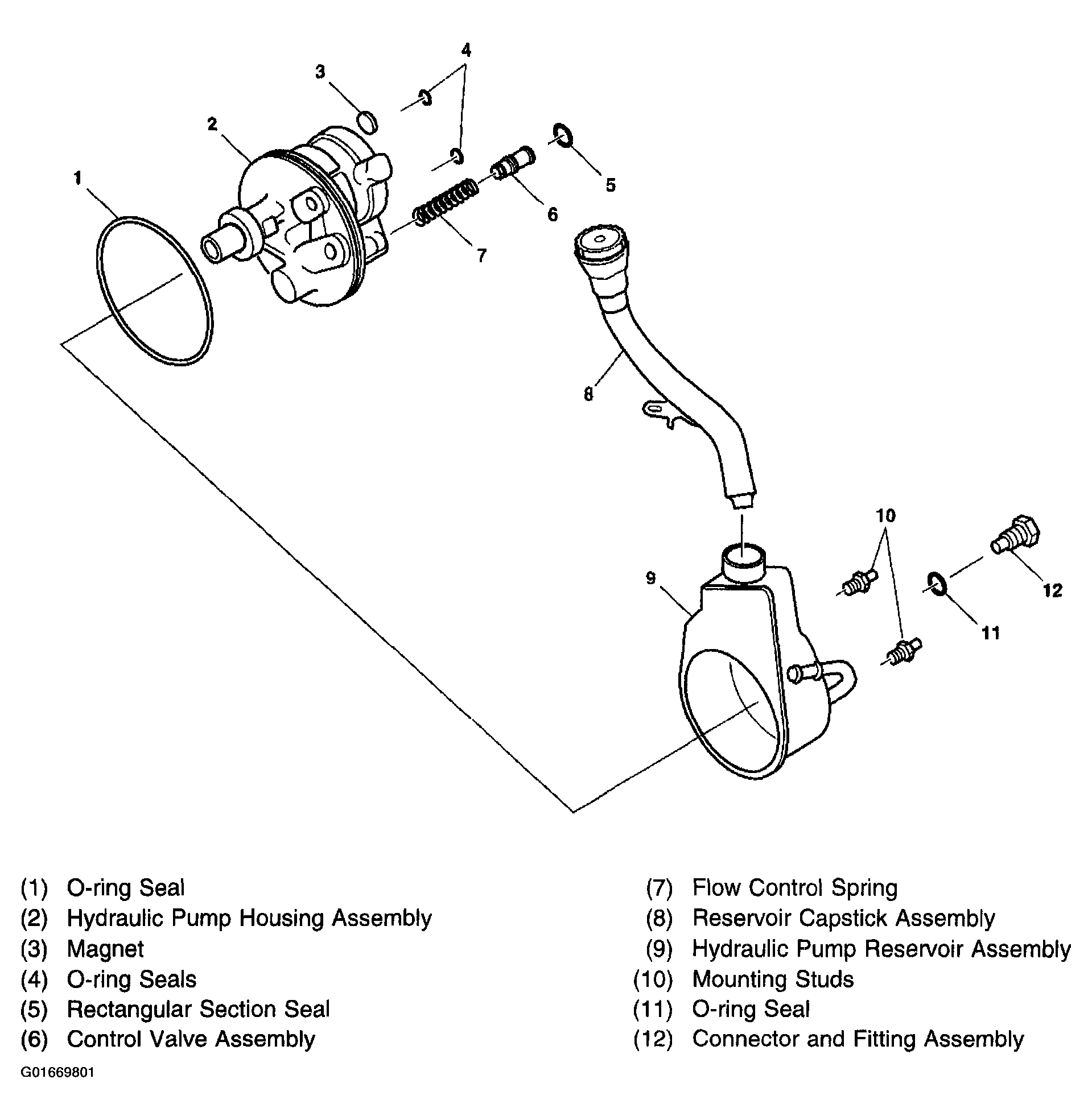

Fig 1: Power Steering Pump Reservoir Disassembled View (P Series)
G01669801Courtesy of GENERAL MOTORS CORP.
