Scan Tool Data List

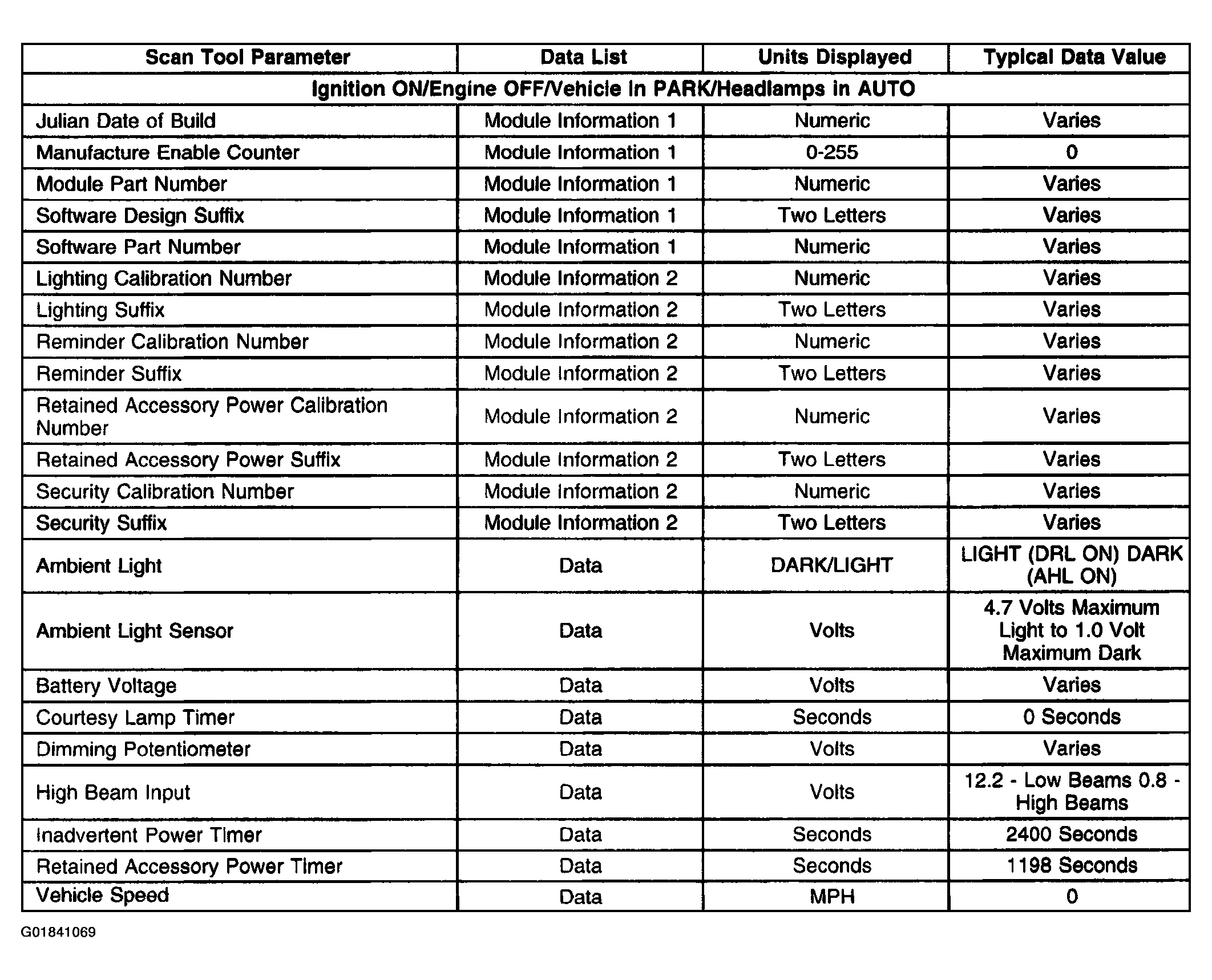

Fig 1: Scan Tool Data List (1 Of 3)
G01841069Courtesy of GENERAL MOTORS CORP.

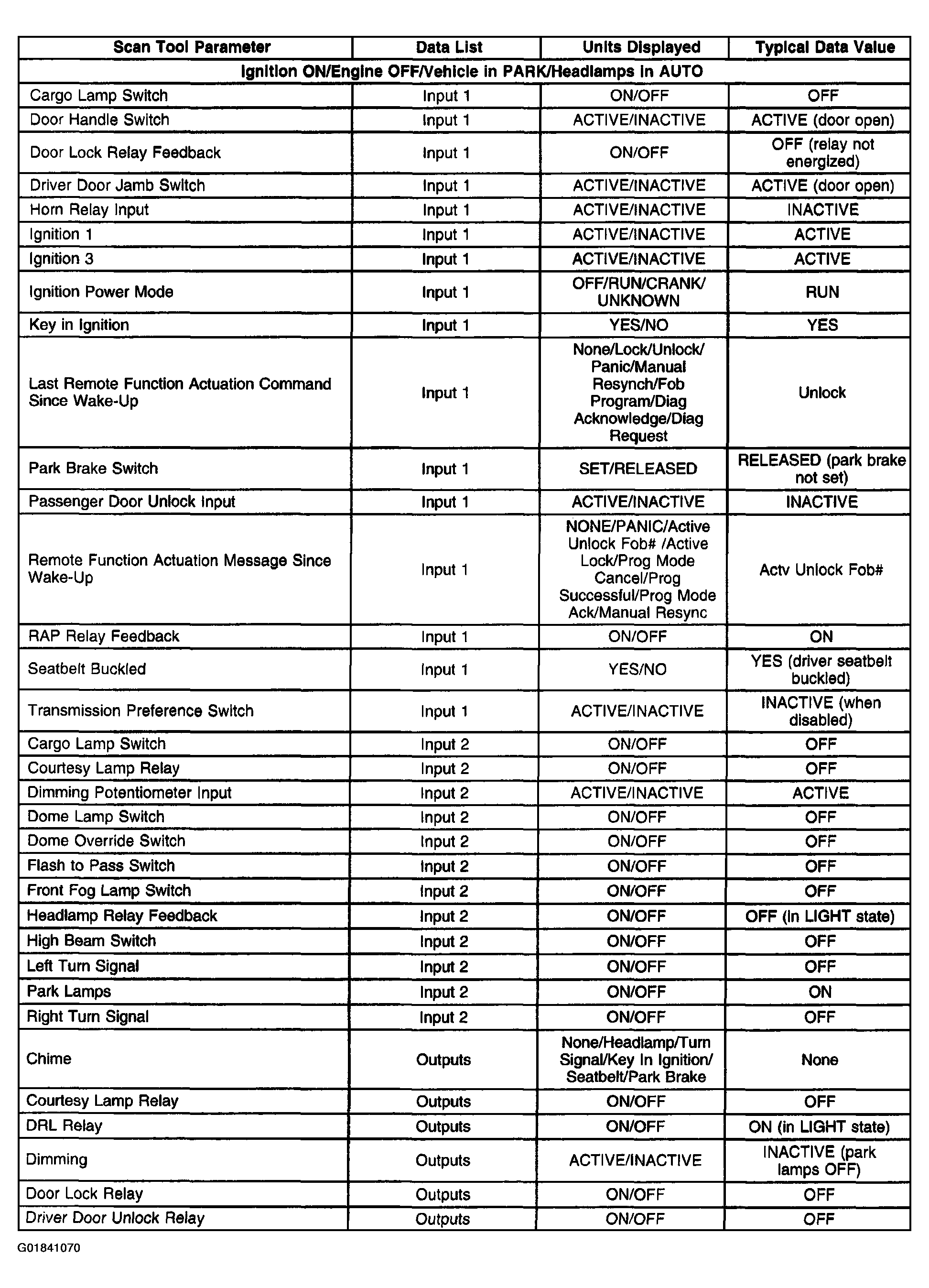

Fig 2: Scan Tool Data List (2 Of 3)
G01841070Courtesy of GENERAL MOTORS CORP.

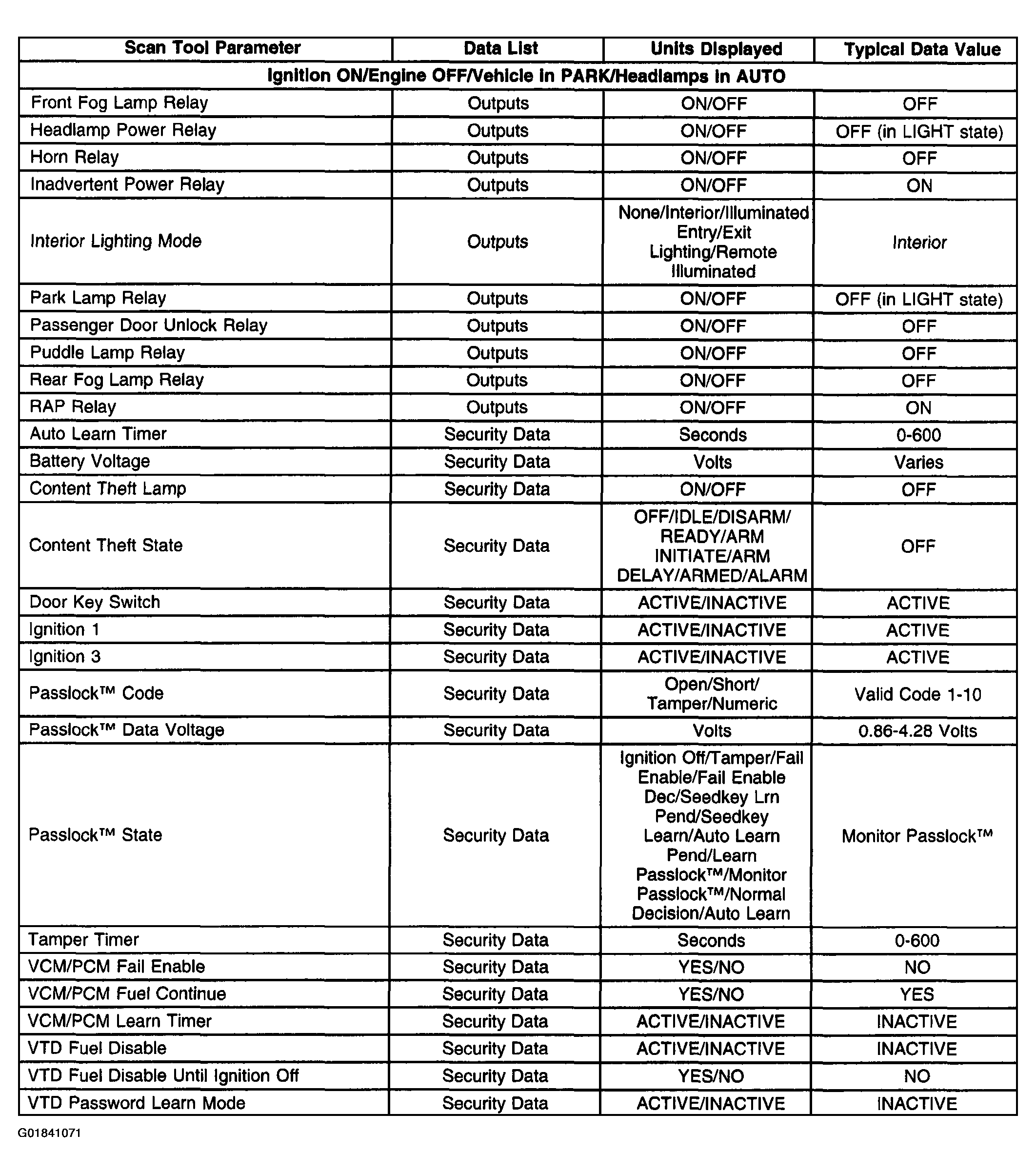

Fig 3: Scan Tool Data List (3 Of 3)
G01841071Courtesy of GENERAL MOTORS CORP.
