Front Door

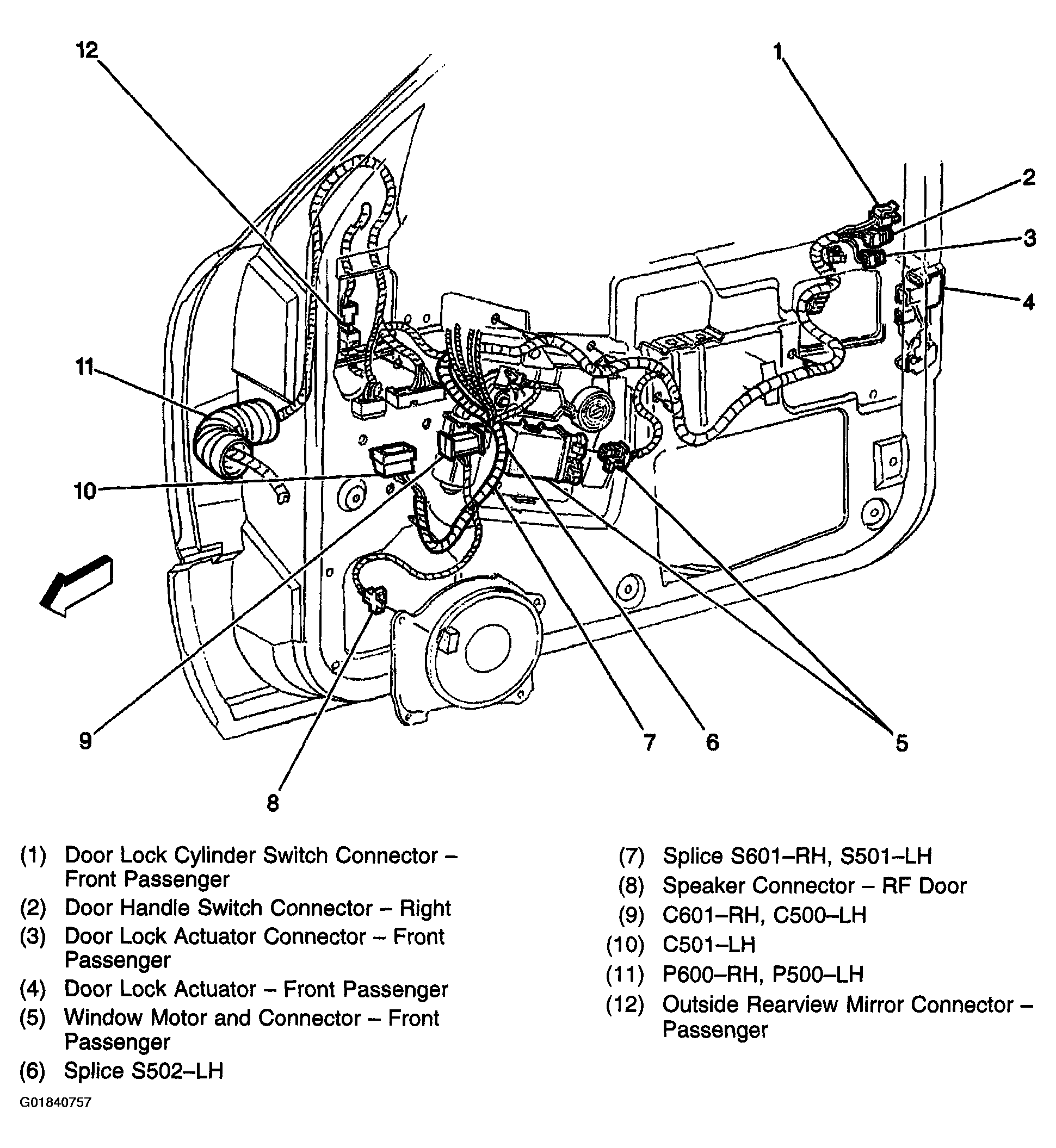

Fig 1: Front Door (Passenger Shown; Driver Similar)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
