Steering Column Disassembled View (Column Shift & Floor Shift Standard)

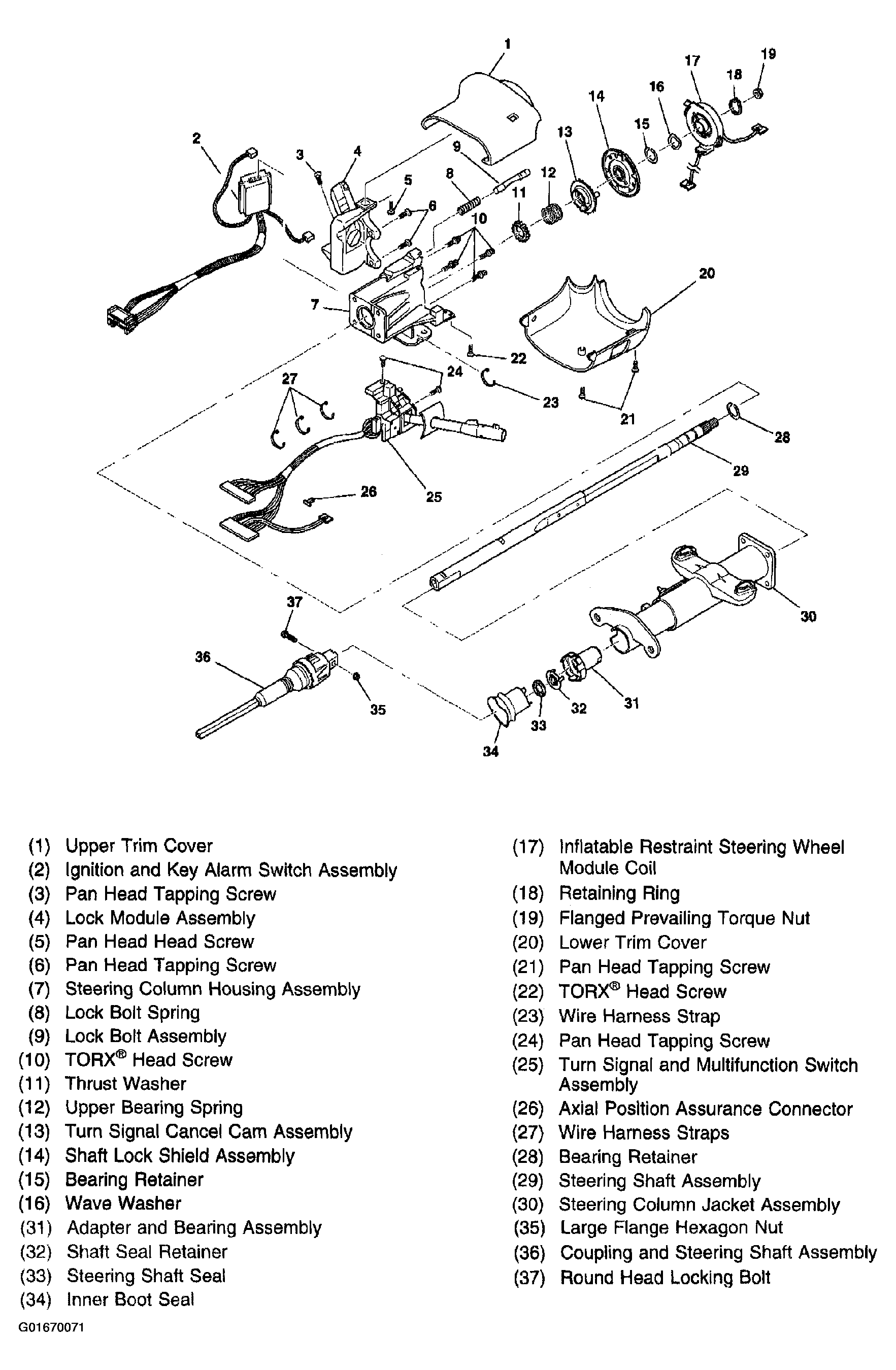

Fig 1: Standard Column Shift Disassembled View

Courtesy of GENERAL MOTORS CORP.

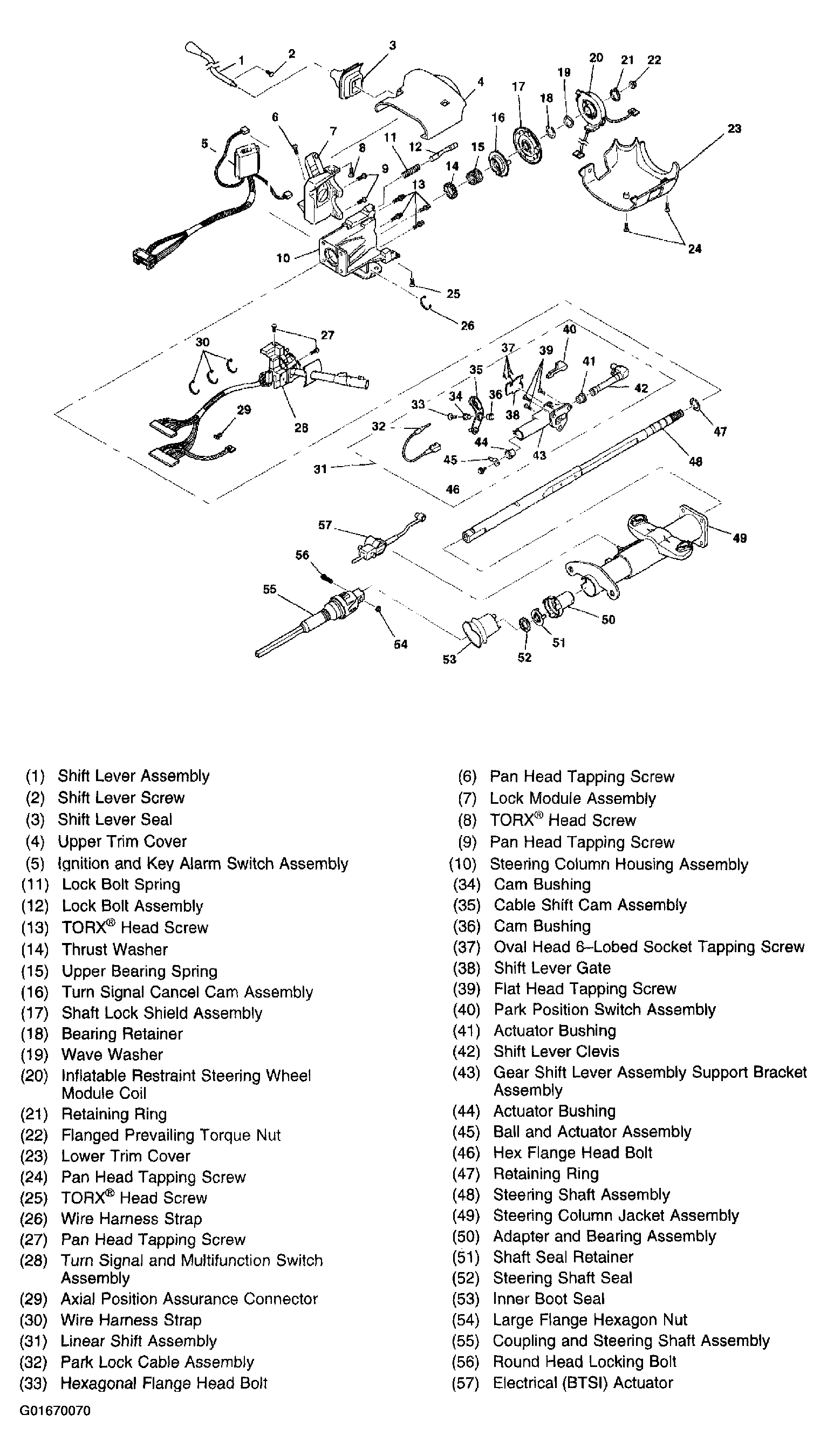

Fig 2: Standard Floor Shift Column Disassembled View

Courtesy of GENERAL MOTORS CORP.
