Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SLIDING DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR  .
  3. Remove the upper access cover, if equipped.

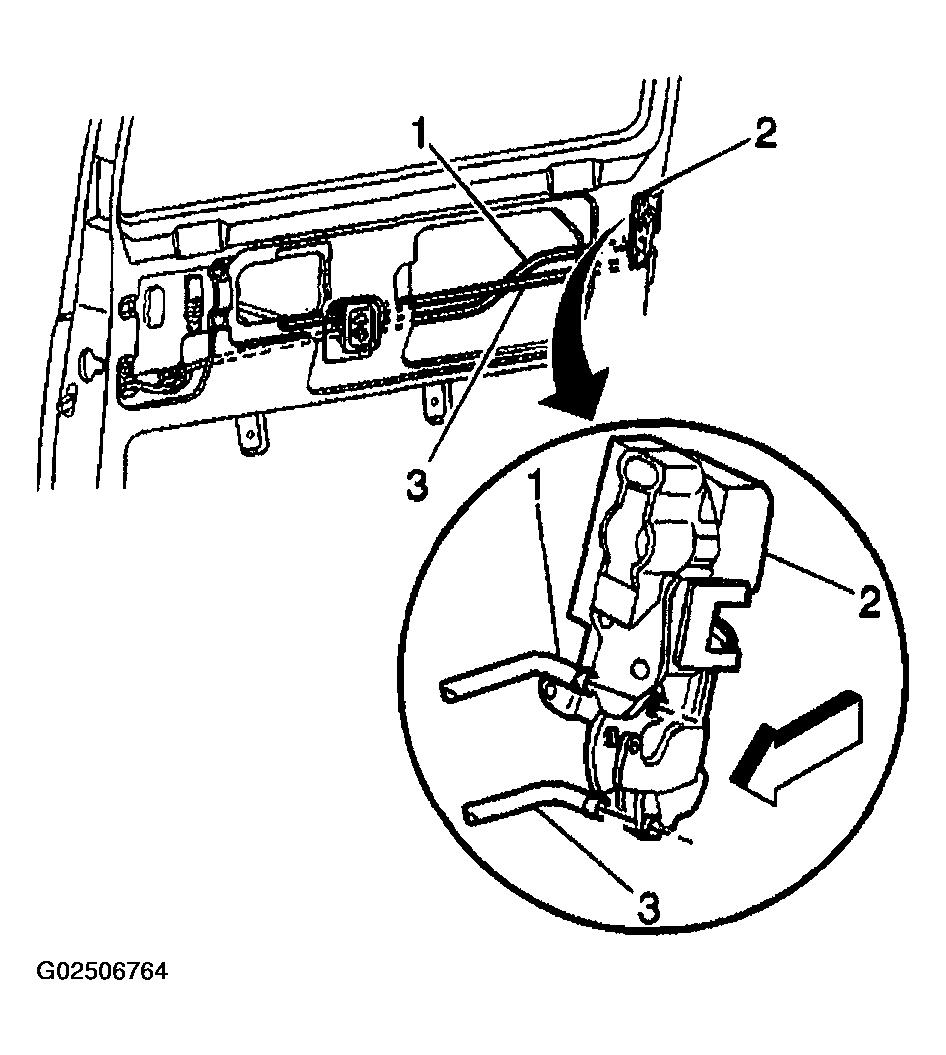

    4. Fig 1: Removing & Installing Sliding Door Lock Assembly Lock Rods
    G02506764Courtesy of GENERAL MOTORS CORP.
  4. Remove the lock rods (1) from the lock assembly (1 and 3).
  5. Disconnect the electrical connector from the lock (5).
  6. Remove the lock bolts (1).

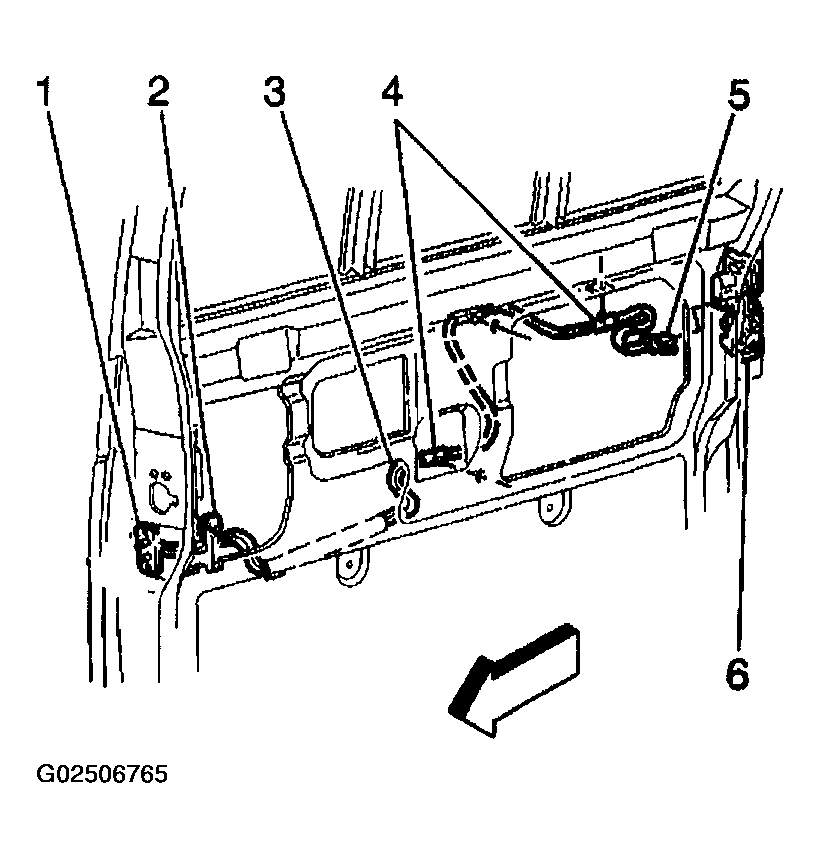

    Fig 2: Identifying Sliding Door Components For Lock Replacement
    G02506765Courtesy of GENERAL MOTORS CORP.
  7. Remove the lock from the door (2).

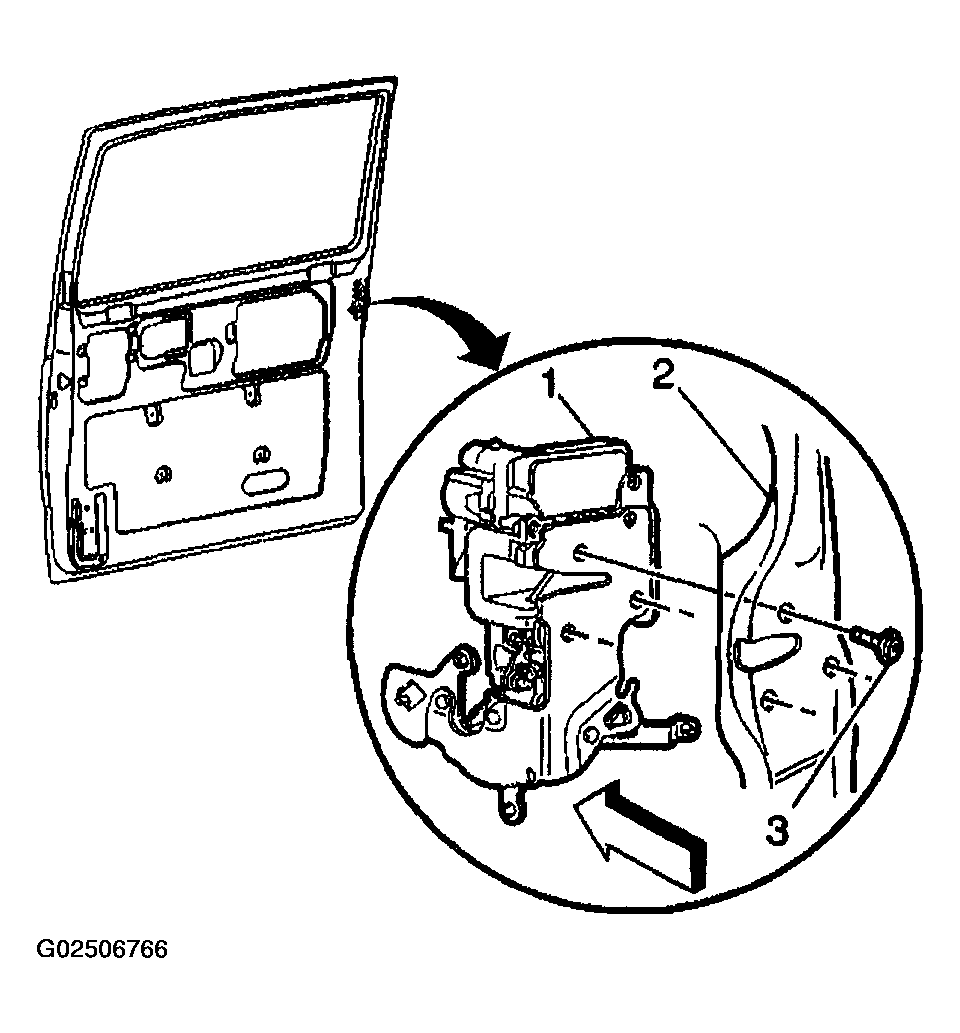

    8. Fig 3: Removing & Installing Sliding Door Lock
    G02506766Courtesy of GENERAL MOTORS CORP.
