Body Control System Connector End Views

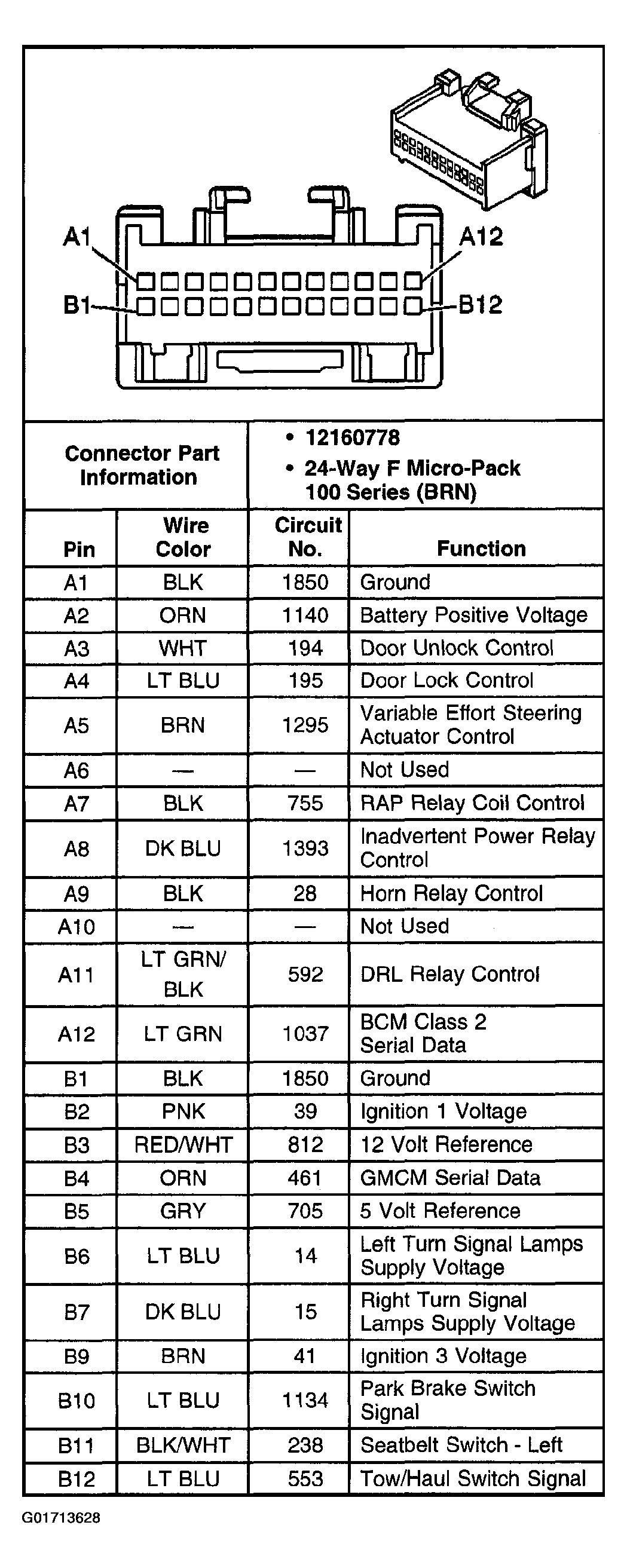

Fig 1: Identifying Body Control Module (BCM) - C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

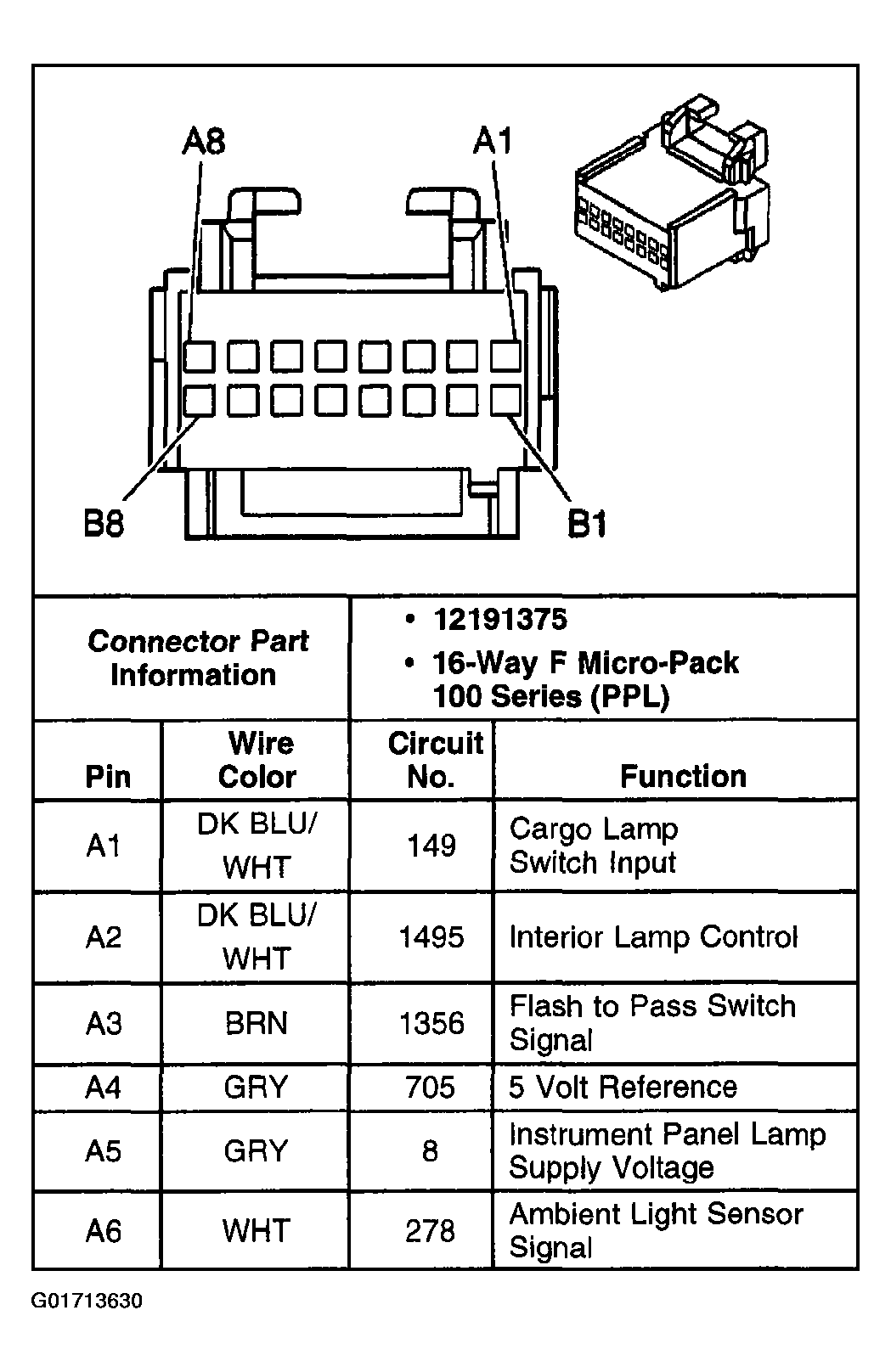

Fig 2: Identifying Body Control Module (BCM) - C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

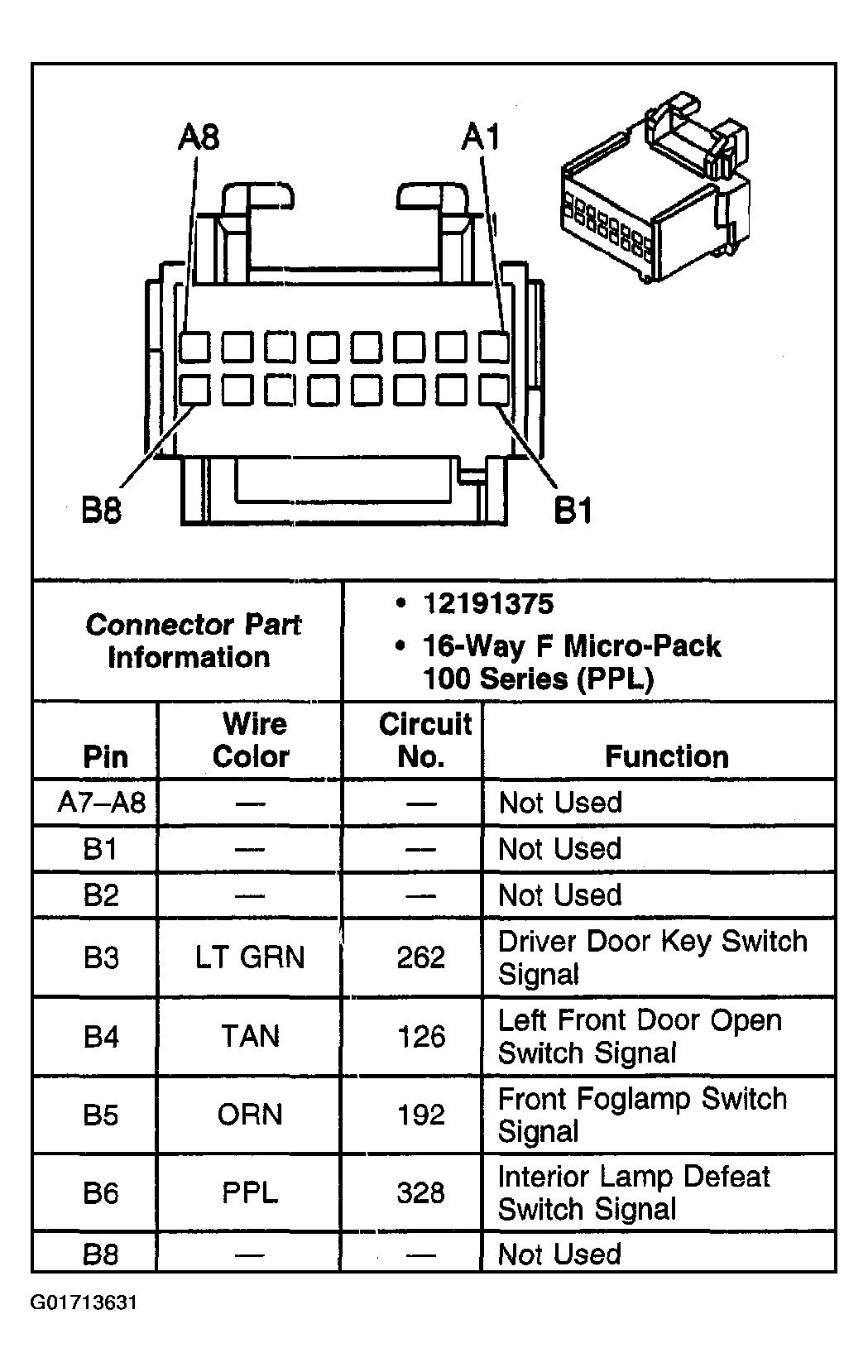

Fig 3: Identifying Body Control Module (BCM) - C3 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

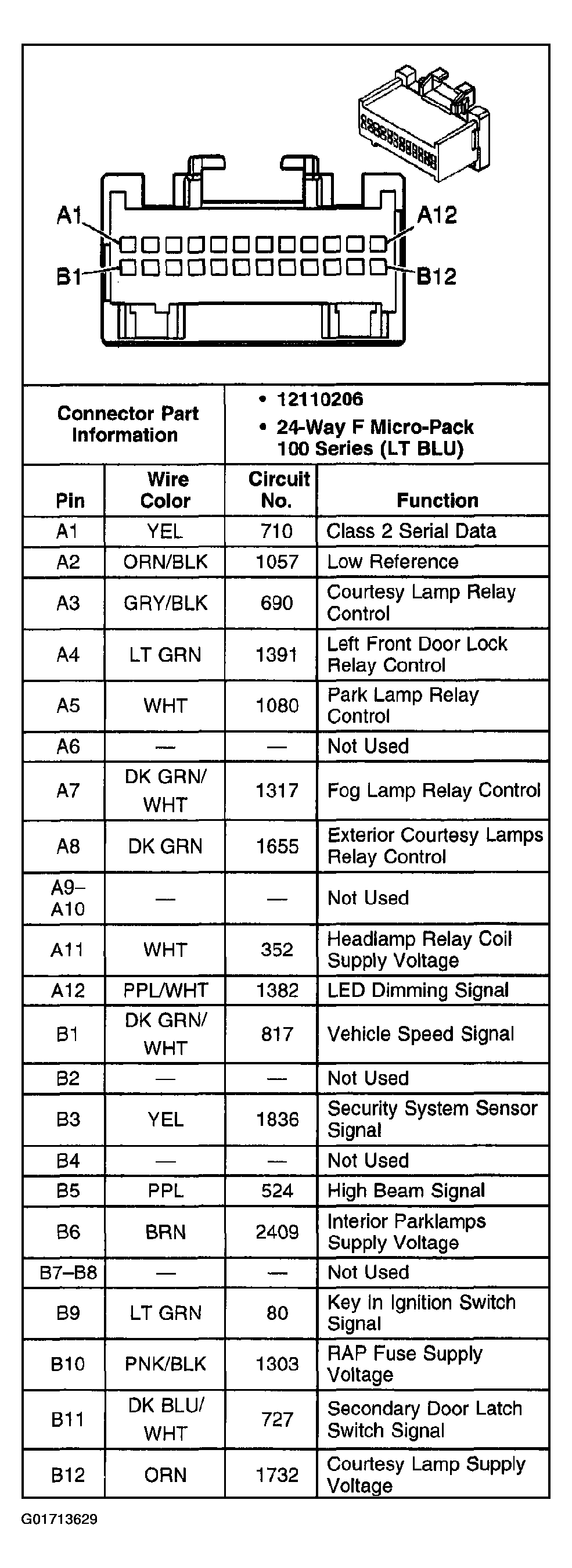

Fig 4: Identifying Body Control Module (BCM) - C3 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
