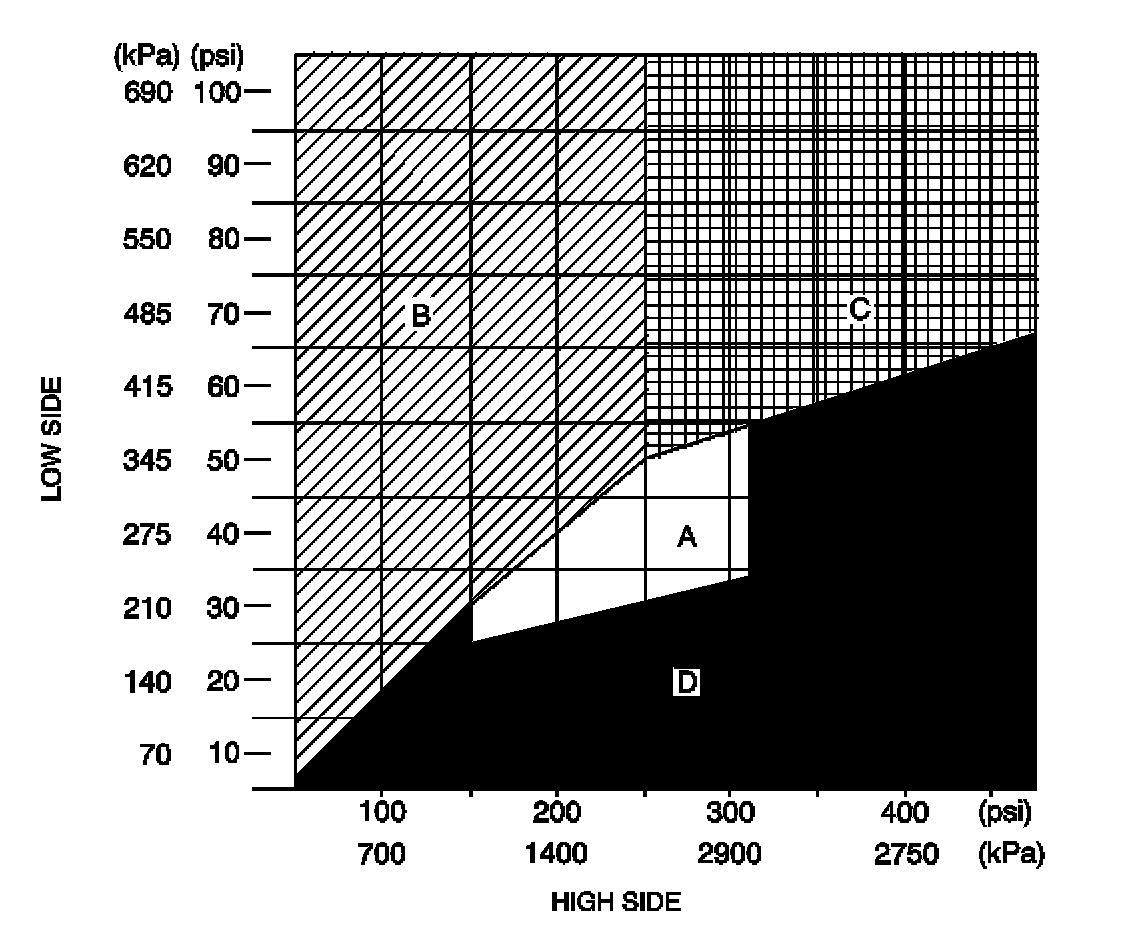

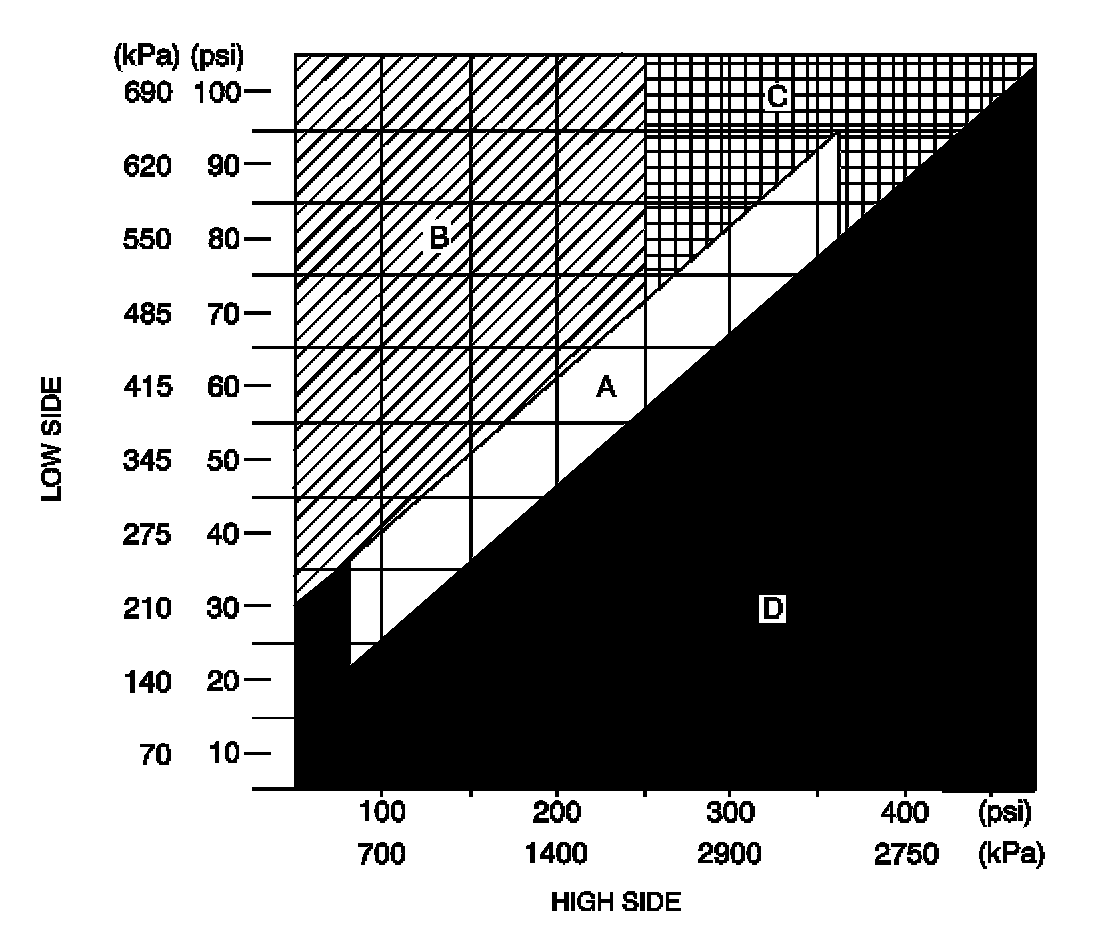

A/C System Pressure - Zone Classification

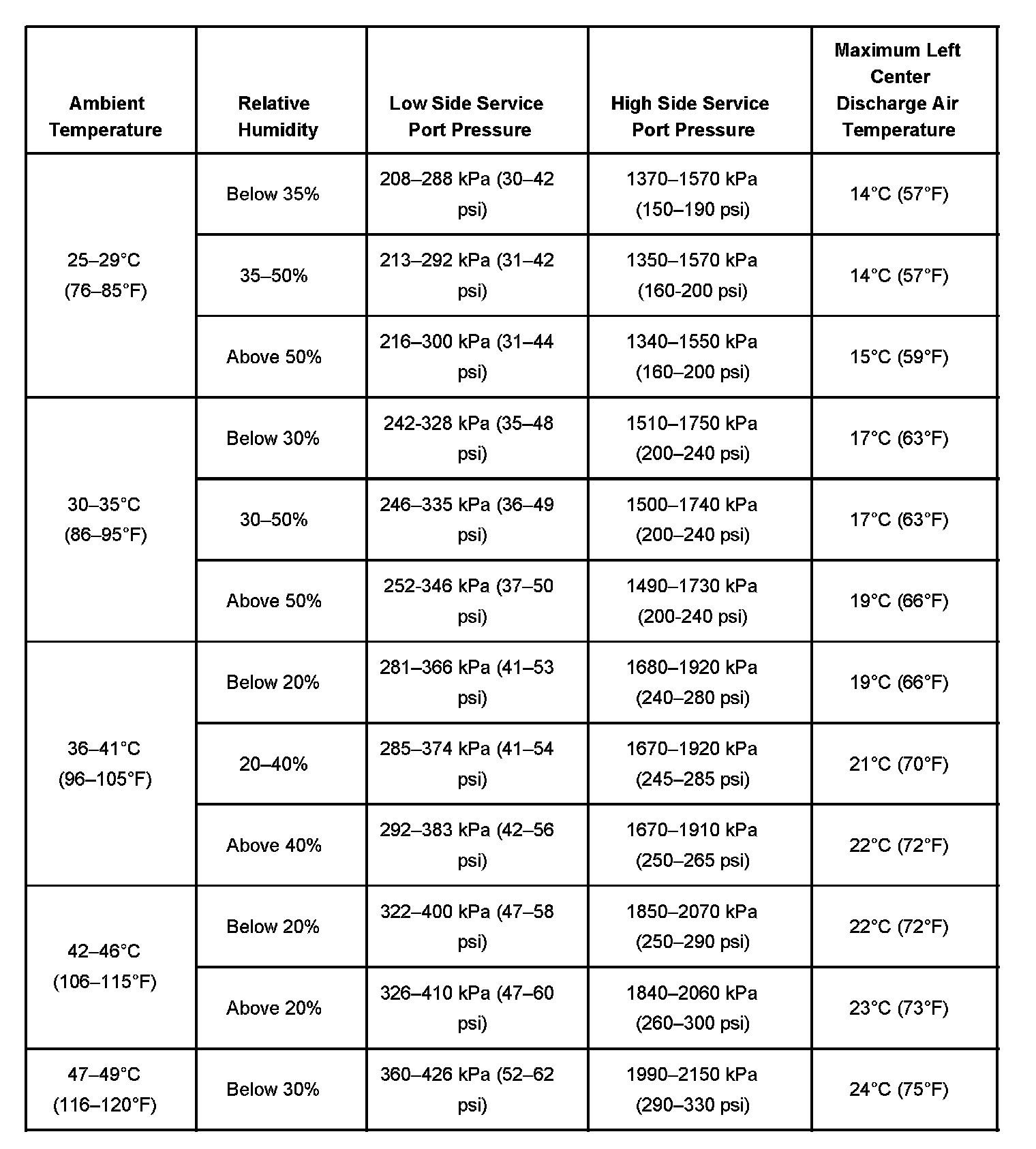

A/C Performance Table Part 1:

A/C Performance Table Part 2:

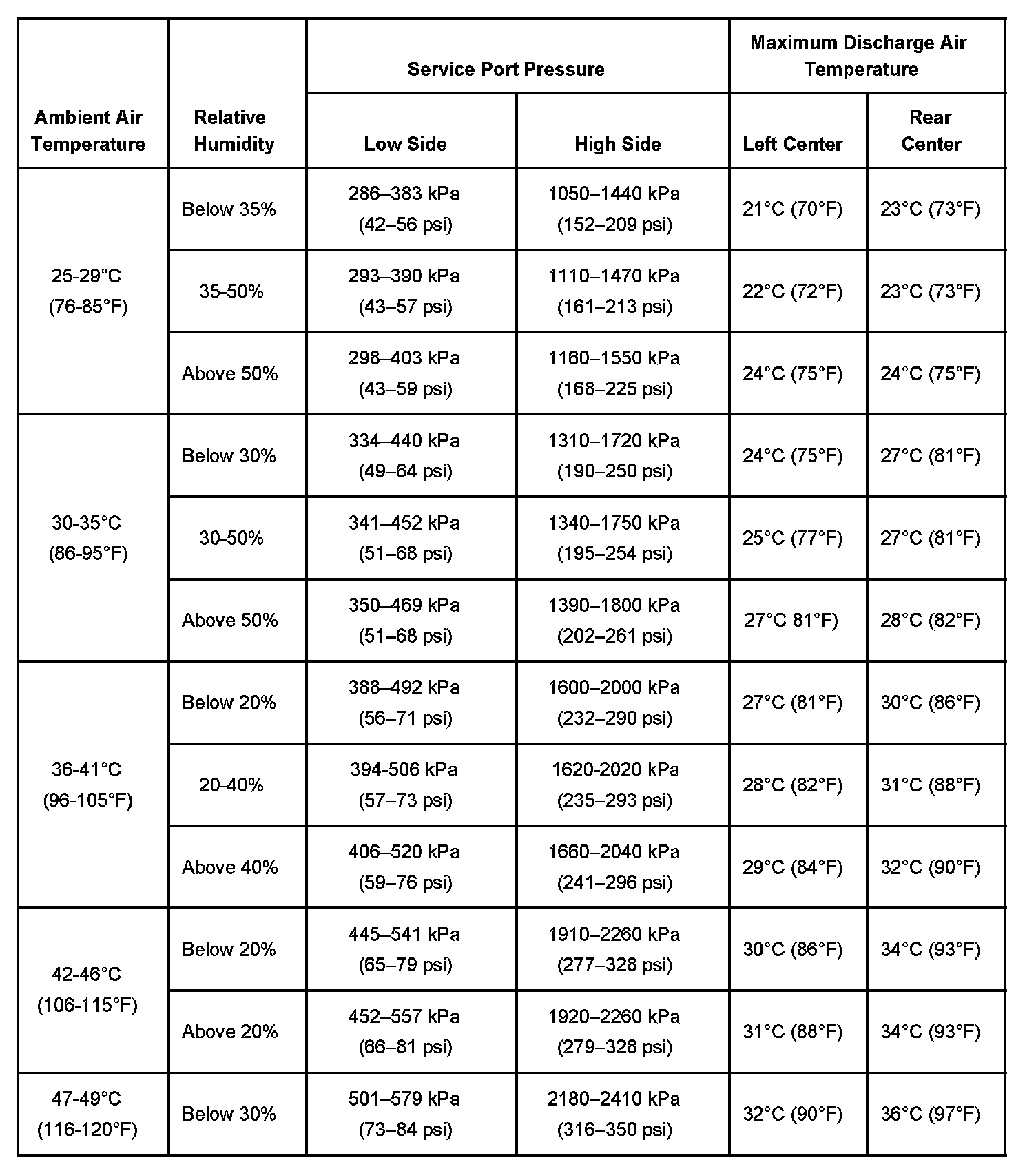

A/C Performance Table - With Rear A/C Part 1:

A/C Performance Table - With Rear A/C Part 2:

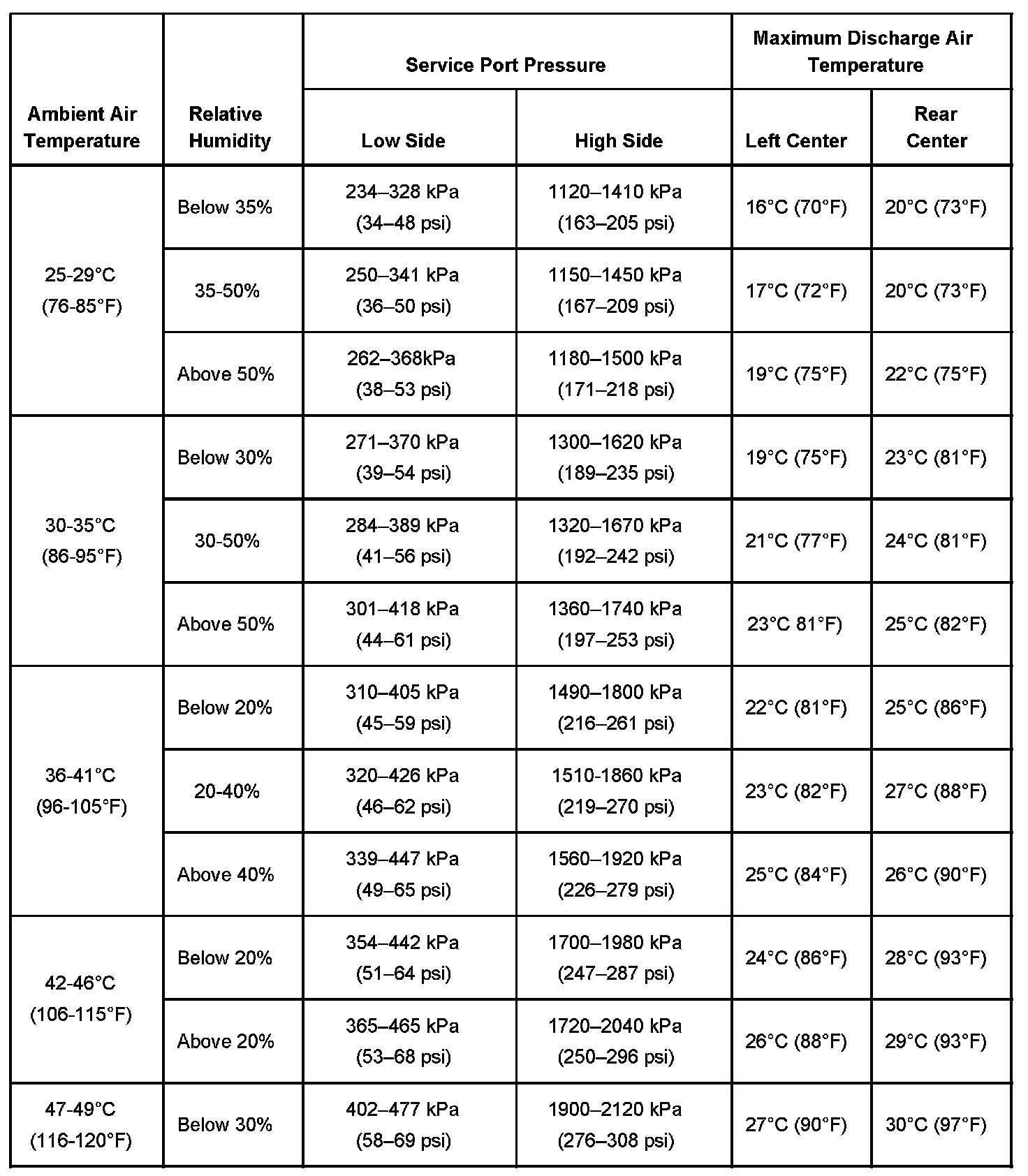

A/C Performance Table - With Rear A/C VB Part 1:

A/C Performance Table - With Rear A/C VB Part 2:
