Powertrain Control Module (PCM)

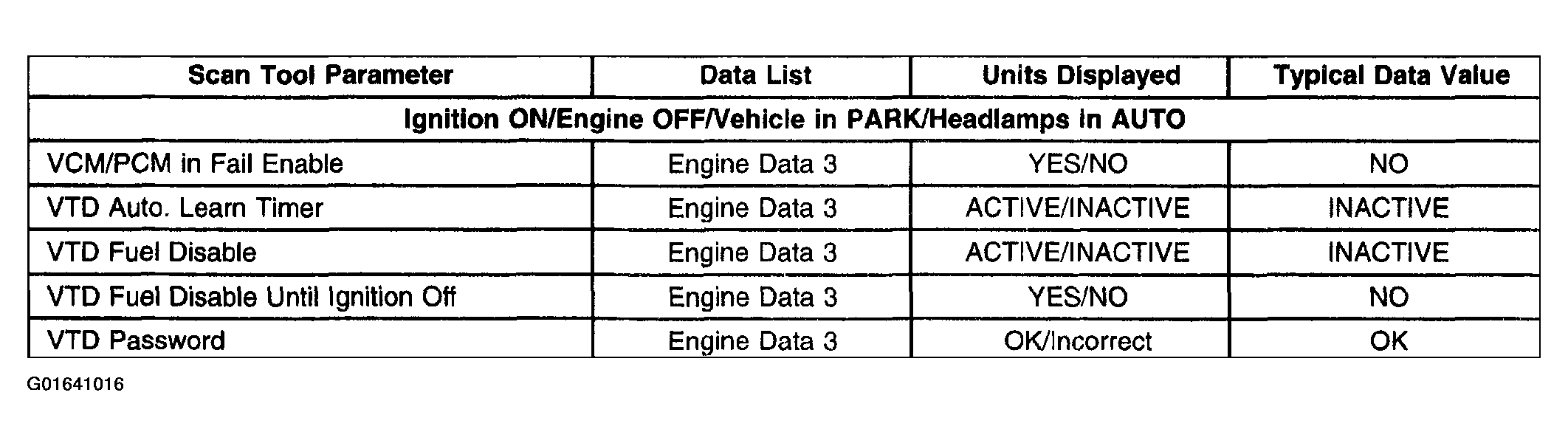

Fig 1: Powertrain Control Module (PCM) - Scan Tool Data Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
