Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) Connector C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

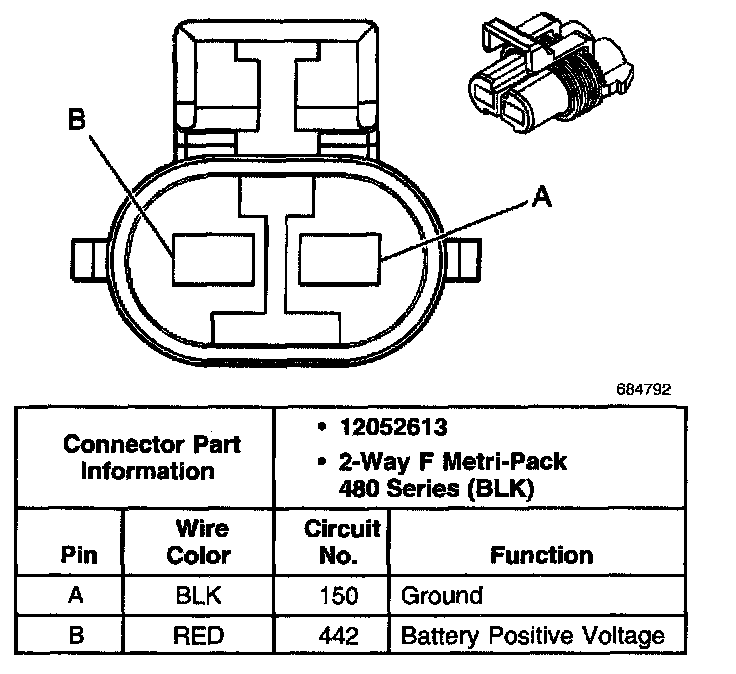

Electronic Brake Control Module (EBCM) Connector C2
