Transmission Control Systems

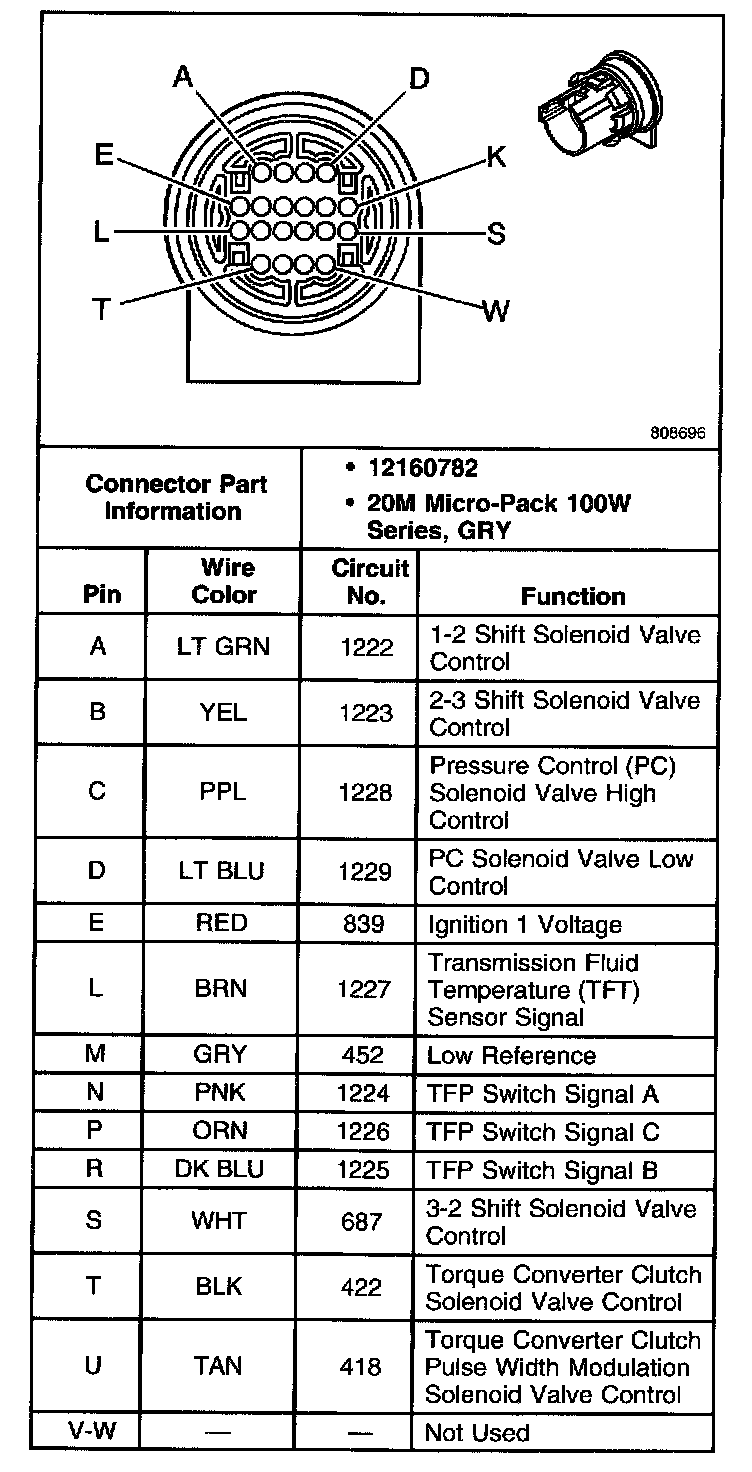

At Inline 20-Way Connector, Engine Side (Part 1 Of 2):

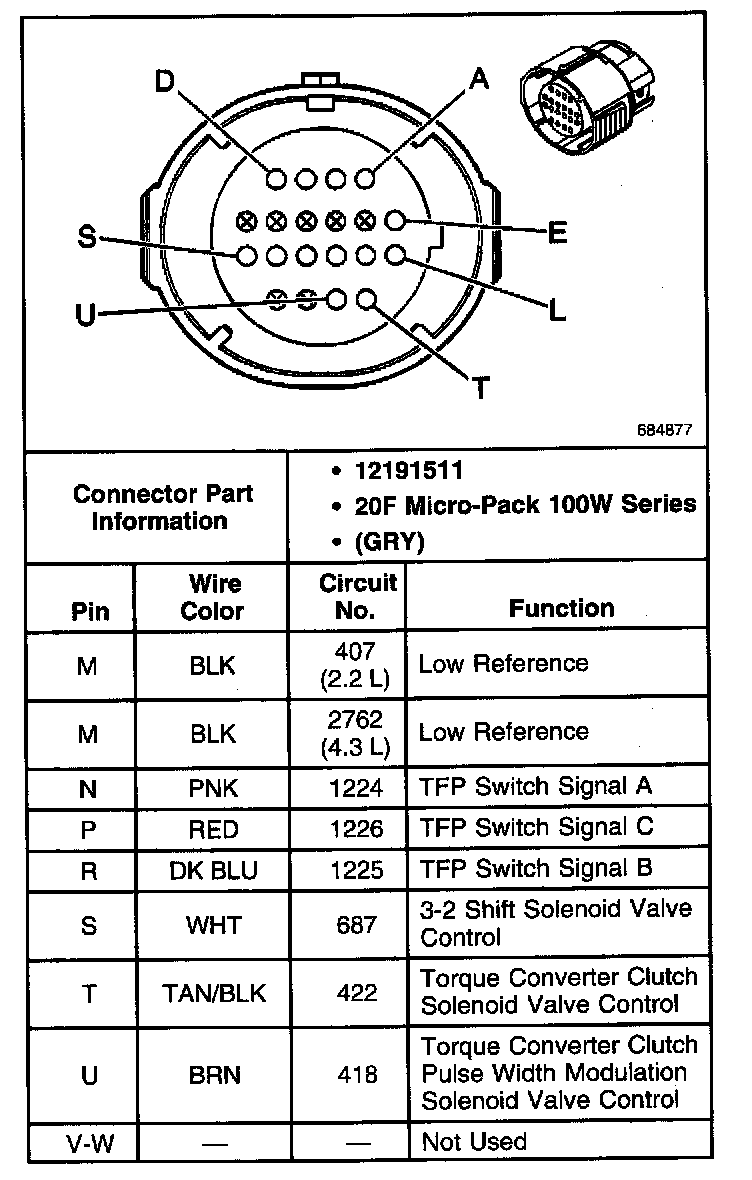

At Inline 20-Way Connector, Engine Side (Part 2 Of 2):

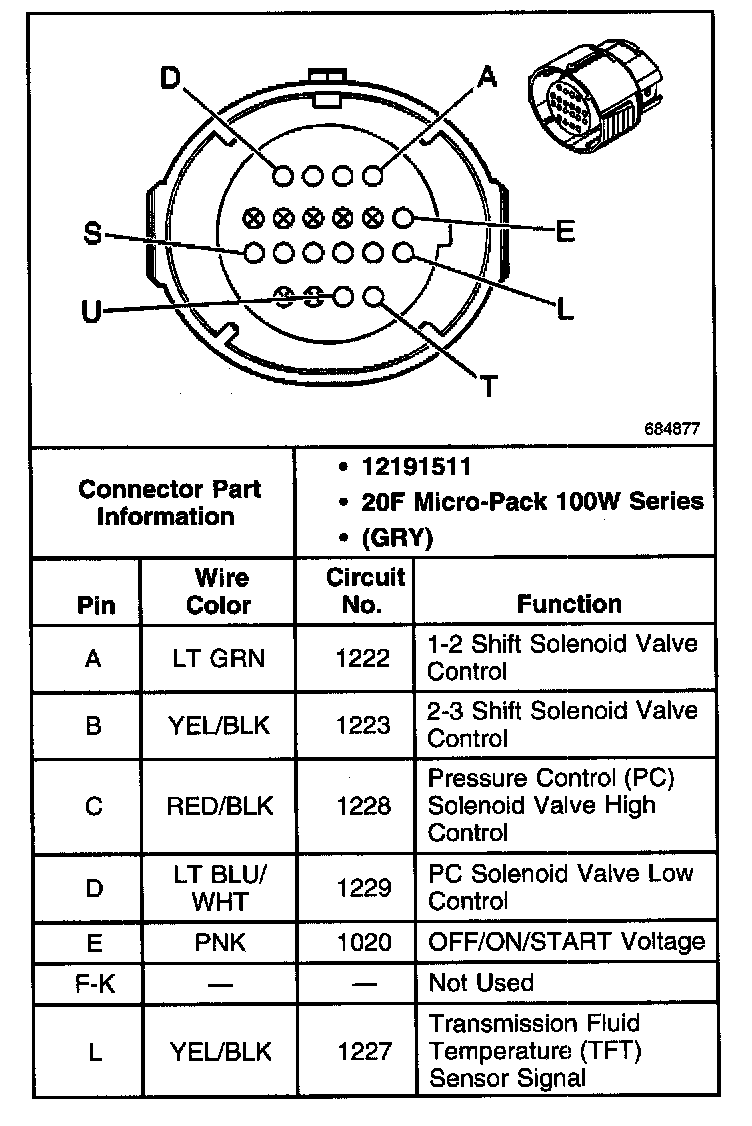

Transmission Range Switch Connector, Wiring Harness Side:



Automatic Transmission Preference (Tow/Haul) Switch Connector (Utility w/Floor Shift-Except Envoy):



Transmission Range Switch Connector, Wiring Harness Side:
